2016-2023 Mazda CX-9 Radiator & Coolant Leaks: Is It the Radiator or the Cracked Cylinder Head?

Is Your Coolant Leak the Radiator or Something More?

Symptoms of a Failing Radiator

If you've ruled out the cylinder head issue, here are the common signs that your CX-9's radiator is failing:

• Engine Overheating: The most obvious sign. If your temperature gauge climbs into the red, or you get a high engine temperature warning, the cooling system is not working correctly.
• Visible Coolant Leaks: Puddles of bright green, pink, or orange fluid under the front of your parked car are a sure sign of a leak. For the CX-9, the radiator commonly leaks from the seams where the plastic side tanks are crimped onto the aluminum core.
• Low Coolant Level: You may frequently need to add coolant to the overflow reservoir. A slow leak might not leave a puddle but will require constant top-offs.
• Discolored or Sludgy Coolant: The coolant in the reservoir should be a bright, translucent color. If it looks rusty, brown, or oily, it indicates internal corrosion in the radiator or contamination from other systems. This sludge can clog the radiator's narrow passages, reducing its efficiency.
• Bent or Damaged Fins: The delicate fins on the front of the radiator can be easily damaged by road debris. While a few bent fins are okay, significant damage can block airflow and reduce cooling performance.

Known Issues, TSBs, and Recalls

As mentioned, the primary known issue related to the cooling system is not the radiator itself but the engine.

TSB 01-002-23a: Cracked Cylinder Head Coolant Leak

This is the most critical issue for owners of 2016-2020 CX-9s with the 2.5L Turbo engine to be aware of.

• Problem: Stress from the heating and cooling of the heavy exhaust manifold can cause hairline cracks to form in the aluminum cylinder head where it bolts on.
• Symptoms: A slow leak of coolant that drips down the back of the engine block. Owners often notice a sweet smell after driving or see the coolant level in the reservoir slowly dropping.
• Solution: Mazda's official repair is to replace the cylinder head with a modified part. Under Customer Service Program (CSP11), Mazda has extended the warranty to cover this specific repair for up to 10 years or 120,000 miles from the vehicle's in-service date. If you suspect this issue, do not pay for a repair without first contacting a Mazda dealer to check your VIN for eligibility.
🎬 See details on Mazda's warranty extension for this repair.

Water Pump Seepage (Service Alert SA-035-24)

Some owners may notice light green or white crusty residue near the water pump. Mazda has stated that a small amount of steam escaping from the pump's weep hole, which then dries, can be normal. The official guidance is to only replace the water pump if there is crystallized buildup or active, wet leakage. If you only see a light stain and your coolant level is stable, it may not require immediate replacement.

Recalls

There are no safety recalls for the radiator or cooling system on the 2016-2023 Mazda CX-9. Recalls that have been issued for this generation are for unrelated issues like faulty seat mechanisms or steering components.

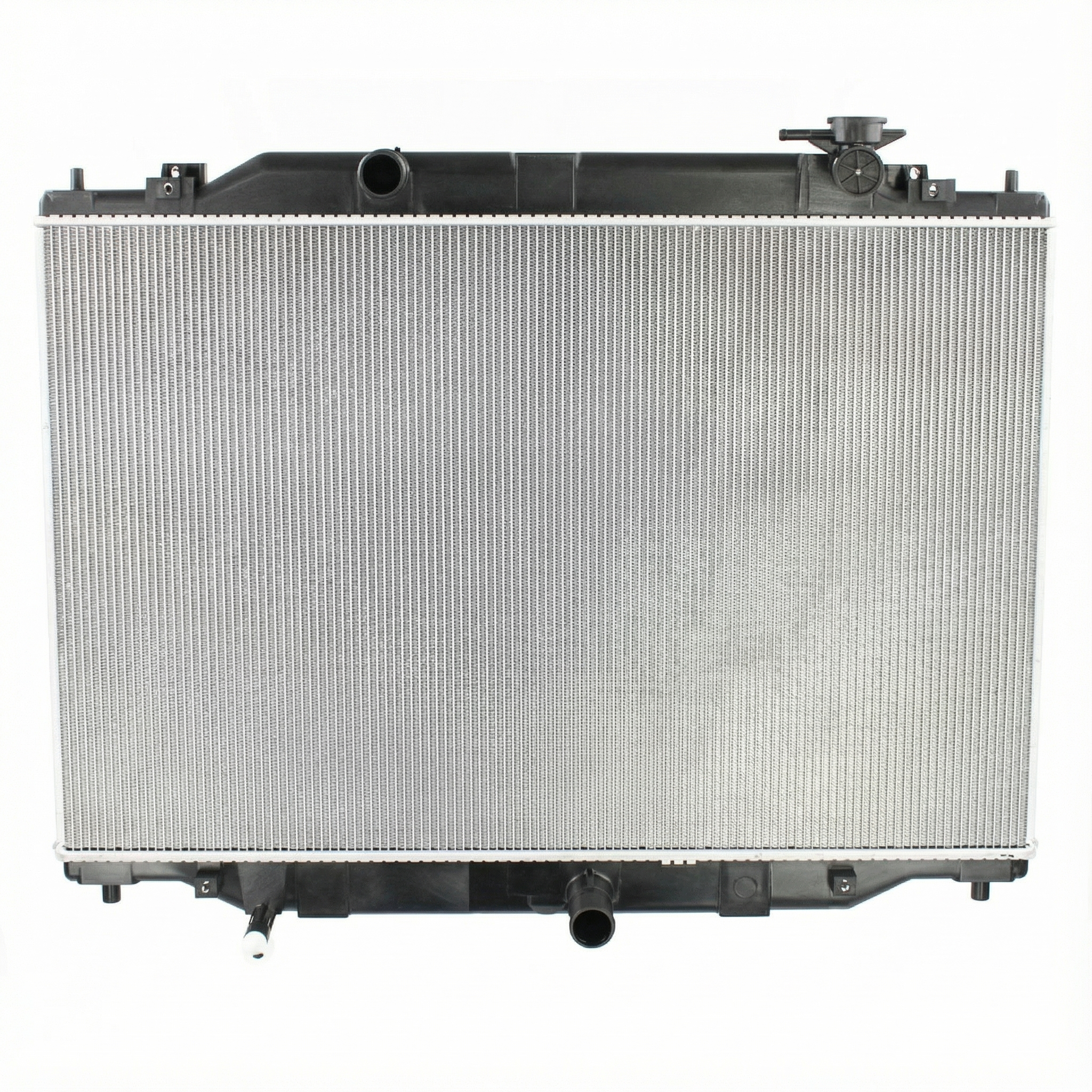

Buying a Used Radiator for Your 2016-2023 CX-9

A recycled OEM radiator is an excellent, cost-effective alternative to expensive new parts. Since the radiator itself is not a common premature failure point, a good used unit from a lower-mileage vehicle can provide years of reliable service. Here’s what to look for:

• Physical Inspection: Carefully examine the entire radiator. Look for any cracks, especially in the plastic end tanks where the upper and lower hoses connect. Check the seams where the plastic tanks meet the aluminum core for any signs of leakage (white or colored crusty residue).
• Check the Fins: Ensure the cooling fins are mostly straight. A few bent fins are normal, but large areas of crushed fins will reduce cooling efficiency.
• Look Inside: Peek inside the inlet and outlet ports. Avoid any radiator that has thick, sludgy, or rusty-looking deposits, as this indicates it was used with contaminated coolant or may be clogged internally.
• Verify Compatibility: Ensure the part numbers match. The primary OEM part numbers are PY8V15200 and PY8W15200. While they may look identical, stick to the correct part for your vehicle to ensure all mounting points and hose connections are correct.
• Ask About the Donor Vehicle: If possible, find out why the donor vehicle was taken off the road. A radiator from a vehicle with front-end damage should be inspected with extra care. A part from a vehicle with a known good engine is ideal.

Replacement Information

Replacing the radiator on a 2016-2023 CX-9 is a moderately difficult job that is feasible for an experienced DIY mechanic.

• Difficulty: 3 out of 5
• Estimated Time: 3-5 hours
• Related Parts to Replace: It is highly recommended to replace the upper and lower radiator hoses, the thermostat, and the radiator cap at the same time. These are inexpensive parts that wear out and can cause a failure soon after a radiator replacement.
• Coolant: Use only Mazda FL-22 long-life coolant. Do not mix with other types of antifreeze, as this can cause corrosion and damage to the cooling system.

Cost Comparison

Note: Costs are estimates and will vary based on location, supplier, and vehicle condition. Total replacement cost at an independent shop often ranges from $650 to $950.
