2020-2025 Corvette Radiator Support: A Guide to the C8's Structural Front Frame

Understanding the C8 Corvette's Integrated Front Structure

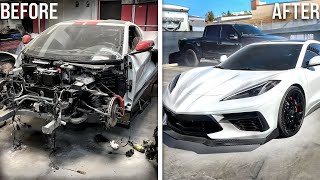

Unlike many vehicles where the radiator support is a bolt-in component, the C8 Corvette platform integrates this structure directly into the main chassis. It is part of the car's aluminum space frame, which is a complex assembly of hydroformed tubes, extrusions, and castings joined by advanced adhesives, fasteners, and welds. This design creates a very stiff, lightweight chassis, which is essential for the Corvette's high performance. 🎬 Watch a full recap of rebuilding a wrecked C8 Corvette. Consequently, any damage to the radiator support is considered frame damage. Repair is not a matter of unbolting parts; it involves cutting away the damaged section of the frame and welding or bonding a new section in its place.

Symptoms of a Damaged Radiator Support

Because this is a structural frame component, any symptoms of failure will almost certainly be the result of a front-end collision. It is not a part that fails from normal wear and tear.

• Visible Front-End Damage: This is the most obvious sign. Any impact to the front of the car has the potential to damage the radiator support structure.
• Misaligned Body Panels: If the hood, fenders, or front bumper cover are out of alignment, have uneven gaps, or do not sit flush, it's a strong indicator of a bent or shifted radiator support.
• Hood Latch and Headlight Issues: Difficulty closing or latching the hood is a common symptom. Headlights that appear crooked or aimed incorrectly can also point to a deformed support structure where they mount.
• Cooling System Problems: If the support is bent, it can push the radiator out of its optimal position, restricting airflow and potentially leading to overheating. In a collision, the radiator itself may be damaged, causing coolant leaks.
• Abnormal Noises: While driving after a minor impact, you might hear creaking or rattling sounds from the front of the car, indicating a cracked or loosened support structure.

Buying a Used 2020-2025 Corvette Radiator Support

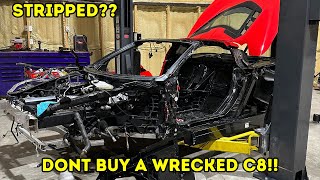

Purchasing a used radiator support for a C8 Corvette means you are buying a cut section of a frame from a recycled vehicle. This is a common practice for major collision repairs, but it requires extreme care and inspection. Since GM restricts the sale of new structural components to certified shops, a used OEM section is often the only path for repair for non-certified individuals 🎬 See why GM makes it difficult to source structural parts. or shops working with a certified welder.

Inspection Checklist for a Used Frame Section:

• Verify the Cut Points: Ensure the frame section was cut in the correct locations as specified by GM's official repair procedures. The body shop performing the repair will need enough extra material on the replacement part to work with. The cuts should be clean and straight.
• Check for Previous Repairs: Meticulously inspect the entire piece for any signs of prior work. Look for weld beads that don't look factory, evidence of body filler, grinding marks, or fresh paint trying to hide a repair. A previously repaired frame section should never be used.
• Inspect for Cracks and Stress Marks: Examine all surfaces, especially around bends, mounting holes, and factory welds, for hairline cracks or signs of stress. Pay close attention to the cast aluminum shock towers.
• Look for Heat or Fire Damage: Check for discoloration, melted plastic components, or warped aluminum, which could indicate the donor vehicle had a fire. An eBay listing for a used Z06 front frame noted smoke residue from a cabin fire, highlighting this real-world risk. Heat can compromise the temper and strength of the aluminum.
• Confirm Part and Trim Compatibility: The C8 has different variations. Ensure the part comes from the same model (Stingray, Z06) and package (Z51, base) as your vehicle. Cooling system configurations can vary, affecting mounting points.
• Get the Donor Vehicle's VIN: If possible, get the VIN of the car the part came from. This helps verify the exact year, model, and options and can be used to check its history.

Known Issues, Recalls, and Service Bulletins

As of early 2026, there are no known recalls or technical service bulletins (TSBs) related to the structural failure of the radiator support or front frame on the 2020-2025 Corvette.

However, a safety recall (NHTSA 25V536) was issued for certain 2023-2026 Corvette Z06 and ZR1 models equipped with a left-side radiator. The issue involves fuel potentially spilling onto hot components near this radiator during refueling, increasing fire risk. The remedy involves dealers installing a shield to divert spilled fuel. This is not a failure of the radiator support itself but is relevant for owners of these specific trims.

Installation: A Job for Certified Professionals Only

The replacement of a C8 Corvette radiator support is one of the most complex repairs a body shop can perform. It is rated 5 out of 5 for difficulty and is not feasible for DIY mechanics.

The process involves:

1. Placing the vehicle on a frame machine or jig to ensure it is held in the correct dimensions.
2. Carefully measuring and cutting out the damaged frame section according to GM's precise guidelines.
3. Preparing both the new part and the existing frame for joining. This often involves grinding specific bevels for welding.
4. Using a combination of specialized structural adhesives, flow-drill screws, rivets, and pulsed MIG welding to install the new section.
5. Constantly measuring throughout the process to ensure the chassis alignment remains within factory tolerances of just a few millimeters.

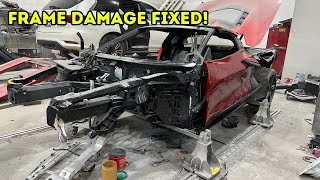

🎬 Watch a professional technician fix C8 Corvette frame damage.
