1998-2010 VW Beetle Radiator Support: Why It Breaks and How to Replace It
A complete guide to diagnosing, replacing, and sourcing a used radiator core support for your New Beetle, focusing on common failure points and critical compatibility warnings.
- This part is a large plastic assembly, also called a 'lock carrier', that is prone to cracking from minor front impacts.
- It is critical to verify compatibility: this part fits Hatchback models only, and will NOT fit Convertibles or the Turbo S submodel.
- Replacement is a complex, 4-6 hour job that requires removing the entire front bumper, headlights, and disconnecting cooling and A/C systems.
- When buying a used part, inspect all mounting points for the headlights and radiator for hairline cracks or stress marks.
Symptoms of a Failing Radiator Support
A damaged radiator support on a VW Beetle can cause a variety of issues, many of which may seem unrelated at first. Because this single plastic component is responsible for holding the entire front end of the car together, a failure can have widespread effects.
Most Common Symptoms:
- Misaligned Hood or Headlights: One of the most common signs is a hood that is difficult to close or won't latch properly. You may also notice that the headlights appear loose, point downwards, or have uneven gaps around them.
- Poor Panel Gaps: Look for inconsistent or wide gaps between the bumper, fenders, and hood. A bent or cracked support will throw off the alignment of all front body panels.
- Visible Cracks or Damage: Any frontal impact, even a minor bump against a parking curb, can crack the plastic support. A visual inspection with a flashlight, especially around the bottom and the mounting points for the headlights and radiator, will often reveal the damage.
- Engine Overheating: If the support is broken, it can allow the radiator and cooling fans to shift out of position. This can reduce airflow or, in severe cases, cause the fan to contact the radiator, leading to coolant leaks and overheating. 🎬 Learn more about identifying the symptoms of a bad radiator.
- Rattling or Clunking Noises: A loose or broken support can cause components like the radiator or A/C condenser to rattle around, especially when driving on bumpy roads.
Buying a Used Radiator Support: What to Check
Given the high cost of a new OEM part, a used OEM radiator support is a smart choice for many owners. However, because this part is made of plastic and is critical to the vehicle's structure, careful inspection is essential.
Compatibility Warning: This radiator support fits 1998-2010 Volkswagen Beetle Hatchback models ONLY. It will not fit Convertible models due to differences in body rigidity and structure. It also does not fit the Turbo S submodel, which has a different front-end configuration to accommodate a larger intercooler.
Inspection Checklist:
- Check All Mounting Points: Carefully examine the areas where the headlights, radiator, and hood latch bolt on. These are high-stress areas. Look for hairline cracks, stress marks (which appear as white, faded lines in the plastic), or any signs of previous repairs.
- Inspect the Lower Section: The bottom of the support is most prone to damage from curbs and road debris. Check for any cracks, breaks, or pieces that are missing entirely.
- Verify Straightness: Place the support on a flat surface to check for warping. A twisted or bent support will make it impossible to align the front-end panels correctly.
- Confirm All Tabs are Intact: Many smaller components clip onto the radiator support. Ensure all small plastic tabs and clip receivers are present and not broken off.
Pro Tip: A used OEM support is often a better choice than a cheap, new aftermarket part. Used OEM parts guarantee factory fitment, meaning all the bolt holes will line up perfectly. Aftermarket supports can sometimes have slight variations that make installation difficult, requiring you to elongate holes or fight with panel alignment.
Known Issues, Recalls, and TSBs
There are no specific recalls or Technical Service Bulletins (TSBs) from Volkswagen for the radiator support itself cracking. Failures are almost always due to external factors like collisions or road debris.
However, several recalls were issued for the 1998-2010 Beetle for issues with faulty brake light switches, which are unrelated to the radiator support. A recall in 2010 for a small batch of vehicles failing to meet barrier crash test requirements also occurred, but this was resolved by VW repurchasing the vehicles and is not a repairable issue.
Replacement Overview and Difficulty
Replacing the radiator support on a VW Beetle is a labor-intensive job that requires disassembling the entire front of the car.
- Difficulty Rating: 4 out of 5 (for experienced DIYers)
- Estimated Time: 4-6 hours
- DIY Feasible: Yes, for those comfortable with extensive disassembly.
The general process involves:
- Removing the front bumper cover and metal bumper beam.
- Removing the headlights.
- Draining the coolant and disconnecting the radiator hoses. 🎬 See how to properly remove and replace the radiator.
- Evacuating the A/C system (requires specialized equipment) and disconnecting the condenser lines.

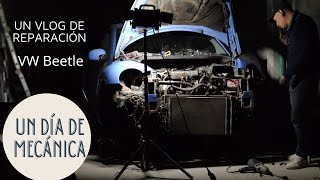

- Unbolting the lock carrier assembly from the frame rails and sliding it forward. 🎬 Watch this step-by-step guide to replacing the radiator support.
- Transferring all components (radiator, fans, condenser, latch, etc.) to the new support.
- Reassembling in reverse order.
A detailed video from 1A Auto shows the complexity of the process, which involves many small connectors and clips that must be carefully disconnected.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $190 - $275 |
| New Aftermarket | $90 - $180 |
| Used OEM | $75 - $150 |
| Shop Labor Cost | $400 - $700 |
Frequently Asked Questions
What is a 'lock carrier' and is it the same as a radiator support?
Yes, on Volkswagen models, the radiator support is commonly referred to as the 'lock carrier'. It's the same part that holds the radiator, headlights, and hood lock mechanism.
Can I repair a cracked plastic radiator support?
It is not recommended. The radiator support is a structural component of the vehicle's front end. While plastic welding is possible, it's unlikely to restore the original strength and rigidity required for proper component alignment and safety in a collision. Replacement is the only safe and effective repair.
Do I have to discharge my A/C to replace the radiator support?
Yes, in most cases. The A/C condenser is mounted directly to the radiator support. To fully remove the support, the A/C lines must be disconnected, which requires the system to be professionally evacuated by a licensed technician to comply with environmental laws.
Why won't this part fit my Beetle Convertible?
The Beetle Convertible has additional body reinforcements to compensate for the lack of a fixed roof. This changes the mounting points and overall structure of the front end, requiring a different radiator support (Part #1Y0805588C for 2003-2010 models). The hatchback version will not fit.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1C0805594B 1C0805594C 1C0805594R 1C0805594S
Material: Plastic composite. Function: Mounts radiator, A/C condenser, fans, headlights, and hood latch.
