2008-2013 Highlander Rear Window: Defroster Faults, Strut Failure, and Replacement Guide

Symptoms of a Failing Rear Window Glass

While outright breakage is the most obvious failure, other issues can arise with the 2008-2013 Highlander's rear window assembly. Recognizing these symptoms early can help in diagnosing the problem correctly.

1. Rear Defroster Not Working or Partially Working

One of the most common non-breakage failures is a malfunctioning rear defroster. You might notice that the entire grid fails to heat up, or that only some of the horizontal lines clear the frost. This is often caused by a break in the delicate grid lines printed on the glass, which can be damaged by scraping ice or shifting cargo. Other causes include a blown fuse, a bad relay, or a detached electrical tab at the side of the glass.

2. Glass Fails to Stay Up

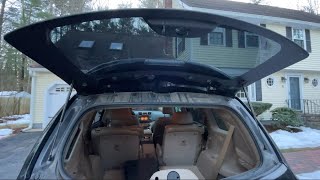

If you open the rear glass and it immediately falls back down, the gas support struts have failed. These struts are filled with pressurized gas that leaks out over time, losing their ability to support the weight of the glass. This is a common wear-and-tear item.

3. Difficulty Opening or Latching the Glass

Issues with the latch mechanism or rusted support struts can make the glass difficult to open. Sometimes a strut can seize, preventing the glass from opening more than an inch or two. 🎬 See this guide on fixing a stuck rear hatch window Misalignment of the latch and striker can also cause closing problems.

4. Visible Cracks, Chips, or Scratches

Impact from road debris, accidents, or even thermal stress can cause the tempered glass to crack or shatter. Even small chips can compromise the integrity of the glass and may spread over time.

Known Issues, TSBs, and Recalls

As of early 2026, there are no specific recalls from the National Highway Traffic Safety Administration (NHTSA) for the rear window glass itself on the 2008-2013 Toyota Highlander. However, some related issues have been noted:

• Power Back Door Operation: Toyota issued Technical Service Bulletin T-SB-0191-17 for 2008-2013 Highlanders concerning the power back door not closing properly, sometimes reversing after closing or making a clunking noise. While this TSB addresses the main liftgate and not the glass specifically, issues with the overall hatch alignment can affect the glass seal.
• Power Window Master Switch Recall: Safety Recall C0M was issued for multiple Toyota models, including the 2008 Highlander, for a faulty power window master switch on the driver's door that could overheat. This does not affect the rear window glass directly but is a notable electrical issue for this vehicle generation.

There was a warranty enhancement program for other Toyota models (like the 4Runner) where the rear glass could break during defroster operation, but this program did not officially extend to the Highlander.

Buying a Used Rear Window Glass: What to Inspect

Purchasing a used OEM rear window glass is an excellent way to save money, but a thorough inspection is crucial to ensure you get a quality part. Here’s what to check:

1. Inspect the Defroster Grid and Tabs

This is the most critical inspection point. Carefully examine every horizontal line of the defroster grid for any visible scratches, breaks, or gaps. Even a tiny break can disable a line. Pay close attention to the two main vertical bus bars on the sides where the lines terminate. Ensure the main electrical connector tabs are firmly attached to the glass and not damaged. A detached tab is very difficult to repair reliably.

2. Check for Scratches and Delamination

Hold the glass up to a light source and look for deep scratches that could impair visibility or weaken the glass. Check the edges for any signs of delamination, where the layers of the glass appear to be separating or have a milky appearance.

3. Verify the Tint

Highlanders came with factory privacy tint (a dark gray tint embedded in the glass). Ensure the used glass matches your vehicle's tint level. Aftermarket film tint can be removed, but factory tint cannot. A mismatch will be obvious once installed.

4. Examine Attached Hardware

Inspect the areas where the hinges and support struts mount. Look for any stress fractures or damage around the mounting points. If any hardware like hinges or the latch mechanism is included, check it for excessive wear or corrosion.

5. Why Used OEM is Often Better

Choosing a used Original Equipment Manufacturer (OEM) part ensures perfect fitment and compatibility with your vehicle's liftgate opening and seals. The quality of the glass and the defroster grid on an OEM part is typically superior to cheaper aftermarket alternatives, which may have issues with distortion or premature defroster failure.

Replacement Overview

Replacing the rear window glass is a moderately difficult job that requires patience and a helper. The glass is heavy and awkward to handle alone.

Difficulty: 3 out of 5
Estimated Time: 1.5 - 2.5 hours
DIY Feasible: Yes, for those with mechanical experience.

The general steps involve:

1. Removing the interior trim panel from the upper liftgate.
2. Disconnecting the defroster electrical connector and any other wiring.
3. Supporting the glass while a helper detaches the support struts. This is often done by prying off a small metal clip with a flathead screwdriver.
4. Unbolting the two hinges at the top of the glass.
5. Carefully lifting the old glass away from the vehicle.
6. Installation is the reverse of removal. Be careful not to overtighten the hinge bolts to avoid cracking the glass.
