2000-2005 Ford Excursion Seat Belt Guide: Retractor Failures, Buckle Recalls, and SRS Warnings

Symptoms of a Failing Seat Belt Assembly

A faulty seat belt may not protect you in a crash. Pay close attention to these warning signs and address them immediately.

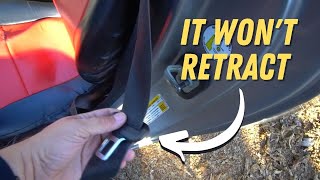

Seat Belt is Slow to Retract or Won't Retract

When you unbuckle, the belt should retract smoothly and completely. If it retracts very slowly, sags, or you have to feed it back into the retractor, the internal spring mechanism is likely worn out or dirty. This is more than an annoyance; a loose belt can create dangerous slack and may not hold you securely in an accident.

Difficulty Pulling the Belt Out or It Locks Unexpectedly

If you have to fight to pull the belt out, or if it constantly locks up during normal, slow extension, the retractor's locking mechanism is failing. This can be caused by internal wear or debris. A forum user with a 2000 Excursion reported their second-row seat belt became completely stuck in the retracted position and would not extend at all. This renders the seat unusable and unsafe.

Visible Damage to the Webbing

Inspect the entire length of the belt webbing for fraying, cuts, tears, or excessive wear. Damaged webbing is significantly weaker and can snap under the immense force of a collision. This is a critical failure point that requires immediate replacement.

SRS Airbag Warning Light is On

The seat belt pretensioners are connected to the vehicle's Supplemental Restraint System (SRS). If the SRS computer detects a fault in the pretensioner's electrical circuit, a damaged sensor, or if the pretensioner has been deployed, it will illuminate the SRS warning light on your dashboard. When this light is on, you should assume the entire airbag and pretensioner system is disabled and will not function in a crash.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

NHTSA Recall 01V227001: Front Seat Belt Buckle May Not Latch

Ford issued a major safety recall for certain 2000-2001 Ford Excursions concerning the front outboard (driver and passenger) seat belt buckles. The buckles, supplied by TRW, could fail to latch properly. In the event of a crash, an unlatched or partially latched buckle could fail, leading to a significantly increased risk of injury. The official remedy was for Ford dealers to inspect the front buckles and replace them if necessary. While this recall does not apply to the second-row seats, it is a critical safety issue for any owner of a 2000-2001 model.

Professional Installation and SRS System Requirements

Legal and Liability Risks of DIY Installation

Installing used, counterfeit, or non-functional SRS components is illegal in many states and carries significant liability risks. A used seat belt assembly that has been through a collision may have a deployed pretensioner, which is considered non-functional. Installing such a part knowingly can lead to fines and even jail time. For this reason, most professional repair shops will refuse to install a used seat belt assembly provided by a customer due to the extreme liability.

Resetting the SRS System After Replacement

After a faulty seat belt component is replaced, the SRS light may turn off on its own once the system's self-check is complete. However, if the light remains on, the fault codes stored in the SRS control module must be cleared with a professional OBD-II scan tool. If the vehicle was in an accident and the pretensioners deployed, the SRS module will have stored "crash data." This data cannot be cleared with a standard scanner; the module must be professionally reset by a specialist service or replaced entirely.

Buying a Used 2000-2005 Excursion Seat Belt Assembly

Buying a used OEM seat belt can be a cost-effective solution, but careful inspection is mandatory to ensure you are getting a safe, functional part. Avoid cheap, new aftermarket units, as their quality and compliance with federal safety standards can be questionable.

How to Inspect a Used Seat Belt Assembly:

• Check for Pretensioner Deployment: This is the most important check. If the belt has a pretensioner (a cylindrical tube integrated into the retractor assembly), inspect it closely. A deployed pretensioner will often look compressed, crinkled, or have a visible yellow or black indicator showing. DO NOT buy a belt with a deployed pretensioner; it is useless.
• Inspect the Webbing Thoroughly: Pull the entire length of the belt out from the retractor. Look for any signs of fraying, cuts, melted spots, or chemical stains. Bend the webbing back on itself to reveal hidden wear. Any damage means the belt is unsafe.
• Test the Retractor Function: Hold the assembly in its normal installed orientation. Pull the belt out slowly; it should be smooth. Give it a sharp, quick tug; it must lock instantly. Release it and ensure it retracts completely and with good speed. If it's slow, sticky, or noisy, the mechanism is worn.
• Examine the Electrical Connector: If the belt has a pretensioner, inspect the electrical connector and wiring pigtail. Ensure there are no cut wires, broken plastic, or corroded pins.
• Verify Compatibility: The part numbers for the driver (LH) and passenger (RH) side second-row seats are YC3Z-78611B68-AAC and YC3Z-78611B69-AAC, respectively. They are not interchangeable. Also, ensure the color (Pebble/Tan, Gray, etc.) matches your interior.
