2018-2025 Camry, Corolla, Prius & GR Corolla Seat Belt Assembly: SRS Lights, Recalls & Replacement
An in-depth guide to diagnosing, replacing, and safely buying a seat belt assembly for your Toyota, including critical SRS warnings and compatibility checks.
- PROFESSIONAL INSTALLATION IS REQUIRED. Seat belt assemblies contain an explosive pretensioner and are a critical safety component. Incorrect installation can be fatal.
- If the SRS/airbag light is on, your entire airbag system is DISABLED. The cause must be diagnosed and repaired immediately.
- After a crash, you must replace the deployed seat belt assembly AND have the SRS control module professionally reset to clear crash data.
- For Camry and Corolla models, check if your VIN begins with 'J' (Japan-built) before ordering, as parts may differ from North American-built vehicles.
Symptoms of a Failing Seat Belt Assembly
A faulty seat belt is a major safety risk. If you notice any of these symptoms in your 2018-2019 Toyota Camry, 2019-2025 Toyota Corolla, 2019-2025 Toyota Prius, or 2023-2025 Toyota GR Corolla, the assembly needs immediate attention.
- SRS or Airbag Warning Light is On: This is the most common sign of a problem. After an accident, the seat belt pretensioner deploys and locks the belt. This breaks an electrical circuit, telling the car's computer that the belt has been used and must be replaced. The SRS light will stay on, and the entire airbag system will be disabled until the belt is replaced and the SRS module is reset.
- Slow or No Retraction: The belt webbing fails to pull back into the pillar when you unbuckle it. This can be caused by a weak or worn-out spring inside the retractor mechanism or by dirt and debris clogging the system. A loose belt will not properly restrain you in a crash.
- Visible Webbing Damage: Inspect the entire length of the belt for cuts, deep fraying, or melted spots. Damage from pets, getting caught in the door, or from an accident weakens the material and means it can snap under pressure.
- Belt is Locked and Will Not Extend: If the vehicle has been in a collision, the pretensioner will have fired, permanently locking the retractor. The seat belt is now a single-use item and must be replaced.
- Faulty Buckle or Warning Chime: The seat belt warning chime may sound even when the belt is buckled, or it may not sound when unbuckled. This can indicate a problem with the sensor inside the buckle. For the GR Corolla and other Corolla models, some owners report issues with the rear seat belt alarm activating incorrectly, which may be a sensor or software glitch.
Warning: An illuminated SRS/airbag light means your entire airbag system is disabled. In a crash, your airbags will NOT deploy. Do not ignore this warning light.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
Several recalls have been issued that affect the seat belt systems on these vehicles. You can check if your specific vehicle is affected by entering your VIN on the Toyota Recall website or the NHTSA website.
- 2020 Toyota Corolla & Corolla Hybrid (NHTSA Campaign 19V890000): A recall was issued for certain 2020 Corolla models due to an issue with the rear seat belt assemblies. An incorrectly installed spring in the dual-mode locking mechanism could prevent the belt from locking as intended during certain types of crashes. Dealers will inspect the production date on the seat belt label and replace the assembly if it falls within the affected range.
- 2019 Toyota Camry (New Zealand Recall): A similar recall was issued for 2019 Camry models built between August and October 2019 for a potential rear seat belt locking mechanism failure. While this was a foreign recall, it points to a potential issue for vehicles from this period.
- 2023-2025 Toyota GR Corolla & other Corolla Models: Owners have reported a recurring issue where the rear seat belt reminder alarm activates, indicating a passenger is unbuckled in the back seat when the seats are empty. This appears to be a known sensor or software issue that a dealer may be able to address by disabling the rear seat reminder through the vehicle's settings.
Buying a Used Seat Belt Assembly: What to Look For
Buying a used OEM seat belt assembly is a cost-effective option, but it requires careful inspection. A faulty or previously deployed used part is not just a waste of money—it's incredibly dangerous.
CRITICAL: NEVER Install a Used Seat Belt From a Wrecked Vehicle. The pretensioner is an explosive, one-time-use device. If it has been fired in an accident, the belt is useless and will not protect you. There is often no visible sign of deployment other than a locked belt.
Inspection Checklist:
- Verify Non-Deployment: The most important step. The seller must guarantee the part came from a non-wrecked vehicle. Ask for the VIN of the donor car to run a history report if possible.
- Check the Webbing: Pull the belt all the way out. Look for any cuts, fraying, discoloration, or stiff/melted areas. Run your hands along both edges. Any damage means the belt should be rejected.
- Test the Retractor: Hold the assembly upright and pull the belt out smoothly. It should extend without catching. Let it go; it should retract quickly and completely. Tilt the assembly sharply as if in a sudden stop; the mechanism should lock and prevent the belt from extending further.
- Inspect the Electrical Connector: Check the plastic connector and wiring for the pretensioner. Ensure it is not cracked, corroded, or have any cut wires.
- Match the Part Exactly: Compare the used part to your original. Pay close attention to the mounting points, the color, and the electrical connector to ensure it's a perfect match.
Pro Tip: An alternative to buying used is having your original, deployed seat belt remanufactured. Specialized services can replace the explosive pretensioner and internal components, restoring it to OEM standards. This guarantees you have the correct part for your vehicle and that it has not been previously deployed.
Professional Installation and SRS System Reset
Warning: Professional Installation is Required. A seat belt assembly contains an explosive charge and is a critical part of the SRS system. Improper installation can lead to system failure or accidental deployment, causing serious injury. The pretensioner is also considered a hazardous material for shipping purposes.
Replacing a seat belt assembly is more than just a mechanical parts swap. It is a safety system repair.
- SRS Module Reset: After a seat belt pretensioner is deployed in an accident, the vehicle's SRS Airbag Control Module (ACM) stores permanent "crash data." This data will keep the airbag light on and the entire SRS system disabled, even after the physical parts are replaced. This crash data CANNOT be cleared with a standard OBD2 scanner. The module must be sent to a specialist for a reset service or replaced with a new, properly programmed unit.
- System Calibration: Once the new belt is installed and the SRS module is reset or replaced, a diagnostic scan tool must be used to ensure all sensors are communicating correctly and there are no remaining fault codes in the system.
Compatibility Warning: Japan-Built vs. North American-Built
Check Your VIN Before Ordering. For Toyota Camry and Corolla models, there can be different seat belt parts for vehicles built in Japan versus those built in North America (USA, Canada, Mexico). To ensure you get the correct part, check the first character of your vehicle's 17-digit VIN.
- If the VIN starts with a 'J', your vehicle was built in Japan.
- If the VIN starts with a '1', '2', '3', '4', or '5', your vehicle was built in North America.
You can find the VIN on a plate on the driver's side of the dashboard (viewable through the windshield) or on a sticker inside the driver's door jamb. Ordering the wrong part may result in different mounting points or electrical connectors.
Cost of Replacement
The cost to replace a seat belt assembly can vary, but here are typical price ranges:
| Part or Service | Estimated Cost |
|---|---|
| New OEM Assembly | $250 - $400+ |
| Used OEM Assembly | $70 - $150 |
| Aftermarket Assembly | $20 - $85 (Not Recommended for SRS-equipped vehicles) |
| Remanufacturing Service | $80 - $120 (plus shipping) |
| Shop Labor (Installation) | $100 - $150 per belt |
| SRS Module Reset Service | $50 - $100 (plus shipping) |
Frequently Asked Questions (FAQ)
Can I drive my car with the airbag light on?
No. It is unsafe to drive with the airbag light on. It indicates a fault in the Supplemental Restraint System (SRS), which means the airbags and seat belt pretensioners will not activate in a crash. You are not protected by the vehicle's primary safety systems.
Can I replace just the torn fabric belt (webbing)?
No. The webbing is integrated into the retractor and pretensioner assembly. The entire unit must be replaced. Attempting to sew or repair the webbing is extremely dangerous and will fail in a crash.
Why is my seat belt so slow to retract?
Slow retraction is usually caused by two things: a weakening of the internal retractor spring over time, or an accumulation of dirt and grime on the belt and in the upper loop guide. You can try cleaning the full length of the belt with a mild soap and water solution, but if that doesn't solve it, the retractor spring is likely worn out and the assembly needs replacement.
Do I have to replace the seat belt after a minor accident if the airbags didn't go off?
Yes, most likely. The seat belt pretensioners are often designed to fire in impacts that are not severe enough to deploy the airbags. If the belt locked up during the incident and your SRS light is now on, the pretensioner has deployed and the assembly must be replaced and the SRS module reset.
Is it legal to install a used seat belt?
Laws vary, but the primary concern is safety, not legality. It is legal to install a used seat belt provided it is a fully functional, non-deployed OEM part that meets federal safety standards. However, because they contain explosive charges, handling and installation by non-certified individuals carries significant risk and potential liability. Using a part from a salvage yard is risky because its history is often unknown.
Technical Specifications

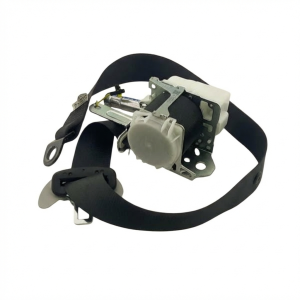

OEM Part Numbers: 7321033730C1 7321047272C5 7321047273C5
Contains a single-stage pyrotechnic pretensioner integrated with the retractor assembly. Connects to the vehicle's SRS (Supplemental Restraint System) control module.
