2011-2016 Hyundai Elantra Dash Switch: Fixing Inop Active Eco, ESC & Dimmer Buttons
This guide covers the common failures, part number variations, and simple replacement of the lower left dash switch panel that controls key vehicle functions.
- There are two different part numbers that are NOT interchangeable: 84731-3Y000 for 2011-2013 models and 84731-3XAB0 for 2014-2016 models.
- Failure of this switch will cause the buttons to stop working but will NOT cause the ESC warning light to stay on; a constant ESC light indicates a separate system fault.
- New aftermarket replacements are not readily available, making a quality used OEM part the most practical and cost-effective solution.
- Replacement is extremely easy, requiring only a trim tool and about 15 minutes, making it an ideal DIY repair.
Symptoms of a Failing 2011-2016 Elantra Dash Switch
When this switch panel fails, the symptoms are usually straightforward and not subtle. Unlike other electronic modules, a faulty dash switch typically won't trigger a Check Engine Light, but it will result in a loss of function for one or more of its buttons.
- Buttons Do Nothing: The most common symptom is that pressing a button—like Active Eco or ESC Off—has no effect. 🎬 Watch: How to properly use the traction control button guide. The function does not turn on or off, and any corresponding indicator light on the instrument cluster does not change.
- Dimmer Inoperative: The instrument panel illumination dimmer switch stops working. The dashboard lights may be stuck on the brightest or dimmest setting and cannot be adjusted.
- Physical Button Failure: The buttons themselves may feel broken. They might feel mushy, get stuck in the depressed position, or lose their distinct 'click' when pressed.
- Intermittent Operation: A button may work sometimes but not others. This can be due to worn internal contacts and often gets worse over time.
Important: A solid, continuously lit ESC (Electronic Stability Control) warning light on your dash is typically NOT a sign of a bad switch. That light indicates a fault within the stability control system itself, such as a bad wheel speed sensor or yaw rate sensor. The 'ESC Off' button on this panel is only used to manually disable the system; if the system has an active fault, the button will not function.
Known Issues, TSBs, and Recalls
There are no major recalls or Technical Service Bulletins (TSBs) specifically for the failure of this dash switch panel. Failures are generally due to normal wear and tear on the electronic components and physical buttons over time.
However, it is important to be aware of Hyundai Recall 137 (NHTSA Campaign #15V-871), which affects some 2011-2012 Elantra models. This recall addresses a malfunctioning ESC sensor that could cause unexpected braking or power loss. This is a separate issue from the dash switch itself, but it is a critical safety recall to be aware of if you have an illuminated ESC light.
🎬 See this video for troubleshooting persistent traction control dashboard lights.Part Variants and Compatibility
This is the most critical section for anyone buying this part. There are two primary versions of this switch for the 2011-2016 Elantra, and they are NOT interchangeable. The split is based on the model year facelift that occurred in 2014.
| Vehicle Years | OEM Part Number | Notes |
|---|---|---|

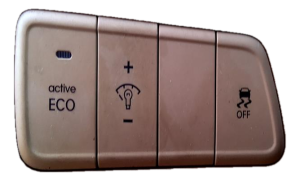

| 2011-2013 | 84731-3Y000 | Fits pre-facelift models. Controls Active Eco, ESC Off, and Panel Dimmer. |

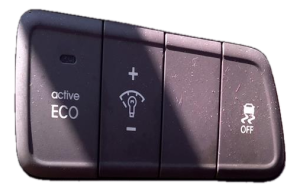

| 2014-2016 | 84731-3XAB0 | Fits facelifted models. Controls Active Eco, ESC Off, and Panel Dimmer. |
Warning: You must order the part number that corresponds to your vehicle's model year. While the switches look nearly identical and have the same functions, there are subtle differences in the wiring or mounting that prevent them from being swapped.
Buying a Used 2011-2016 Elantra Dash Switch
Since new aftermarket versions of this switch are not readily available and new OEM stock can be difficult to find, a quality used OEM switch is often the best and most practical solution.
Step 1: Verify the Part Number
Before anything else, confirm which part number you need based on your Elantra's model year (2011-2013 or 2014-2016). Purchasing the wrong one will result in a part that does not work. The part number is typically printed on a sticker on the side or back of the switch housing.
Step 2: Physical Inspection
When inspecting a used switch, check for the following:
- Button Feel: Press each button. They should move smoothly and provide a tactile click. Avoid switches with sticky or loose buttons.
- Graphics: Ensure the white graphics on the buttons (e.g., 'ACTIVE ECO') are not worn off.
- Connector Pins: Look at the electrical connector on the back. The pins should be straight, clean, and free of any corrosion or damage.
- Mounting Tabs: Check that all plastic mounting clips and tabs around the housing are intact and not broken. Broken tabs will prevent the switch from seating securely in the dashboard.
Why a Used OEM Switch is the Best Value
For this specific part, a used OEM switch is the recommended choice. New OEM units are difficult to source, and there are no common aftermarket alternatives from brands like Dorman. A used OEM switch guarantees perfect fitment, correct electronic communication with the vehicle's body control module, and original factory quality for the buttons and backlighting.
Cost Comparison
| Part Source | Estimated Cost |
|---|---|
| New OEM | $90 - $160 (Difficult to source; may be discontinued or require buying a larger dash panel assembly) |
| New Aftermarket | Not readily available |
| Used OEM | $30 - $50 |
| Shop Labor | $75 - $150 |
Dash Switch Replacement Guide (DIY Difficulty: 1/5)
Replacing this switch is a very simple job that can be done in under 15 minutes with a single tool.
Estimated Time: 10-15 minutes
Tools Needed: Plastic Trim Removal Tool
- Disconnect the Battery: As a safety precaution, disconnect the negative terminal from your car's battery.
- Pry Out the Old Switch: Insert a plastic trim removal tool into the seam between the switch panel and the dashboard. Gently pry outwards to release the clips holding it in place. Work your way around the panel until it pops free. 🎬 Watch: See the traction control switch location and operation.
- Disconnect the Connector: Pull the switch assembly out of the dash. On the back, you will see a single electrical connector. Press the release tab on the connector and pull it straight out to disconnect it.
- Connect the New Switch: Plug the electrical connector into your replacement switch. You should hear it click into place.
- Test the Functions: Before snapping the new switch into the dash, temporarily reconnect the battery. Turn the ignition to the 'ON' position and test all functions: the Active Eco button, the ESC Off button, and the instrument panel dimmer.
- Install the New Switch: Once you've confirmed it works, align the new switch assembly with the opening in the dashboard and press it firmly into place until the clips engage and it sits flush.
- Reconnect Battery: Fully reconnect and tighten the negative battery terminal.
Frequently Asked Questions (FAQ)
My ESC light is on. Will replacing this switch fix it?
Almost certainly not. The 'ESC Off' button on this panel only serves to manually disable the system. A constant ESC warning light indicates an active fault in the system itself, which needs to be diagnosed with a scan tool. Common causes include a faulty wheel speed sensor, a bad steering angle sensor, or the yaw sensor issue covered by Recall 137.
Can I install a switch with Active Eco if my car didn't come with it?
No. The Active Eco function is dependent on specific programming in the vehicle's Engine Control Unit (ECU) and Body Control Module (BCM). Simply installing the switch will not add the feature, as the underlying software is not present.
How do I know which part number I need, 84731-3Y000 or 84731-3XAB0?
The easiest way is to match it to your model year. If your Elantra is a 2011, 2012, or 2013 model, you need part number 84731-3Y000. If your Elantra is a 2014, 2015, or 2016 model, you need part number 84731-3XAB0.
Is it hard to replace this switch myself?
No, this is one of the easiest interior repairs you can do. It requires only a plastic pry tool and about 10-15 minutes. The switch is held in by clips and has only one electrical connector, making it a simple plug-and-play replacement.
Helpful Videos
Technical Specifications
OEM Part Numbers: 84731-3Y000 84731-3XAB0
Controls: Active Eco, ESC Off, Instrument Panel Illumination Dimmer. Location: Dashboard, lower left of steering wheel.
