2018-2024 Jeep Wrangler & Gladiator Headlight Switch: Knee Damage, Weird Electrical Issues, and Replacement
Diagnosing why your Jeep's lights are acting possessed and how to replace the surprisingly fragile switch module without a trip to the dealer.
- The most common cause of failure is physical damage from the driver's knee hitting the switch.
- Compatibility is critical. You must buy a switch that exactly matches the functions (Auto headlights, fog lights) of your original part.
- Strange electrical issues, like faulty turn signals or dash dimming, can be caused by a failing headlight switch sending bad data to the BCM.
- Replacement is extremely easy, requiring only a plastic trim tool and about 10 minutes.
Common Failure Symptoms
A failing headlight switch in these Jeeps often presents as more than just lights not turning on. Due to its integration with the BCM, symptoms can be confusing.
Electrical Gremlins
This is the most common failure category. Since the switch sends data signals instead of directly switching power, an internal fault can send corrupt information to the BCM. Owners report a variety of strange behaviors:
- Headlights stuck in one mode: The switch may become unresponsive, leaving the headlights permanently in the "Auto" or "On" position.
- Unresponsive buttons: The fog light button in the center of the dial may stop working entirely.
- Incorrect dash dimming: The instrument panel lights might stay in night mode (dim) even during bright daylight, or vice-versa.
- Bizarre interactions: In one documented case, turning the interior dome light dimmer wheel caused the main headlights to shut off.
- Turn signal issues: A faulty headlight switch has been found to cause turn signal malfunctions that are resolved upon replacing the switch module.
- Lights won't turn on: In some cases, the headlights won't illuminate at all, even though the dashboard indicator says they are on. This can sometimes be a precursor to a BCM fault. 🎬 Watch: 5 common reasons your Jeep headlights might be failing.
Physical Damage from Knee Impacts
The location of the headlight switch on the lower-left side of the dashboard makes it extremely vulnerable to being hit by the driver's knee when entering or exiting the vehicle. This is one of the most frequently reported problems on owner forums. The impact can cause immediate and obvious damage:
- The switch assembly gets pushed back into the dashboard.
- The rotary knob breaks or becomes loose.
- Internal plastic components shatter, causing the switch to stop working.
Water Damage
For vehicles that experience water leaks near the A-pillar or are subjected to aggressive interior cleaning, moisture can get into the switch module and cause a short circuit. This can lead to any of the electrical symptoms described above.
Pro Tip: Is it the switch or the light sensor? Many owners report that their "Auto" headlights stay on constantly, even in bright sunshine. Before replacing the switch, check the top of your dashboard near the windshield for a small, dome-shaped sensor. If this ambient light sensor is covered by a hat, phone mount, or even a piece of paper, the system will think it's dark outside and keep the headlights on. Clearing this sensor often solves the problem.
Known Issues and Recalls
Instrument Cluster Recall (NHTSA ID: 24V-652 / FCA Recall: 30B)
A major safety recall affects many 2018-2024 Wranglers and 2020-2024 Gladiators equipped with the 3.5-inch instrument panel cluster (IPC). The IPC can experience an internal short circuit, causing the entire display—including the speedometer and warning lights—to go blank without warning. While this is a failure of the instrument cluster and not the headlight switch, the official dealer repair procedure requires the removal of the headlight switch assembly to gain access to the IPC. If your vehicle is exhibiting a blank instrument cluster, you should check for this recall, as the repair will be performed free of charge by a dealer.
Buying a Used Headlight Switch: A Buyer's Guide
A used OEM headlight switch can be a smart, cost-effective purchase. These modules are generally reliable unless physically damaged, and a recycled part can offer the same performance as a new one for a fraction of the price. Here’s what to look for.
Verify Compatibility: The Most Important Step
Warning: Multiple headlight switch variants were offered on these vehicles. Compatibility depends entirely on your Jeep's factory options. Before purchasing, you must carefully compare the buttons and icons on your original switch to the photos of the replacement unit. Check for features like:
- Automatic Headlights: Does the switch have an "A" or "Auto" position?
- Fog Lights: Does the switch have the fog light icon on the center push-button?
Installing the wrong switch will result in lost features or improper function. When in doubt, provide your vehicle's VIN to the seller to confirm fitment.
Physical Inspection Checklist
- Check the Knob: The main rotary knob should feel solid with no excessive wobble. It should click firmly into each position.
- Test the Dimmer Wheels: The two vertical wheels for dash and interior lighting should rotate smoothly and have a noticeable click at their end-points.
- Inspect the Housing: Look for any cracks, especially around the mounting tabs. This is a sign of impact damage.
- Examine the Connector Port: The pins in the electrical connector port should be straight and free of any corrosion or signs of water damage.
Cost Comparison
Prices for a replacement headlight switch can vary significantly. A used OEM part often provides the best balance of quality and value.
| Part Type | Estimated Cost |
|---|---|
| New OEM (Mopar) | $70 - $110 |
| New Aftermarket | $35 - $60 |
| Used OEM | $30 - $50 |
| Shop Labor Cost | $50 - $75 |
Replacement Guide
- Difficulty: 1/5 (Beginner)
- Estimated Time: 5-10 minutes
- Tools Needed: Plastic trim removal tool
Replacing the headlight switch is one of the easiest repairs you can perform on a Wrangler or Gladiator. The entire assembly is held in by clips.
- Using a plastic trim removal tool, carefully pry around the edges of the dashboard panel that surrounds the headlight switch.
- Work your way around the panel until the clips release, then gently pull it away from the dash.
- Reach behind the panel and locate the electrical connector on the back of the headlight switch module. Press the release tab and unplug it.
- The switch module is held into the trim panel by plastic tabs. Gently release these tabs and push the old switch out from the front.
- Install the new switch by pressing it into the panel until it clicks into place.

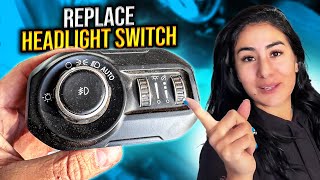

- Plug the electrical connector into the new switch, then align the trim panel with the dash and press it firmly until all the clips snap back into place. 🎬 See this quick walkthrough on replacing the headlight switch module.
Frequently Asked Questions (FAQ)
Why are my "Auto" headlights always on, even during the day?
This is almost always caused by the ambient light sensor on the top of the dashboard being blocked. Check for any items like phone holders, dash mats, or papers covering the small sensor bubble near the windshield defroster vents before assuming the switch is bad.
Can I add fog lights or auto headlights to my Jeep by just installing a switch that has those buttons?
No. Those features are controlled by the Body Control Module (BCM). While the new switch is required, the BCM must also be reprogrammed by a dealer or with an advanced diagnostic tool (like a Tazer) to enable the new functionality.
Why do my turn signals or other unrelated lights act weird when the headlight switch fails?
The headlight switch doesn't directly control the lights. It sends a digital signal to the Body Control Module (BCM), which then operates all the vehicle's lighting systems. A faulty switch can send corrupted data, confusing the BCM and causing it to activate or deactivate other lighting systems incorrectly.
Is the headlight switch the same as the auxiliary (AUX) switch panel?
No. The headlight switch is the round dial on the far left of the dash. The auxiliary switch panel is a separate bank of buttons, usually located in the lower center console area, used for controlling aftermarket accessories like light bars or air compressors. They are two distinct parts.
Related and Commonly Confused Parts
Auxiliary Switch Bank
Available as a factory option or a Mopar accessory kit (Part No. 82215190AE), this panel provides integrated switches for accessories. Many aftermarket versions from companies like Lasfit and Voswitch are also popular. This is often confused with the headlight switch but serves a completely different purpose.
Center Console Window Switch Panel
The main bank of window switches located in the center of the dashboard is another part that can fail. Owners report the rubberized coating on the buttons can peel or deteriorate, and the switches themselves can break mechanically. This is a separate component from the headlight switch module.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68292842AA 68292842AB 68292842AC
Communicates with the Body Control Module (BCM) via a LIN bus signal. Variants exist for models with and without automatic headlights and fog lights.
