2012-2014 Ford Edge & 2012-2015 Lincoln MKX Spoiler: Brake Light Failures and Replacement
This guide covers the common failure of the integrated third brake light and the tricky satellite antenna compatibility you need to check before buying a replacement spoiler.
- The most critical step before buying is to check for the satellite antenna; some models have it inside the spoiler, and the parts are not interchangeable.
- The most common failure is the integrated LED third brake light, which requires replacing the entire light unit, not just bulbs.
- Replacement is difficult due to strong hidden clips; it requires significant force and care to remove the spoiler without damage.
- Buying a complete used OEM spoiler assembly is often more cost-effective than buying a new third brake light from a dealer.
Symptoms of a Failing Spoiler Assembly
Failure of the spoiler itself is rare. More commonly, the components housed within the spoiler will fail. Symptoms are almost always related to the third brake light or, less often, the integrated weather seal.
1. Third Brake Light Malfunction
This is the most frequent issue for the 2012-2014 Ford Edge and 2012-2015 Lincoln MKX spoiler. The LED light strip may fail in several ways:
- Partial Failure: Only a section of the LED strip illuminates when you press the brake pedal. This is a common failure mode reported by many owners.
- Complete Failure: The entire third brake light does not light up at all. This is a safety hazard and will cause the vehicle to fail a state safety inspection.
- Dim or Flickering Light: The light may appear dim or flicker, indicating a problem with the internal circuitry or a poor electrical connection.
The cause is often a failure in the light's internal electronics, as the entire unit is a single sealed assembly. Physical damage, such as the lens cover being torn off in a car wash, can also lead to water intrusion and corrosion, causing the light to fail.
2. Deteriorated Weather Seal
A foam or rubber weatherstrip runs along the bottom edge of the spoiler, sealing it against the rear liftgate glass. Over time, exposure to sun and weather can cause this seal to become brittle, crack, and fall apart. While this doesn't typically cause major leaks into the vehicle, it can create a poor appearance and potentially lead to wind noise.
Known Issues, TSBs, and Recalls
As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from Ford or the National Highway Traffic Safety Administration (NHTSA) for the spoiler assembly, third brake light, or weather seal on the 2012-2014 Ford Edge or 2012-2015 Lincoln MKX. While these vehicles have been subject to recalls for other issues like airbags and axle shafts, the spoiler itself has not been part of any official service campaign.
Critical Compatibility Warning: Satellite Antenna Location
Before purchasing a used spoiler, you must determine your vehicle's satellite radio antenna configuration. There are two types:
- Spoiler-Mounted Antenna: On some 2012-2014 Ford Edge and 2012 Lincoln MKX models, the antenna for SiriusXM satellite radio and GPS navigation is integrated directly into the spoiler assembly. These spoilers have a specific internal molding and wiring to accommodate the antenna unit.
- Roof-Mounted Antenna: Vehicles without the spoiler-mounted antenna have a small mast or 'shark fin' antenna on the main roof panel.
A spoiler from a vehicle with a roof antenna will NOT have the correct provisions to install the spoiler-mounted antenna. For 2013-2015 Lincoln MKX models, this part should fit regardless of the satellite radio configuration. Always verify the antenna location on both the donor vehicle and your vehicle before buying.
Buying a Used Spoiler: What to Check
A used OEM spoiler is often an excellent value, as it can be cheaper to buy a complete used spoiler assembly than to buy a new third brake light alone. Here’s what to inspect:
- Verify Antenna Compatibility: This is the most important check. Ask the seller for photos of the roof of the donor car. If it has a 'shark fin' or mast antenna on the metal roof, the spoiler will not work for a vehicle with an integrated spoiler antenna.
- Test the Third Brake Light: If possible, have the seller connect the brake light to a 12V power source to confirm all LEDs light up brightly. If buying online, look for listings that explicitly state the light has been tested and is fully functional.
- Inspect the Lens: Check the red plastic lens of the third brake light for cracks, hazing, or any signs of separation from the spoiler body. A compromised lens will lead to water damage and premature failure.
- Check Mounting Points: Inspect the areas where the bolts and clips attach. Ensure there are no cracks in the plastic, which could prevent the spoiler from seating securely.
- Examine the Weather Seal: Look at the condition of the foam seal on the underside. While a worn seal can be replaced, a good-condition seal saves you an extra step. The part number for the seal is 9T4Z-78021A46-A, but it can be hard to find separately.
Replacement Difficulty
- Difficulty Rating: 4 out of 5 (Challenging)
- Estimated Time: 1.5 - 2.5 hours
- DIY Feasible: Yes, for patient and careful individuals.
Replacing the spoiler is known to be difficult primarily due to a set of very strong plastic clips that hold it to the liftgate in addition to the bolts. After removing the interior liftgate trim panel and unbolting the spoiler from the inside (typically 4-6 nuts), you must use significant, careful upward force to pop the spoiler off the clips. This is often described as a "bravery test" because it feels like the part might break. 🎬 See this video for help removing the spoiler and light Using plastic trim removal tools is essential to avoid scratching the paint or damaging the spoiler.
Procedure Overview:
- Open the liftgate and remove the upper interior trim panel.
- Disconnect the electrical connector for the third brake light and the washer fluid hose. 🎬 Watch: Step-by-step guide for replacing the light and spray nozzle
- Locate and remove the 4 to 6 nuts holding the spoiler to the liftgate frame.
- Close the liftgate. Carefully but forcefully pry or pull the spoiler straight up to release the hidden plastic clips.
- Once removed, the third brake light can be unbolted from inside the spoiler assembly.
Cost Comparison
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM Spoiler | $760 - $850 | Part number CT4Z7844210BPTM. Comes primed and needs to be painted to match. |
| New Aftermarket Spoiler | Not Widely Available | Direct-fit aftermarket spoilers for this generation are not common. Universal spoilers would require modification. |
| Used OEM Spoiler | $125 - $250 | Best value. Typically includes a working third brake light and comes in a factory color. |
| New Aftermarket 3rd Brake Light | $120 - $150 | A good option if your spoiler body is fine but the light has failed. Dorman is a common brand. |
| Shop Labor to Replace | $200 - $400 | Typically 1.5-2.5 hours of labor. Dealer quotes can be significantly higher. |
Frequently Asked Questions (FAQ)
Can I just replace the bulbs in my third brake light?
No, the third brake light is a sealed LED assembly. If any part of it fails, the entire light unit must be replaced. You cannot replace individual LED diodes.
My third brake light works, but the weatherstrip is falling apart. What can I do?
The original weatherstrip is a foam seal, part number 9T4Z-78021A46-A. It can be difficult to purchase separately. A common DIY solution is to carefully remove the old, deteriorated seal and replace it with a high-quality, automotive-grade 3M double-sided foam trim tape of a similar thickness.
Will a spoiler from a Lincoln MKX fit my Ford Edge?
Yes, for the specified year ranges (2012-2014 Edge and 2012-2015 MKX), the spoilers are physically interchangeable as the vehicles share the same liftgate structure. However, you must still verify the satellite antenna compatibility.
Why did only some of my third brake light LEDs go out?
This is a very common failure mode for this part. It is usually caused by a failure of the internal electronic circuits that power the groups of LEDs, not the LEDs themselves. Unfortunately, the result is the same: the entire light assembly needs to be replaced.

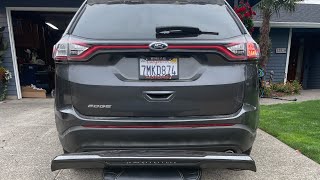

Helpful Videos
Technical Specifications
OEM Part Numbers: CT4Z7844210BPTM
Material: Plastic, Finish: Primed (Paint to Match)
