2015-2018 Chevrolet City Express & Nissan NV200 Starter: Clicks, Grinds, and Replacement

The City Express and Nissan NV200 Connection

The most important thing to know when servicing or buying parts for a 2015-2018 Chevrolet City Express is that it is a rebadged Nissan NV200. Both vans were built in the same factory and share the same 2.0L 4-cylinder engine, transmission, and most mechanical components, including the starter motor. This means that a starter motor intended for a 2013-2021 Nissan NV200 will fit and function perfectly in a Chevrolet City Express, which greatly expands the options for finding a replacement part.

Symptoms of a Failing Starter Motor

Starter motor failure typically presents with a few distinct symptoms. Before assuming the starter is bad, it's critical to ensure your battery is fully charged and the battery terminals are clean and tight, as a weak battery can cause very similar symptoms.

• Single, Loud Click, Then Nothing: When you turn the key, you hear one sharp click from the engine bay, but the engine doesn't crank. This usually means the starter solenoid is engaging, but the motor itself is failing to spin.
• Grinding or Whirring Noise: You may hear a high-pitched whirring or a harsh grinding sound when you attempt to start the engine. A whirring noise can indicate the starter motor is spinning but its gear (the Bendix) is not engaging with the engine's flywheel. A grinding sound suggests the gear is trying to engage but is failing or the teeth on the gear or flywheel are damaged.
🎬 Watch: Hear the specific noises a failing starter makes
• No Sound at All: You turn the key and there is complete silence. This could point to a problem with the ignition switch, a blown fuse, or a completely dead starter solenoid or motor.
• Intermittent Starting: The vehicle may start fine one day but fail to start the next, sometimes requiring multiple key turns. This can be a sign of worn electrical contacts inside the starter solenoid or worn brushes in the motor.

Known Issues, Recalls, and TSBs

There are no specific recalls or widespread Technical Service Bulletins (TSBs) related to starter motor failure on the 2015-2018 Chevrolet City Express or its Nissan NV200 counterpart. However, both vehicles were part of a significant recall (NHTSA Campaign Number: 25V676) for a fuel pump harness that could be improperly routed. This could lead to a short circuit, a blown fuse, and an engine stall, which could be misdiagnosed as a starting issue. 🎬 See how to test for a bad engine block ground It is wise to check if this recall has been performed on the vehicle.

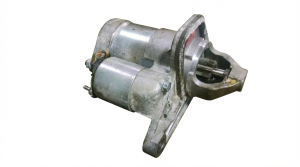

Buying a Used Starter Motor

A used OEM starter is an excellent, cost-effective alternative to expensive new parts or lower-quality aftermarket options. Because the City Express and NV200 are mechanically identical, you can confidently purchase a used starter from either model, covering a wide year range (2013-2021 for the NV200).

• Compatibility: Look for starters from a 2015-2018 Chevrolet City Express or a 2013-2021 Nissan NV200. They are direct swaps.
• What to Inspect: When buying a used starter, check for obvious signs of damage. The gear should extend and retract smoothly. The teeth on the gear should be intact and not excessively worn or chipped. Ensure the electrical terminals are clean and not corroded or broken.
• Mileage: While starters are a wear item, they are generally robust. A starter from a vehicle with under 100,000 miles is ideal, but even higher-mileage units can provide reliable service and significant cost savings. One used starter was seen listed for just $45 from a vehicle with 180,000 miles, highlighting the potential value.

Cost of Replacement

The cost to replace a starter motor can vary significantly based on the part source and labor rates.

DIY Replacement Walkthrough

Replacing the starter on the City Express/NV200 is a manageable job for a DIY mechanic with basic tools. The starter is located at the front bottom of the engine and is held in place by two bolts.

1. Safety First: Park the vehicle on a level surface, set the parking brake, and disconnect the negative battery terminal.
2. Access the Starter: Safely lift the front of the vehicle and secure it on jack stands. The starter is located at the bottom front of the engine, attached to the transmission bellhousing.
3. Disconnect Electrical Connections: Pull back the rubber boot on the solenoid. Remove the nut holding the main battery cable (typically 12mm or 13mm) and move the cable aside. Disconnect the smaller signal wire from its terminal.
4. Remove Mounting Bolts: There are two main bolts that hold the starter to the engine block. Remove these bolts using a ratchet and socket. Be prepared to support the weight of the starter as you remove the final bolt.
5. Install the New Starter: Maneuver the new starter into position and hand-thread the two mounting bolts to prevent cross-threading. Snug them down and then torque them to the manufacturer's specification. While specs for this exact model are not readily available, similar applications often call for around 37 ft-lbs (50 Nm), but you should verify this for your specific vehicle.

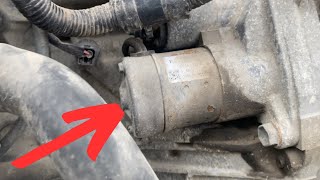

🎬 Watch: Step-by-step starter replacement for the NV200 and City Express
6. Reconnect and Test: Re-attach the electrical connections, ensuring the main power cable is tight. Reconnect the negative battery terminal. Turn the key to ensure the vehicle starts properly.
