2019-2025 Cadillac XT4 Steering Column: Matching RPO Options is a Must

Symptoms of a Failing Steering Column

A steering column is generally a reliable part, but when it fails, the symptoms can range from annoying noises to serious safety concerns. Because it integrates so many functions, a single fault can have multiple symptoms.

• Audible Noises: Clicking, grinding, or a rubbing sound when turning the steering wheel often points to a worn bearing, a failing clock spring, or an issue with the intermediate shaft U-joint. A clunking noise could indicate looseness in the column itself or its mounting points.
• Loose or Wobbly Steering Wheel: If the steering wheel has excessive play or feels wobbly, it could be due to worn internal bearings or loose mounting bolts. This is a serious safety issue that requires immediate attention.
• Tilt/Telescopic Function Failure: The mechanism that allows you to adjust the steering wheel's position can fail. You might find that the tilt lock doesn't hold the wheel in place, causing it to drop unexpectedly.
• Electrical Failures: Since the column houses switches and wiring, you may experience non-functional turn signals, wipers, or cruise control buttons. An illuminated airbag warning light is a common symptom of a failed clock spring within the column.
• Stiff or Inconsistent Steering: While often related to the electric power steering rack, some issues can stem from the column. A binding feeling, especially at certain points in a turn, can be caused by a worn universal joint in the column's intermediate shaft. Some XT4 owners have reported stiff steering and vibration that was resolved by recalibrating the steering angle sensor, which is located in the column.

Known Issues, TSBs, and Recalls

As of early 2026, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from the National Highway Traffic Safety Administration (NHTSA) for catastrophic failure of the steering column assembly on the 2019-2025 Cadillac XT4.

However, there are some related service programs buyers should be aware of:

• Heated Steering Wheel Retrofit (N222371151): Due to semiconductor shortages, many XT4s were built without a functional heated steering wheel. GM initiated a customer satisfaction program to retrofit this feature, which sometimes involves replacing steering wheel components but not the entire column.
• Steering Angle Sensor Issues: Some owner reports indicate that symptoms like stiff steering or vibration can be caused by a steering angle sensor that needs recalibration, rather than a full mechanical failure. This is a diagnostic step to consider before replacing the entire column.

The Compatibility Minefield: Decoding XT4 RPO Codes

This is the most critical section for anyone buying a used steering column. The Cadillac XT4 was available with several different column configurations based on the vehicle's options. Installing the wrong column will result in features not working. You MUST match the options of the donor vehicle to your own. These options are identified by three-character Regular Production Option (RPO) codes.

Key RPO Codes to Match:

• N37 - Manual Rake and Telescoping Steering Column: This indicates the column has manual (non-powered) adjustment for tilt and reach. If your vehicle has power tilt/telescope, you need a column from a vehicle with that option instead.
• TQ5 - IntelliBeam (Automatic High Beams): This feature uses a forward-facing camera to automatically switch the high beams on and off. The control switch is part of the steering column assembly. If your column has this feature, the replacement must have it too.
• CE1 - Rain-Sensing Wipers: This option automatically controls the wiper speed based on moisture detected on the windshield. Like IntelliBeam, the control stalk and its internal wiring are specific. A column for a vehicle with rain-sensing wipers is different from one without.

Buying a Used Steering Column: What to Check

A used OEM steering column is an excellent, cost-effective alternative to an expensive new part, especially since complete aftermarket columns for the XT4 are not readily available. Here’s what to look for:

1. Confirm RPO Compatibility: This is the #1 rule. Get the VIN of the donor car and verify its options match yours. Reputable sellers should be able to provide this information. Do not buy a column if you cannot confirm its original configuration.
2. Inspect All Wiring and Connectors: Carefully check all plastic connectors for cracks or broken locking tabs. Ensure no wires have been cut or show signs of damage. A column that was removed carelessly can have hidden electrical issues.

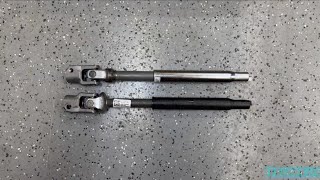

3. Check the Intermediate Shaft: The column assembly often includes the upper intermediate shaft. Check the universal joint (U-joint) for smooth, binding-free movement. A stiff or rusty U-joint will cause steering stiffness.
4. Look for Physical Damage: Inspect the main column tube for any signs of bending or collapse, which would indicate it came from a vehicle in a major front-end collision. Check the plastic clamshell covers for cracks.
5. Verify Switches and Levers: Make sure the turn signal and wiper stalks are present and not broken. While these can sometimes be swapped from your old column, it's best to get an assembly that is complete and intact.

Cost Breakdown

Prices can vary based on options, condition, and location. The following is an estimated range to help you understand the value of a used OEM part.

Replacement Difficulty

Replacing a steering column is a complex job that involves safety-critical components. For the average DIY mechanic, this is not a recommended task.

• Difficulty: 4 out of 5
• Estimated Time: 3-4 hours
• Key Steps: The process involves disconnecting the battery, disabling and removing the driver's airbag (a hazardous procedure), removing the steering wheel, 🎬 See this Cadillac steering wheel airbag removal guide removing plastic trim panels, disconnecting multiple complex wiring harnesses, unbolting the intermediate shaft from the steering rack, and unbolting the column from its mounting bracket.
• Post-Installation: After installation, the Steering Angle Sensor (SAS) MUST be recalibrated using a professional-grade scan tool. Failure to do so will result in error codes and may disable the stability control system.
🎬 Watch: How to calibrate a GM steering angle sensor
