2003-2007 Jeep Wrangler & 2002-2006 Liberty Steering Column: Fixing Looseness, Tilt Failure, and Ignition Problems

Symptoms of a Failing Steering Column

A problem with the steering column in your 2003-2007 Jeep Wrangler or 2002-2006 Jeep Liberty will make itself known through distinct sounds, feelings, and functional failures. Here are the most common symptoms to watch for.

Loose or Wobbly Steering Wheel

One of the most frequent complaints is a steering wheel that feels loose or has excessive play. This can be especially noticeable on rough roads. The looseness often originates from worn-out internal bearings or, more commonly, a failing tilt mechanism. This creates a disconcerting feeling of disconnection between the steering wheel and the vehicle's response.

Tilt Mechanism Won't Lock

You might find that the tilt adjustment lever no longer locks the steering wheel firmly in place. The wheel may move up and down freely or slip from its set position while you're driving. This is a classic sign of failure in the internal tilt housing components, a well-known issue in many Chrysler products from this era.

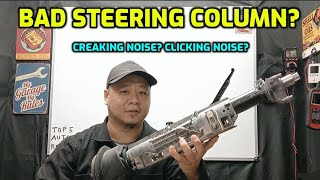

Clicking, Grinding, or Popping Noises

Audible cues are a strong indicator of internal problems. You may hear clicking, grinding, or popping sounds when turning the steering wheel. These noises often point to worn or failed bearings inside the column that support the steering shaft. What starts as an occasional noise can become constant, signaling a need for immediate attention.

Key Won't Turn or Vehicle Won't Start

For many Jeep Liberty and Wrangler owners, the first sign of trouble is in the ignition. You might find the key is difficult to turn, or it turns but the engine doesn't crank. This is very often caused by a small, broken part inside the column called the ignition switch actuator pin. This pin connects the mechanical motion of the key cylinder to the electronic ignition switch. When it fails, the link is broken, and the start signal is never sent.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Common Failure Point: Ignition Actuator Pin

The single most common non-wear-related failure within these steering columns is the ignition actuator pin. This small cast metal piece is prone to cracking and breaking over time. Symptoms are very specific: the key turns, the dashboard lights and radio come on, but the starter never engages. This part (often replaced with Dorman part 924-704 🎬 Watch: Step-by-step guide to fixing the ignition actuator pin.) can be replaced without replacing the entire column, but it requires significant disassembly of the column housing.

Jeep Liberty Steering Recall (Ball Joints, Not Column)

Owners of the 2002-2006 Jeep Liberty should be aware of a significant recall (NHTSA Campaign ID: 06V288000) related to a potential loss of steering control. However, it's crucial to understand that this recall is for the front suspension lower ball joints, not the steering column itself. A failed ball joint could cause a wheel to separate from the steering knuckle, leading to a loss of control. If you are experiencing steering issues with a Liberty, it is vital to have the ball joints inspected in addition to the steering column.

Buying a Used Steering Column: A Buyer's Checklist

A recycled OEM steering column is an excellent, cost-effective solution. Because the core structure is very durable, a used column from a low-mileage vehicle can provide many years of service. However, you must verify you are buying the correct part and inspect it carefully.

1. Verify the Exact Configuration

Before you buy, confirm these three things:

• Transmission: Does your Jeep have an automatic or manual transmission? The columns are different.
• Tilt Steering: Does your Jeep have a tilt wheel? Most do, but base models may not.
• Cruise Control: Does your Jeep have cruise control? The wiring and switches are integrated into the column.

2. Physically Inspect for Looseness

If you can inspect the part in person, grab the top of the column (where the wheel would mount) and try to move it up, down, and side-to-side. There should be no significant play or clunking. Pay close attention to the tilt mechanism pivot point, as this is a common area for wear.

3. Check Wiring and Connectors

Carefully examine all the wiring harnesses coming from the column. Look for any cut wires, cracked plastic connectors, or pulled pins. A column with damaged wiring will cause major headaches during installation.

4. Examine the Ignition Lock Cylinder

Confirm whether the column includes the ignition lock cylinder and a matching key. If it does, insert the key and ensure it turns smoothly through all positions (ACC, ON, START). If it does not include the cylinder, you will need to swap yours over, which requires a special security Torx bit.

5. Why Used OEM is a Smart Choice

Complete aftermarket steering columns for these models are rare and often of questionable quality. A used OEM (Original Equipment Manufacturer) column was built to Chrysler's original standards for fit, finish, and material durability. For a structural part like this, sticking with proven OEM quality is the safest and most reliable option.

Cost of Replacement

Replacing the steering column is a significant repair, but opting for a used part can save you hundreds of dollars. New OEM columns for these models are largely discontinued.

Replacement Overview & Difficulty

• Difficulty Rating: 4 out of 5
• Estimated Time: 2-4 hours
• DIY Feasible: Yes, for experienced mechanics with proper tools.

This is an advanced DIY job that requires care and the right tools. The most critical part of the procedure is safely handling the driver's airbag.

General Replacement Steps:

1. Disconnect the negative battery terminal and wait.
2. Remove the driver's airbag module (typically held by bolts from behind the steering wheel).
3. Remove the main steering wheel retaining nut and use a steering wheel puller to remove the wheel.
🎬 Watch this walkthrough for removing a Wrangler steering wheel.
4. Remove the plastic shrouds around the steering column.
5. Disconnect all electrical connectors for the multifunction switch, ignition switch, clockspring, and any other components.
6. For automatic models, disconnect the brake-shift interlock cable.
7. Remove the pinch bolt connecting the column to the intermediate steering shaft in the engine bay or near the floor.
8. Remove the main nuts holding the steering column to the dash support frame and carefully lower the assembly out of the vehicle.

Installation is the reverse of removal. It is critical to ensure the steering wheel and front wheels are perfectly straight before connecting the column to the intermediate shaft to ensure a centered steering wheel.
