2011-2017 Lexus CT200h Steering Column: Diagnosing Noises, Stiffness, and EPS Faults

Symptoms of a Failing CT200h Steering Column

Failures in the CT200h steering column can manifest in several ways, ranging from simple noises to a complete loss of power steering. Identifying the specific symptom is key to a correct diagnosis.

• Knocking or Rattling Noise: A distinct clunking, rattling, or knocking sound from the steering column area, especially noticeable at low speeds, over small bumps, or when turning the wheel back and forth while stationary. This is the most widely reported issue.

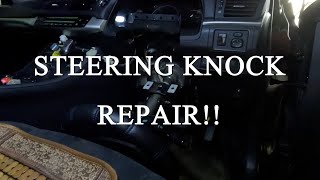

🎬 Watch: Hear the CT200h steering rattle noise in action
• Stiff or Heavy Steering: The steering wheel becomes difficult to turn, sometimes intermittently. This often feels like the power steering has completely shut off. It may be more pronounced at low speeds or during cold weather.
• EPS Warning Light: A warning light shaped like a steering wheel with an exclamation mark appears on the instrument cluster. This indicates a fault has been detected in the Electric Power Steering system. The system may disable itself as a precaution.
• Vibrating or Spongy Steering Feel: The steering wheel may vibrate or feel disconnected and spongy, particularly at lower speeds. This can be a sign of a faulty electrical connection or sensor issue.
• Failure of Electric Adjustments: On models with power tilt and telescope functions, the adjustment motors may stop working, sometimes accompanied by an error message. This is often due to a bad switch or faulty wiring connector.

Known Issues: The Common Steering Knock Fix

If you are experiencing a knocking or rattling sound, it is very likely caused by a failed component within the EPS motor assembly, not the entire column. Many owners and shops have misdiagnosed this as a faulty intermediate shaft or steering column, leading to expensive and unnecessary repairs.

The Real Culprit: A Small Rubber Damper

Inside the electric power steering motor is a small, star-shaped rubber damper (Lexus/Toyota part number 45254-28040) that absorbs shock and vibration. Over time, this rubber piece degrades and disintegrates, leaving excessive play in the steering mechanism. This play is what causes the distinct clunking sound. The part itself is very inexpensive, often costing less than $15.

While the part is cheap, replacing it is labor-intensive due to the tight space. The job requires removing the lower dash panels, the driver's knee airbag, and unbolting the steering column assembly to lower it for access to the EPS motor. For this reason, many DIY mechanics may find the job challenging.

Buying a Used 2011-2017 CT200h Steering Column

Given the high cost of a new OEM steering column, a used part from a reputable recycler is a smart financial choice, especially if the EPS motor or control unit has failed. Here’s what to look for:

• Verify the Part Numbers: The CT200h steering system consists of two main parts. The main assembly, which includes the EPS motor, is part number 45250-76040. The separate intermediate shaft that connects the column to the steering rack is part number 45260-76020. Ensure you are buying the correct component for your needs. Most failures are related to the main 45250-76040 assembly.
• Physical Inspection: Before purchasing, visually inspect the unit. Look for any signs of physical damage, such as a bent shaft or cracked plastic housing on the EPS motor. Check that all electrical connectors are intact, with no broken clips or corroded pins.
• Ask About the Donor Vehicle: If possible, get the mileage from the vehicle the part came from. A lower-mileage part is always preferable. Also, ask if the donor vehicle had any warning lights on the dash.
• Understand What's Included: A used steering column is typically sold as a 'bare' unit. This means it includes the main column, intermediate shaft, and the integrated EPS motor. It does NOT include the steering wheel, airbag, clock spring, or switches for turn signals and wipers. You will need to carefully transfer these parts from your old column.

Cost Comparison: New vs. Used

The cost difference between new and used is significant, making a used OEM part a very attractive option.

Replacement Overview & Calibration

Replacing the steering column is a moderately difficult job best suited for experienced DIYers or a professional technician. The process involves working around the sensitive airbag system.

Difficulty: 4 out of 5

Key Steps:

1. Disconnect the 12V Battery: This is a critical safety step to disable the airbag system. Wait at least 10-15 minutes before proceeding.
2. Remove Steering Wheel and Airbag: Carefully remove the driver's airbag, followed by the steering wheel itself.
3. Remove Column Covers and Switches: The plastic shrouds, clock spring, and multifunction switches (turn signal, wipers) must be removed and transferred.
4. Disconnect Shafts and Wiring: Disconnect the intermediate shaft from the steering rack at the floorboard and unbolt the main column assembly from under the dashboard. Disconnect all electrical harnesses.
5. Installation and Calibration: Installation is the reverse of removal. After the new column is installed, Lexus service procedures specify that a Torque Sensor Zero Point Calibration must be performed with a diagnostic scan tool. This ensures the EPS system provides the correct amount of assist. Failure to calibrate may result in uneven steering or a warning light.
