Ford Edge & Lincoln MKX Steering Column Guide (2012-2018): Clunks, Recalls, and Part Swaps
This guide covers the two distinct steering column designs used in the 2012-2014 Ford Edge and 2012-2018 Lincoln MKX, including major power steering recalls and common clunking noises.
- There are two incompatible steering column designs: one for 2012-14 Edge/2012-15 MKX and another for 2016-18 MKX. Verify your generation before buying.
- Major safety recalls exist for sudden power steering failure. Check your VIN with a dealer to see if the recall work has been performed.
- A clunking noise when turning is a very common issue, often caused by a faulty intermediate shaft, which can sometimes be fixed by tightening bolts.
- Replacement is a complex job that requires handling an airbag and mandatory electronic calibration of the Steering Angle Sensor (SAS) with a scan tool.
Critical Compatibility Warning: Two Generations, Two Different Columns
Warning: These vehicles span two different platforms, and the steering columns are NOT interchangeable between them. Before purchasing a replacement, you must identify your vehicle's generation.
- First Generation (Ford CD3 Platform): Applies to the 2012-2014 Ford Edge and 2012-2015 Lincoln MKX. These vehicles share a common architecture and related steering column parts.
- Second Generation (Ford CD4 Platform): Applies to the 2016-2018 Lincoln MKX. This generation is a complete redesign and uses a different steering column that is not backward-compatible with the earlier models.
This guide is organized by generation. Ensure you are reading the section that applies to your specific vehicle year.
Symptoms of a Failing Steering Column
A problem with the steering column can manifest in several ways, ranging from annoying noises to serious safety concerns.
- Clunking or Rattling Noise: A common complaint is a clunk, pop, or rattle felt through the steering wheel, especially when turning at low speeds. This often points to worn universal joints (U-joints) in the lower intermediate steering shaft. In some cases, the bolts securing the shaft may simply be loose.
- Sudden Loss of Power Steering: The steering may suddenly become extremely heavy and difficult to turn, particularly at parking lot speeds. This is a primary symptom of the electric power steering failures covered by major recalls on these vehicles.
- Airbag Warning Light On: An illuminated airbag or SRS (Supplemental Restraint System) light on the dashboard is a classic sign of a failed clock spring inside the steering column. A broken clock spring severs the electrical connection to the driver's airbag, meaning it will NOT deploy in a crash.

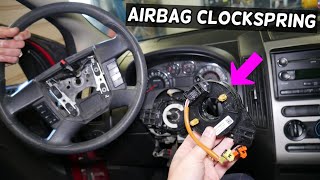

- Steering Wheel Buttons Not Working: If your cruise control, radio volume, or phone buttons on the steering wheel stop working intermittently or altogether, the clock spring is the most likely culprit. 🎬 See this walkthrough on replacing a failed clock spring.
- Binding or Stiff Steering: A feeling of the steering wheel being tight, then loose, then tight again as you turn is a symptom of a binding U-joint in the intermediate shaft.
- Power Tilt/Telescope Failure: On models with a power-adjustable column, the feature may stop working in one or both directions. This is usually due to a failed adjustment motor.
Known Issues, Recalls, and Service Bulletins
Several significant factory communications apply to the steering systems in these vehicles.
First Generation: 2012-2014 Edge & 2012-2015 MKX
Recall 15S18 / NHTSA 15V340000: Loss of Power Steering Assist
A major recall was issued for a potential intermittent electrical connection within the steering gear. This fault can cause a sudden and unexpected loss of all power steering assistance, making the vehicle very difficult to steer at low speeds. The remedy involves a dealer inspection; if specific Diagnostic Trouble Codes (DTCs) are found, the entire steering gear is replaced. If no codes are present, the Power Steering Control Module (PSCM) software is updated to better anticipate and handle the fault.
Second Generation: 2016-2018 MKX
Recall 19S26 / NHTSA 19V632000: Steering Bolt Corrosion
For vehicles sold or registered in salt-belt states, the attachment bolts for the electric power steering gear motor can corrode. This corrosion can cause the bolts to break, allowing the motor to detach from the steering gear, resulting in a complete loss of power assist. The fix requires dealers to replace the original bolts with new, improved bolts and apply a wax sealer to prevent future corrosion. If any bolts are already broken or missing, the entire steering gear assembly must be replaced.
Customer Satisfaction Program 19B04: Adaptive Steering Fault
On some 2016 MKX models equipped with optional Adaptive Steering, the plating on a steering wheel electrical connector can wear away. This causes a poor connection, disabling the adaptive steering feature and displaying an “Adaptive Steering Fault” message. While base power steering remains functional, the adaptive feature is lost. The dealer remedy is to replace the steering wheel assembly.
Buying a Used Steering Column: A Buyer's Checklist
A used OEM steering column can be a cost-effective solution, but careful verification is essential to get the right part. Cheap aftermarket columns are generally not available or recommended due to the complexity and integration with safety systems.
- Confirm Your Generation: First, determine if you have a Gen 1 (2012-14 Edge / 2012-15 MKX) or Gen 2 (2016-18 MKX) vehicle. This is the most important step.
- Identify Your Options: Look at your vehicle's features. Do you have a manual or power tilt/telescopic column? A heated steering wheel? Rain-sensing wipers? Lane-keep assist? Active Steering? These options determine which column you need. Your vehicle's original window sticker or a VIN lookup can provide this information.
- Match the Part Number: The only way to guarantee compatibility is to match the OEM part number. The number is typically on a sticker on the column housing. Do not rely on visual comparison alone. For example, part number ET4Z-3F791-AA fits Gen 1 models with manual tilt and without rain sensors, while F2GZ-3C529-AF fits Gen 2 models with power tilt.
- Inspect Connectors: Carefully inspect all electrical connectors on the used column. Look for any bent pins, corrosion, or cut wires. Damaged connectors can be very difficult to repair.
- Check the Intermediate Shaft: If the column includes the lower intermediate shaft, hold each end and check the U-joints for any stiffness, binding, or excessive play. This is a common failure point.
- Mileage Isn't Everything: A high-mileage column from a well-maintained vehicle can be a better choice than a low-mileage one from a vehicle that had a frontal collision, which could have damaged internal components.
Replacement Difficulty & Costs
Replacing the steering column is a complex job recommended for experienced DIY mechanics or professionals.
- Difficulty Rating: 4 out of 5
- DIY Feasible: Yes, for advanced mechanics. Not recommended for beginners.
- Estimated Time: 2.5 - 4.0 hours
Safety Warning: This procedure involves disconnecting and handling the driver's airbag. You MUST disconnect the vehicle's battery and wait at least 30-60 minutes for the system's backup power to discharge before starting work. Mishandling an airbag can result in serious injury.
Pro Tip: After installing the new column, a Steering Angle Sensor (SAS) Calibration is mandatory. This procedure requires a compatible OBD2 scan tool to tell the vehicle's computer the new straight-ahead position. 🎬 Watch: How to perform a Steering Angle Sensor calibration. Skipping this step will cause the ABS and Electronic Stability Control (ESC) warning lights to illuminate and those safety systems will not function correctly.
Cost Comparison
Prices can vary significantly based on the specific column required for your vehicle's options.
| Part Source | Estimated Cost |
|---|---|
| New OEM | $450 - $1,900 |
| Used OEM | $125 - $400 |
| Shop Labor | $250 - $600 |
Frequently Asked Questions (FAQ)
Can I fix the common clunking noise without replacing the whole column?
Yes, often the clunking or rattling noise comes from the lower intermediate steering shaft, not the main column assembly in the cabin. In some cases, simply tightening the 10mm and 12mm pinch bolts at the top and bottom of this shaft can resolve the noise. If that doesn't work, replacing just the intermediate shaft 🎬 Watch: How to fix steering rattle and clunking noises. is a much simpler and cheaper repair than replacing the entire column.
Can I upgrade from a manual to a power tilt/telescopic column?
This is not a simple plug-and-play swap. It would require the new column, the correct control switch, and potentially a different wiring harness and computer programming. It is generally not considered a practical or cost-effective modification.
What is a clock spring and why does it fail?
A clock spring is a coiled ribbon of wires that allows the steering wheel to turn while maintaining a constant electrical connection to the airbag, horn, and wheel-mounted buttons. It fails from the simple wear and tear of being wound and unwound thousands of times as you steer. This fatigue eventually causes the delicate internal wires to break, cutting off the electrical connections.
What is Steering Angle Sensor (SAS) calibration?
The SAS tells the car's computer the exact position and rate of turn of the steering wheel. This data is critical for the stability control and ABS to work correctly. After a new column is installed, the sensor's 'zero point' (when the wheels are straight) must be reset using a diagnostic scan tool. Without this step, the car may think it's turning when it's going straight, leading to incorrect and dangerous activation of the brakes by the stability control system.
Helpful Videos
Technical Specifications
OEM Part Numbers: BT4Z3B676A DT4Z3C529A DT4Z3C529B ET4Z3F791AA F2GZ-3C529-K F2GZ-3C529-R F2GZ-3C529-W F2GZ3C529AE FT4Z3F791GA FT4Z3F791NB F2GZ-3C529-AB F2GZ-3C529-AC F2GZ-3C529-AG F2GZ-3C529-AF
Varies significantly by part number. Key differentiators include: Manual vs. Power Tilt/Telescope, Heated Steering Wheel, Rain-Sensing Wipers, Adaptive Steering, and Electronic Locking.
