2011-2013 Mazda 3 Steering Column: Diagnosing Clunks, Electrical Faults, and Replacement
This guide covers common failure symptoms, critical compatibility checks for used parts, and replacement procedures for the 2011-2013 Mazda 3 steering column.
- Compatibility is critical: This column (BBP3-32-10XA) is for 2011-2013 Mazda 3 models with a conventional key ignition, not push-button start.
- Electrical failures (controls, horn, airbag light) are almost always the clock spring, a separate and cheaper part to replace.
- Clunking noises often point to wear in the column's mechanical parts or the intermediate shaft U-joint.
- After replacement, the steering angle sensor will likely need to be reset, which can often be done manually by turning the wheel lock-to-lock.
Symptoms of a Failing Steering Column
Failure in a 2011-2013 Mazda 3 steering column can manifest in several ways, ranging from annoying noises to significant functional and safety issues. Symptoms are often either mechanical or electrical.
Mechanical Symptoms
- Clunking or Grinding Noises: A common complaint is a clunking, grinding, or clicking sound when turning the steering wheel. This can be caused by worn internal bearings, a failing universal joint on the intermediate shaft, or other loose components within the column assembly. Some owners report a distinct "clunk" when reversing the steering wheel's direction, such as when maneuvering in a parking lot.
- Loose or Wobbly Steering Wheel: If the tilt-lock mechanism fails, the steering wheel may not lock securely in place, leading to a wobbly or unstable feel. In more severe cases, worn internal parts can create excessive play or looseness in the steering shaft itself.
- Rough or Sticking Steering: Debris or failed bearings inside the column can cause the steering wheel to feel rough or bind as it's turned. This is different from a loss of power steering and feels more like a mechanical restriction.
Electrical Symptoms
- Steering Wheel Controls Fail: The most common electrical failure is when the radio volume, cruise control, or info buttons on the steering wheel stop working. This is almost always caused by a failed clock spring, a component housed within the steering column assembly.
- Airbag Warning Light: A faulty clock spring will break the electrical connection to the driver's airbag module, causing the SRS (Supplemental Restraint System) warning light to illuminate on the dashboard.
- Horn Inoperative: The horn button also relies on the clock spring for its electrical connection. If the horn suddenly stops working, especially in conjunction with other steering wheel control issues, the clock spring is the likely culprit.
Pro Tip: Electrical symptoms like failed controls and an airbag light almost always point to the clock spring, not the entire column. The clock spring can be replaced as a separate part, which is much less expensive than replacing the whole assembly.

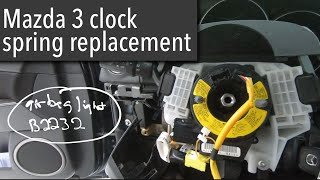

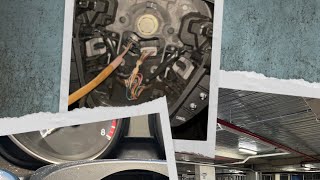

🎬 Watch: Step-by-step guide to replacing a faulty clock spring.Known Issues, TSBs, and Recalls
While there are no major recalls specifically for the steering column on the 2011-2013 Mazda 3 in the North American market, there are some related items to be aware of.
- Power Steering Failure: Many owners have reported intermittent or total loss of power steering. It is crucial to understand that this is typically a failure of the electro-hydraulic power steering (EHPS) pump or its related wiring, not the mechanical steering column itself. A recall for this issue was issued for earlier 2007-2009 models.
- TSB for Off-Center Steering Wheel: Mazda issued Technical Service Bulletin (TSB) 02-004/14 for various models, including the 2011-2013 Mazda 3, for complaints of the steering wheel being off-center by more than 3 degrees while driving straight. This bulletin outlines an adjustment procedure for the tie rods and is not indicative of a faulty steering column.
- Dashboard Warping: A separate warranty extension program (SSPA9) was issued for warping of the instrument panel (dashboard) above the information display, which can create a gap. This is a cosmetic issue with a nearby part and is not related to steering column function.
Buying a Used 2011-2013 Mazda 3 Steering Column
Purchasing a used OEM steering column is a cost-effective solution, but careful verification is essential to ensure you get the right part. These columns are not all the same.
Compatibility Checklist
- Ignition Type is Critical: The most important factor is the ignition system. This guide and the specified part numbers are for models with a conventional key ignition. Models with a push-button start (keyless ignition) use a different steering column. Verify which system your vehicle has. The part number for the standard key column is typically BBP3-32-10XA. The column for keyless ignition models is a different part, such as BBR3-32-10XA.
- Verify Features: The specified column (BBP3-32-10XA) is equipped with tilt adjustment, cruise control, and radio controls. Ensure the donor vehicle had the same options.
- 2011 Production Date: For the 2011 model year, the initial data specifies this part fits vehicles manufactured from March 1, 2011, onwards. Always provide your vehicle's VIN to the seller to ensure the most accurate match.
- Inspect Connectors: Before purchasing, visually inspect all electrical connectors on the used column. Look for any cut wires, broken plastic clips, or bent pins. Damaged connectors can be very difficult to repair.
- Check for Physical Damage: Inspect the main shaft for any signs of bending or damage from an accident. Check the tilt lock mechanism to ensure it engages and disengages smoothly.
- Clock Spring and Switches: Ask if the column comes with the clock spring, combination switch (turn signals/wipers), and ignition cylinder. Often, these are included but their condition is not guaranteed. A used column is a good source for the main mechanical assembly, but you may need to transfer your existing switches or install a new clock spring.
Replacement Information
Replacing the steering column is a moderately difficult job that requires care, especially when handling the airbag system. While it is feasible for an experienced DIY mechanic, beginners should consider professional installation.
- Difficulty: 4 out of 5
- Estimated Time: 2-4 hours
- Key Steps: The general procedure involves disconnecting the battery, waiting at least 3 minutes for the airbag system capacitor to discharge, removing the driver's airbag module, removing the steering wheel (a puller may be needed), removing the column shrouds and clock spring, disconnecting electrical connectors, and unbolting the intermediate shaft and the column mounting bolts.
Warning: Improper handling of the airbag module can cause it to deploy, leading to serious injury. Always disconnect the negative battery terminal and wait several minutes before beginning any work on the steering column.

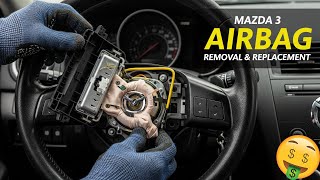

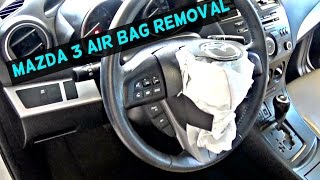

🎬 See how to safely remove the driver's side airbag.Post-Installation Calibration
After replacing the steering column or disconnecting the battery, the Steering Angle Sensor (SAS) may need to be reset. The SAS is critical for the proper function of the Dynamic Stability Control (DSC) system. An uncalibrated sensor can cause a DSC/Traction Control warning light to appear. In many cases, a simple manual reset will work:
- With the engine running, turn the steering wheel all the way to the full lock on the right.
- Turn the steering wheel all the way to the full lock on the left.
- Return the steering wheel to the center position.
- Turn the ignition off and then back on. This procedure often clears the light and re-calibrates the sensor's end points. If this does not work, a diagnostic scan tool may be required to perform the calibration. 🎬 Watch: How to manually reset the steering position sensor.
Cost Comparison
Prices for a 2011-2013 Mazda 3 steering column can vary significantly based on the source.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $790 - $935 |
| New Aftermarket | Not commonly available for the full assembly. |
| Used OEM | $150 - $400 |
| Shop Labor | $230 - $600 |
Frequently Asked Questions
Is the clunking noise from my steering wheel dangerous?
While a clunking noise is alarming, it is not usually an immediate catastrophic failure risk. It typically indicates a worn component like a U-joint or bearing. However, any play or looseness in the steering system is a safety concern and should be inspected and repaired as soon as possible to prevent further wear or a loss of steering precision.
Do used steering columns come with the clock spring and airbag?
No, used steering columns will not include the airbag module due to safety and shipping regulations. They often include the clock spring and other switches, but their condition is not guaranteed. It's common practice to transfer your original switches to the replacement column or to install a new clock spring if you are experiencing electrical failures.
My steering wheel controls don't work, but I don't have any noises. Do I need a whole new column?
No, almost certainly not. If your only symptoms are electrical (failed horn, cruise/radio controls, airbag light), the problem is the clock spring. This is a separate, round component that mounts to the top of the steering column, behind the steering wheel. It can be replaced without replacing the entire column assembly.
Can I replace the steering column myself?
This repair is recommended for experienced DIYers only. It requires handling a live airbag module, which is a significant safety risk if done incorrectly. It also requires a variety of tools, including potentially a steering wheel puller, and an understanding of how to correctly align the steering shaft. If you are not comfortable with these steps, professional installation is the safest option.
Helpful Videos
Technical Specifications
OEM Part Numbers: BBP33210X BBP33210XA CG3666150A
Fits models with conventional key ignition, automatic transmission, tilt steering, cruise control, and radio controls. For 2011 models, fits vehicles with a production date of March 1, 2011 or later.
