2004-2010 BMW X3 (E83) Steering Rack: Diagnosing Knocks, Play, and Leaks

Is This The Right Steering Rack For Your BMW X3?

Symptoms of a Failing Steering Rack

A failing steering rack in the E83 X3 can present several distinct symptoms. Problems usually stem from internal wear of the gears, failure of hydraulic seals, or wear in the mounting bushings.

1. Knocking or Clunking Noises

This is the most widely reported symptom for the E83 X3. You may hear a severe knocking, popping, or clunking sound coming from the front of the vehicle. This noise is often most noticeable at low speeds, especially when turning the wheel back and forth while parking or maneuvering on rough or uneven road surfaces. The sound can be caused by excessive play between the internal rack and pinion gears or worn mounting points. Some owners have successfully reduced this noise by tightening a preload adjustment nut on the rack, but this is often a temporary solution and can make steering feel heavy if overtightened.

2. Loose Steering or Vehicle Wandering

If you feel a 'dead spot' when the steering wheel is centered, or if the vehicle tends to wander or drift from its lane, requiring constant small corrections, it's a strong sign of a worn rack. This looseness, or 'play', means there is a delay between turning the steering wheel and the wheels actually responding. This can be caused by worn internal gears, failing inner tie rods, 🎬 Watch: How to replace your front inner tie rods or worn rack mounting bushings.

3. Power Steering Fluid Leaks

If you notice oily fluid dripping under the front of your X3, the steering rack seals may have failed. The fluid is typically found leaking from the ends of the steering rack, often saturating the rubber bellows (boots) that protect the inner tie rods. Torn or damaged bellows can allow dirt and water to enter the rack, which quickly destroys the seals and leads to leaks. A significant fluid leak will lead to a loss of power steering assist.

4. Grinding Noise or Stiff Steering

A grinding or groaning sound when turning the wheel, especially if it's accompanied by increased steering effort, points to a lack of hydraulic pressure. This is usually the result of a major fluid leak or a failing power steering pump. Running the system low on fluid can cause metal-on-metal contact within the rack, leading to grinding sounds and permanent damage.

5. Steering Wheel Does Not Return to Center

After making a turn, the steering wheel should naturally want to return to the straight-ahead position. If it feels like it 'sticks' in a turned position and you have to manually turn it back to center, it can indicate binding inside the steering rack.

Checking Your Power Steering Fluid

The E83 X3 can use one of two types of power steering fluid, and they must not be mixed. Always check the cap of your power steering reservoir for the correct fluid type.

• Pentosin CHF 11S: This is a high-performance synthetic hydraulic fluid. It is typically clear or light green when new and may turn brownish with age. This is the most common fluid for these models.
• ATF (Automatic Transmission Fluid): Some older or different market vehicles may specify ATF, which is red in color.

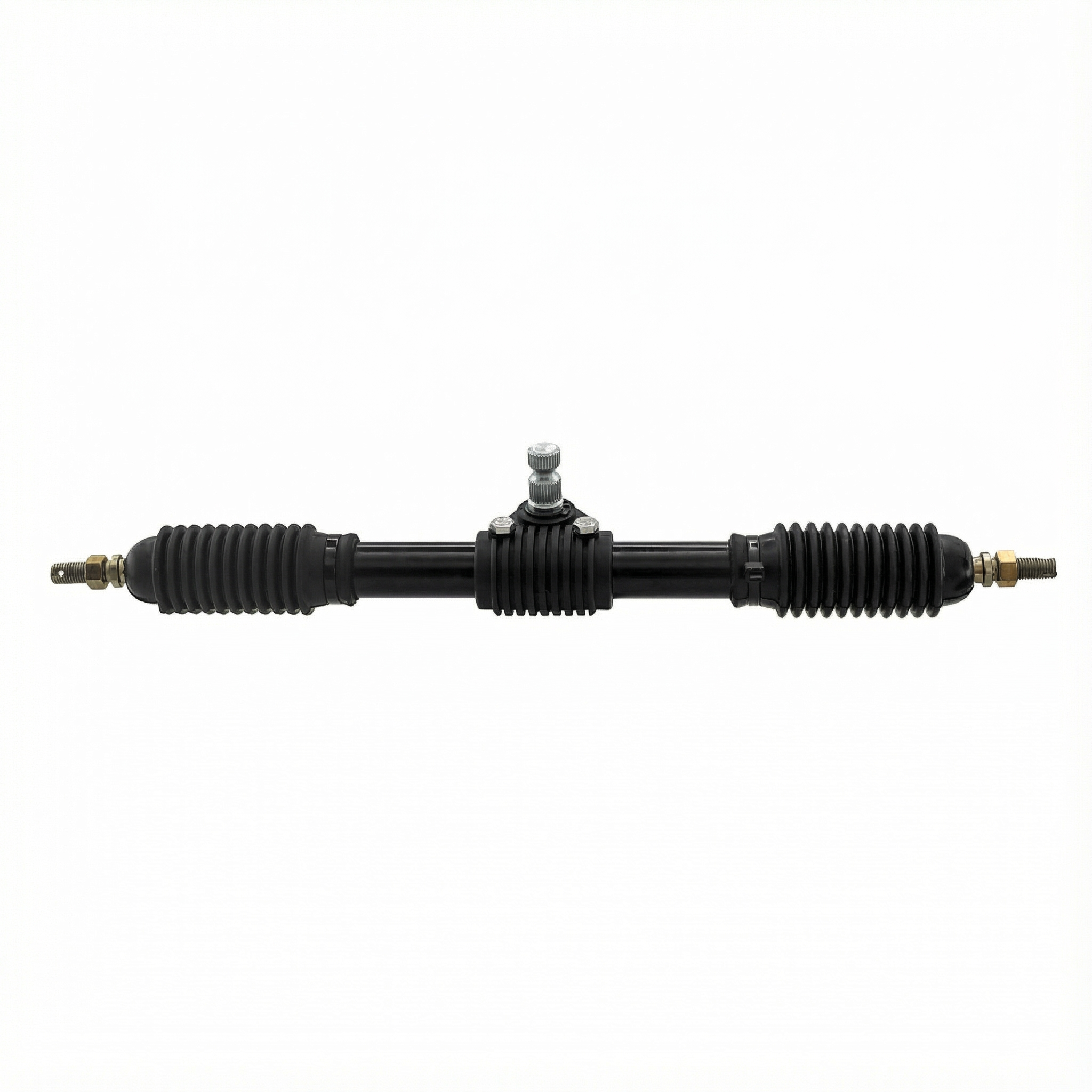

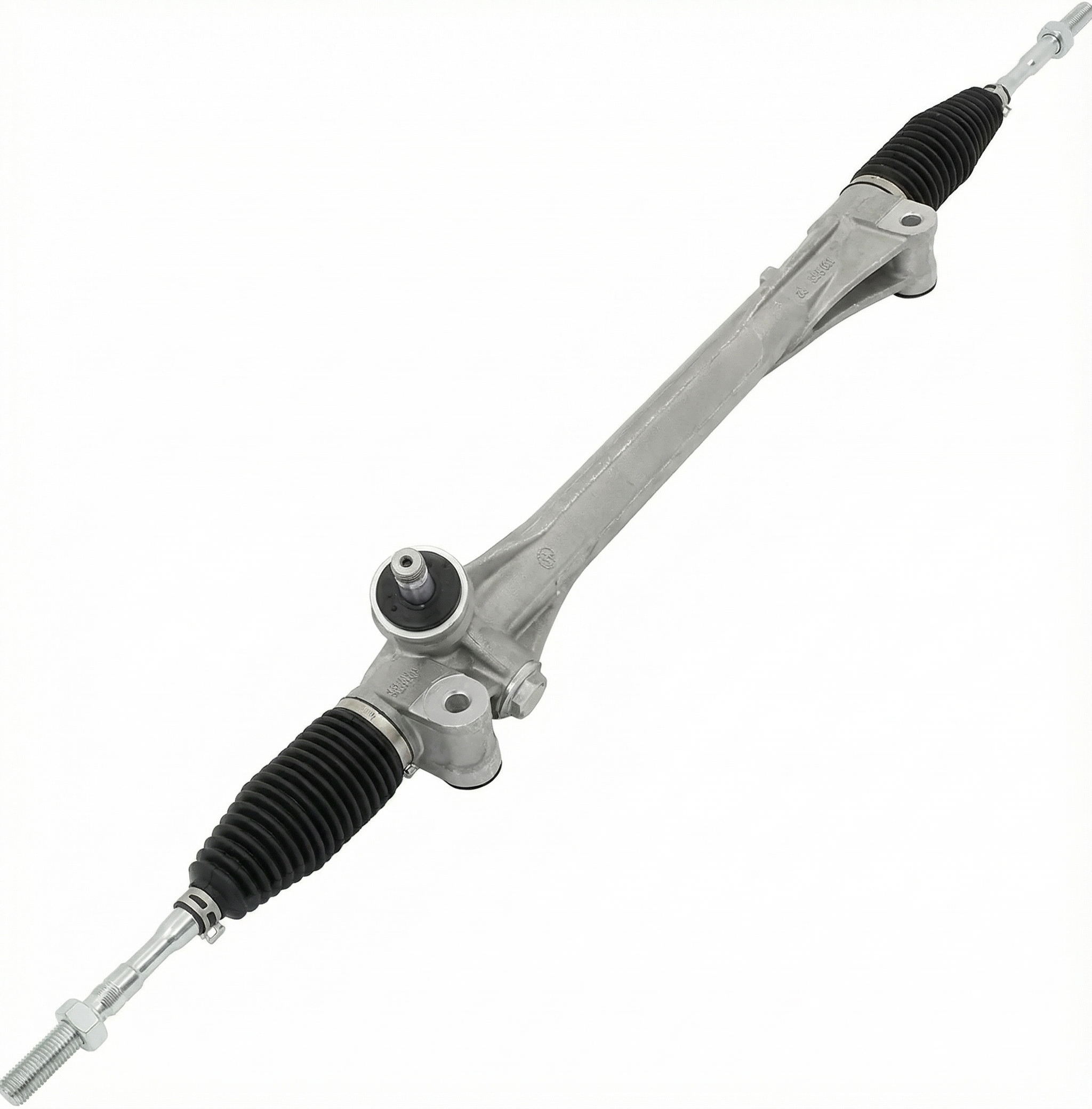

Buying a Used Steering Gear Poppet Rack

A used OEM steering rack is a cost-effective alternative to expensive new or remanufactured units, especially given the high price of new BMW parts. When inspecting a used rack, pay close attention to the following:

• Confirm Compatibility: Ensure the rack is from a non-Servotronic model. It should not have any electrical connectors on the main body of the rack itself.
• Inspect the Bellows (Boots): The rubber boots at each end of the rack must be 🎬 Learn how to replace a damaged steering rack bellow perfectly intact. Check for any rips, tears, or pinholes. Damaged boots are a major red flag, as they allow contaminants in that destroy the internal seals.
• Check for Leaks: Look for any signs of wetness or accumulated grime around the ends of the rack and where the fluid lines connect. A clean, dry rack is a good sign.
• Examine the Input Shaft: Check the splines on the input shaft (where it connects to the steering column) for any damage or excessive rust.
• Check the Tie Rods: While you will likely replace the outer tie rod ends, check that the included inner tie rods move smoothly without excessive play. The threads for the outer tie rods should be clean and undamaged.
• Mileage and Warranty: Opt for a rack from a lower-mileage vehicle if possible. Always purchase from a reputable seller that offers a warranty to protect against receiving a defective part.

Known Issues, Recalls, and TSBs

While there are no major recalls specifically for the steering rack on the 2004-2010 BMW X3 (E83) in North America, BMW has issued recalls and service bulletins for steering-related issues on other models and generations, indicating a sensitivity in these systems.

• NHTSA Recall 08V384000: This recall affects 2004-2006 X3 models but pertains to the front passenger airbag sensor mat, not the steering system.
• Newer Model Recalls: BMW has recalled newer generation X3s (2024-2026 models) for software issues with their electronic steering systems that could cause unintended wheel movement. While a different technology, this highlights ongoing scrutiny of BMW steering components.

Cost Breakdown

Replacing the steering rack is a significant expense, primarily due to the high cost of the part if purchased new. Labor costs are also substantial as the job can be complex.
