2001 Lexus IS300 Steering Rack: The One-Year-Only Part and How to Diagnose It

Compatibility Warning: Why the 2001 IS300 Steering Rack is a One-Year-Only Part

Symptoms of a Failing 2001 IS300 Steering Rack

Steering rack failures often start subtly but can become serious safety issues. Here are the most common signs that your 2001 IS300's steering rack needs attention.

1. Power Steering Fluid Leaks

This is the most frequent and obvious sign of failure. The seals at either end of the steering rack wear out over time, allowing fluid to leak out. You may notice:

• Red or reddish-brown fluid drips under the front of your car.
• Wet, oily bellows boots. The rubber boots on either end of the rack are designed to be dry. If you squeeze them and feel fluid inside, or see fluid seeping out, the internal seals have failed.
• A constantly low power steering fluid level. The 2001 IS300 uses Automatic Transmission Fluid (ATF) as power steering fluid, specifically DEXRON II or III. If you have to top it off regularly, there is a leak somewhere in the system.
• A whining or groaning noise from the power steering pump, which gets louder when you turn the wheel. This happens when the fluid level is low, causing the pump to suck in air.

2. Steering Noises

Unusual sounds during steering are a clear indicator of mechanical wear inside the rack.

• Clunking or thudding when turning the wheel, especially when changing direction. This often points to worn internal gears or excessive play in the inner tie rods, which are part of the rack assembly.
• Grinding or creaking when turning, particularly at low speeds. This suggests metal-on-metal contact from worn components that are no longer properly lubricated.

3. Changes in Steering Feel

How the steering wheel behaves is a direct reflection of the rack's health.

• Loose or sloppy steering: A feeling of excessive "play" or a dead spot in the center, where you can turn the wheel slightly without the car changing direction. This indicates wear in the internal rack and pinion gears.
• Wandering on the highway: If you constantly have to make small corrections to keep the car driving straight, the rack may be worn and unable to hold a consistent alignment.
• Stiff or heavy steering: If turning the wheel suddenly requires more effort, it could be due to failing internal valves in the rack, even if the fluid level is correct.

Buying a Used 2001 IS300 Steering Rack

A low-mileage, used OEM steering rack can be an excellent value compared to expensive new parts or potentially unreliable aftermarket options. Here’s what to look for.

• Verify the Part Number: The single most important step is to confirm you are buying part number 4425053020. Do not trust a listing that says it fits "2001-2005" models, as this is incorrect for the steering rack.
• Inspect the Bellows Boots: The rubber boots on both ends of the rack should be dry, clean, and free of rips or tears. Squeeze them firmly; if you feel or hear fluid sloshing inside, the internal seals are bad and the rack is no good.
• Check for Corrosion and Damage: Inspect the main body of the rack and the hydraulic line ports for heavy rust or physical damage. Ensure the threads on the line ports are clean and not cross-threaded.
• Assess the Inner Tie Rods: With the rack on a bench, try to push and pull the inner tie rods (the rods extending from each end) in and out of the rack body. There should be no clunking or noticeable play.
• Mileage Considerations: Steering racks on the IS300 often begin to fail between 100,000 and 150,000 miles. A used rack from a vehicle with less than 100,000 miles is ideal and likely has significant life left.

Cost Comparison

Prices can vary based on location and supplier, but this provides a general estimate for replacing a 2001 IS300 steering rack.

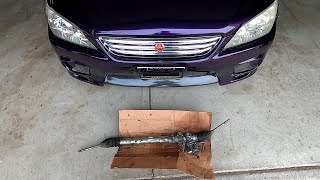

Replacement Overview and Key Procedures

Replacing the steering rack is an advanced DIY job that typically takes 4-6 hours. It requires lifting the front of the vehicle securely and working in a tight space.

Related Parts to Replace

• Outer Tie Rod Ends: It is highly recommended to replace the outer tie rod ends when installing a new rack. You will need an alignment anyway, so this is the perfect time.
• Power Steering Fluid: You will need 2-3 quarts of DEXRON II or III type Automatic Transmission Fluid (ATF) to refill and bleed the system.
• Crush Washers: The high-pressure line banjo bolt uses crush washers that should be replaced to ensure a leak-free seal.

Bleeding the Power Steering System (Crucial Step)

After installing the new rack, you must bleed all air from the system to prevent damage to the power steering pump. Failure to do so can cause immediate pump failure.

1. Fill the power steering reservoir with fresh ATF.
2. With the engine OFF and the front wheels lifted off the ground, slowly turn the steering wheel from full lock to full lock about 10-15 times. Watch the fluid level in the reservoir and add more as it drops.
3. Once the fluid level is stable, start the engine and let it idle.
4. Turn the wheel from lock to lock again, this time more quickly. Listen for any whining or groaning from the pump.
5. Check the fluid for foam or bubbles. If present, shut the engine off and let it sit for 30 minutes before repeating the process.
6. Once the fluid is clear and the pump is quiet, the system is bled. Lower the vehicle and check for leaks.

Torque Specifications

Using correct torque specs is critical for safety. While a full list is extensive, here are some key values:

• Steering Rack Mounting Bolts: Refer to a service manual, but typically around 80-95 ft-lbs.
• Outer Tie Rod End to Steering Knuckle: 36 ft-lbs (50 Nm)
• Steering Column Yoke to Rack Input Shaft: 26 ft-lbs (35 Nm)

Recalls and Technical Service Bulletins (TSBs)

As of early 2026, there are no specific NHTSA recalls or TSBs directly addressing the steering rack for the 2001 Lexus IS300. Recalls for this model year primarily concern aftermarket lighting and other non-steering components.
