Prius & Corolla Steering Rack Guide: Noises, Failures, and Fitment (2016-2025)
This guide covers the common failures, symptoms, and critical compatibility details for the electric power steering rack in the 2016-2025 Toyota Prius, Prius Prime, Corolla, and Prius AWD-e.
- Compatibility is critical and depends on the vehicle's original factory wheel size; using the wrong part will not work.
- Common failure symptoms include clunking noises when turning, loose or sloppy steering feel, and a loss of power assist.
- After replacement, a four-wheel alignment and an electronic 'Zero Point Calibration' are mandatory for the system to function correctly.
- A used OEM steering rack is a viable, cost-effective alternative to expensive new parts, provided it is inspected carefully for damage.
Critical Compatibility Information: Read Before Buying
Warning: Toyota used several different steering racks across these models, and they are NOT interchangeable. Fitment depends entirely on the original factory wheel size. Ordering the wrong part will result in wasted time and money. Always verify your vehicle's original wheel size before purchasing a replacement rack.
The part number is the most reliable way to ensure you get the correct steering rack. Here’s a breakdown of known part numbers and their specific applications based on the initial data and search findings:
| Part Number(s) | Vehicle Fitment Details |
|---|---|
| 45510-47200, 45510-47210 | Fits 2023-2025 Toyota Prius and Prius Prime models originally equipped with 17-inch wheels. |
| 45510-02360, 45510-47170 | Fits 2016-2022 Toyota Prius (FWD) with 17-inch wheels. Also fits 2019-2025 Toyota Corolla models (SE, XSE, and Hatchback) with 18-inch wheels. |
| 45510-12590 | Fits 2023-2025 Toyota Corolla (SE, 1.8L/2.0L) and Corolla Hatchback with 18-inch wheels. |
| 45510-47160 | Fits Toyota Prius models with 15-inch wheels and VINs where the 7th and 8th digits are 'FU'. Also fits Prius Prime models where the 7th and 8th digits are 'FP', and Prius AWD-e models. |
Note: The term 'Steering Gear Poppet Rack' appears to be an industry-specific or internal cataloging term. For consumers and technicians, this part is known as the Electric Power Steering Rack or Steering Gear Assembly.
Symptoms of a Failing Steering Rack
A failing electric power steering rack can present several distinct symptoms. Ignoring them can lead to a complete loss of power assist, making the vehicle very difficult to steer.
- Clunking or Knocking Noises: This is one of the most common signs. You may hear a clunk, knock, or grinding sound when turning the steering wheel, especially at low speeds or when stationary. This indicates excessive wear or play in the internal gears of the rack.
- Loose or Sloppy Steering: If the steering feels vague, has excessive play, or the car wanders on a straight road, the rack may be worn. You might find yourself constantly making small corrections to keep the car in its lane.
- Steering Wheel Not Returning to Center: After making a turn, the steering wheel should naturally start to return to the center position. If it doesn't, or returns very slowly, it can be a sign of binding within the steering rack.
- Stiff or Heavy Steering: The electric motor provides steering assist. If the motor fails or there's an internal issue, the steering can become intermittently or permanently heavy and difficult to turn, especially at parking lot speeds. Some owners of 2019 Corollas have reported the steering wheel getting stuck or hard to turn.
- Power Steering Warning Light: A failure in the EPS system will often trigger a warning light on your dashboard. If this light comes on, you should have the vehicle scanned for diagnostic trouble codes (DTCs).
Known Issues, TSBs, and Recalls
While there are no widespread recalls specifically for steering rack failure on these exact models, some related issues and recalls for other Toyota vehicles are worth noting.
- 2023-2024 Corolla & Corolla Cross Recall: Toyota recalled some 2023-2024 models for a defective steering intermediate shaft, which connects the steering wheel to the rack. A crack in a universal joint could lead to abnormal steering feel or, in the worst case, a complete loss of steering.
- Steering Recalibration TSB: Toyota has issued Technical Service Bulletins (TSBs) for other models like the RAV4 regarding abnormal steering sensations like pulling or drifting. The fix often involves a steering angle sensor recalibration, which may be necessary after a battery disconnect or wheel alignment. This procedure is also relevant after replacing the steering rack.
Buying a Used Steering Gear Poppet Rack
A used OEM steering rack can be a cost-effective and reliable alternative to an expensive new unit, especially when compared to unproven aftermarket brands. Here’s what to look for:
- Verify the Part Number: This is the most critical step. Match the part number from your original rack to the used part. If you can't find the part number, use your vehicle's VIN and original wheel size to confirm compatibility with the seller.
- Inspect the Housing: Check the aluminum housing for any cracks, heavy corrosion, or signs of impact damage. A bent or damaged housing means the part is unusable.
- Check the Boots: The rubber or plastic boots at each end of the rack protect the inner tie rods. Ensure they are not torn, cracked, or leaking grease. Damaged boots allow dirt and water in, which will quickly destroy the rack's internal components.
- Examine Electrical Connectors: Inspect the electrical connectors for the motor and sensors. They should be clean, with no bent or broken pins. Corroded or damaged connectors can cause intermittent electrical faults.
- Mileage vs. Condition: While lower mileage is generally better, the overall condition is more important. A rack from a higher-mileage vehicle that shows no signs of damage or excessive wear can still be a good part. These racks are generally robust, and failures are not strictly tied to a specific mileage range.
- Source Vehicle Information: If possible, find out about the vehicle the part came from. A part from a vehicle that had a front-end collision carries a higher risk of unseen damage.
Cost Breakdown
The cost to replace a steering rack can vary significantly based on the part source and labor rates.
| Item | Estimated Cost | Notes |
|---|---|---|
| New OEM Part | $550 - $1,000+ | Prices from Toyota dealerships are highest but guarantee correct fitment. |
| New Aftermarket Part | $300 - $700 | Quality can be inconsistent. May not have the same feel or longevity as OEM. |
| Used OEM Part | $150 - $400 | Offers OEM quality and fitment at a significant discount. |
| Remanufactured Part | $400 - $800 | A rebuilt OEM core. Quality depends on the rebuilder. |
| Shop Labor | $500 - $850 | Typically 4-6 hours of labor. Includes post-installation alignment and calibration. |
| Total Replacement Cost | $1,300 - $1,850+ (New OEM) | Using a used OEM part can bring the total cost down significantly. |
Installation and Calibration
Replacing the steering rack is a job for an experienced DIYer or a professional technician. It typically involves supporting the engine and lowering the front subframe for access.
Pro Tip: It is highly recommended to replace the outer tie rod ends when replacing the steering rack. The old ones have to be removed anyway, and replacing them ensures the entire steering linkage is fresh.
After the new rack is installed, two procedures are mandatory:
- Wheel Alignment: A four-wheel alignment is required to ensure the vehicle tracks straight and to prevent premature tire wear.
- Zero Point Calibration: The Electric Power Steering system needs to know the straight-ahead position of the steering wheel. This is done through a "Zero Point Calibration" procedure using a professional scan tool like Toyota's Techstream. Skipping this step can result in a crooked steering wheel, steering that feels strange, or warning lights on the dash.
Frequently Asked Questions
How do I know for sure which steering rack my car needs?
The best way is to have a Toyota dealer look up the correct part number using your VIN. The second-best way is to match the part number off your original rack. Failing that, you must know the original wheel size your car came with from the factory (e.g., 15", 17", or 18") and use the compatibility chart in this guide.
Can I drive my car with a bad steering rack?
It is not recommended. While you may still be able to steer the vehicle if the power assist fails, it will require significantly more effort, which can be dangerous in an emergency. If the rack has excessive internal play or is making loud clunking noises, there is a risk of a component breaking, which could lead to a complete loss of steering control.
Does a replacement steering rack need to be programmed?
It doesn't require programming in the traditional sense, but it absolutely requires a "Zero Point Calibration." This procedure calibrates the steering angle sensor so the car's computer systems (including stability control) know which way the wheels are pointed. This must be done with a compatible diagnostic scan tool after the rack is installed and the wheels are aligned.
Is a clunking noise from the front end always the steering rack?
No. While a clunking noise when turning is a classic symptom of a bad steering rack, it can also be caused by other worn suspension components like sway bar links, ball joints, control arm bushings, or bad strut mounts. A thorough inspection is needed to pinpoint the exact source of the noise.
Helpful Videos
Technical Specifications

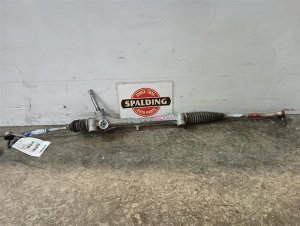

OEM Part Numbers: 45510-47200 45510-47210 45510-02360 45510-12590 45510-47160 45510-47170
Electric Power Steering (EPS) Rack and Pinion Assembly. Includes inner tie rods and boots.
