2019-2025 Mazda 3 & CX-30 Steering Knuckle: Decoding Turbo vs. Non-Turbo Fitment
This guide explains the critical differences between steering knuckles for the Mazda 3 and CX-30, helping you diagnose noises and avoid buying the wrong part.
- Compatibility is critical: There are three different knuckles for the Mazda 3 (Non-Turbo), Mazda 3 (Turbo), and CX-30. They are not interchangeable.
- A bent knuckle is the most common failure, caused by impacts like potholes or curbs. The top symptom is a persistent pull and uneven tire wear that an alignment can't fix.
- Clunking noises from the front end are often misdiagnosed. Check for a faulty strut mount (TSB SA-020/20) or loose caliper bolts (Recall 4420F) before replacing the knuckle.
- A wheel alignment is absolutely mandatory after replacing a steering knuckle to ensure safety and prevent immediate tire damage.
Key Compatibility Warnings: Read Before Buying
CRITICAL: Three different, non-interchangeable front steering knuckles are used on the 2019-2025 Mazda 3 and 2020-2025 Mazda CX-30. Ordering the wrong part will result in improper fit, incorrect suspension geometry, and an unsafe vehicle that cannot be aligned.
- 2019-2025 Mazda 3 (Naturally Aspirated / Non-Turbo): Uses a specific knuckle for models WITHOUT the 2.5L turbo engine. This part fits both Front-Wheel Drive (FWD) and All-Wheel Drive (AWD) non-turbo models.
- 2021-2025 Mazda 3 (2.5L Turbo): Uses a unique knuckle designed only for models WITH the 2.5L turbo engine. These models are always AWD.
- 2020-2025 Mazda CX-30: Uses its own specific knuckle. This part fits all CX-30 models, including both FWD and AWD versions.
Always verify the part number or confirm fitment with the seller using your vehicle's VIN before purchasing.
Symptoms of a Failing Steering Knuckle
A steering knuckle has no moving parts and does not wear out on its own. Failure is almost always caused by an impact, like hitting a deep pothole, sliding into a curb, or a collision. The symptoms can often be mistaken for other suspension issues, so careful diagnosis is key.
1. Persistent Pulling and Uneven Tire Wear
This is the most common sign of a bent steering knuckle. If the vehicle constantly pulls to one side even after multiple wheel alignments, a bent knuckle is the likely culprit. This misalignment will hold the wheel at an incorrect angle, causing rapid wear on the inner or outer edge of one tire.
2. Off-Center or Vibrating Steering Wheel
After an impact, you may notice the steering wheel is crooked when driving straight. A bent knuckle can also cause a vibration or wobble felt through the steering wheel, especially at higher speeds.
3. Noises: Clunks, Pops, or Grinding
While the solid metal knuckle itself doesn't make noise, a damaged one puts stress on connected parts, causing them to fail and become noisy.
- Clunking or Popping: A clunking sound when turning at low speeds or going over bumps often points to a worn ball joint, which connects the knuckle to the control arm. However, on these specific Mazda models, a front-end clunk is frequently caused by a faulty strut mount, as noted in Mazda TSB SA-020/20. This should be investigated before replacing the knuckle. 🎬 See how to replace the front strut and mount
- Grinding or Humming: A continuous grinding, humming, or growling noise that changes with vehicle speed is a classic symptom of a bad wheel bearing. The wheel bearing is pressed into the knuckle and can be damaged during an impact that also damages the knuckle.
- Squealing: A high-pitched squeal when turning could be a sign that a bent knuckle has altered the alignment, causing other components to make noise.
Known Issues, TSBs, and Recalls
As of mid-2026, there are no recalls or widespread Technical Service Bulletins (TSBs) for steering knuckle failure on the 2019-2025 Mazda 3 or Mazda CX-30. Failures are typically isolated incidents from road impacts. However, there are related issues that can cause similar symptoms and lead to misdiagnosis.
- TSB SA-020/20 (and related bulletins): Some vehicles may exhibit a rattle or clunk from the front suspension over bumps. Mazda has identified this is often caused by the front strut mounting rubber, not the knuckle or ball joint. 🎬 Watch: How to diagnose and fix front end rattles
- Recall 4420F (2020 models): Certain 2020 Mazda 3 and CX-30 vehicles were recalled for improperly tightened front brake caliper mounting bolts. A loose caliper can cause a rattling or grinding noise that could be mistaken for a bad bearing or knuckle.
- TSB for Hood Prop Rattle: A rattling noise that sounds like it's coming from the dashboard or front suspension can sometimes be the hood prop rod vibrating in its holder.

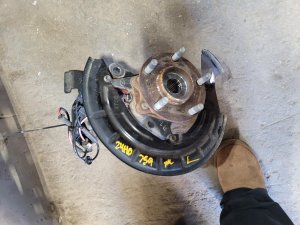

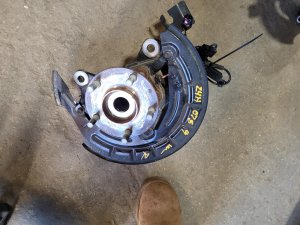

Buying a Used Steering Knuckle
Since new aftermarket knuckles for these models are not widely available, a recycled OEM part is a common and cost-effective choice. A used OEM knuckle is made to Mazda's exact specifications for strength and geometry, ensuring a safe and proper fit. Here’s what to look for:
Inspection Checklist
- Check for Cracks and Bends: This is the most important step. Carefully inspect the entire part for any visible cracks, especially around the mounting holes for the strut, ball joint, and brake caliper. Compare it to photos of a new part to spot any signs of bending or deformation.
- Examine Mounting Surfaces: The tapered hole for the ball joint stud and the mounting points for the strut and caliper must be clean, round, and free of corrosion or distortion. Damage in these areas can prevent other parts from seating correctly.
- Check Included Components: Many used knuckles are sold with the wheel hub and bearing still installed. This can be a good value, but you must assume the bearing is not usable. Plan to have a machine shop press out the old bearing and press in a new one. Trying to reuse an old bearing is risky and can lead to doing the job twice.
- Verify Part Numbers: Double-check that the part number is correct for your vehicle (Mazda 3 vs. CX-30, and Turbo vs. Non-Turbo). If in doubt, ask the seller to verify fitment with your VIN.
Pro Tip: Mileage is not a major concern for the knuckle itself. A part from a high-mileage, accident-free car is often fine. Focus on the physical condition and signs of impact damage rather than the odometer reading of the donor car.
Replacement Overview and Torque Specs
Replacing a steering knuckle is an advanced DIY job that requires a comprehensive set of tools. The process involves disconnecting the entire brake assembly, axle nut, tie rod end, lower ball joint, and strut.
🎬 Watch: How to remove a steering knuckleWarning: A professional wheel alignment is mandatory after replacing a steering knuckle. Skipping this step will result in unsafe handling, crooked steering, and will destroy your tires in a very short time.
| Component | Torque Specification | Notes |
|---|---|---|
| Axle Nut | ~180 ft-lbs (244 N·m) | Must use a new nut. Do NOT use an impact wrench for final tightening; this can damage the wheel bearing. Always verify with a factory service manual. |
| Strut-to-Knuckle Pinch Bolt | 45-50 ft-lbs (61-68 N·m) | Connects the bottom of the strut to the knuckle. |
| Lower Ball Joint Pinch Bolt | 35-45 ft-lbs (47-61 N·m) | Secures the ball joint stud into the knuckle. |
| Outer Tie Rod End Nut | 40-43 ft-lbs (54-58 N·m) | Connects the steering tie rod to the knuckle. |
| Brake Caliper Bracket Bolts | ~65-75 ft-lbs (88-102 N·m) | This is an estimate. Always verify with a service manual. |
| Wheel Lug Nuts | 80-108 ft-lbs (108-147 N·m) | Tighten in a star pattern. |
Cost of Replacement
Replacing a steering knuckle involves significant labor costs in addition to the part itself.
| Item or Service | Estimated Cost | Notes |
|---|---|---|
| New OEM Knuckle | $200 - $300 | Price varies by part number. |
| New Aftermarket Knuckle | Not Widely Available | As of mid-2026, options from major aftermarket brands are very limited. |
| Used OEM Knuckle | $100 - $175 | A cost-effective option. Often includes the hub/bearing, which should be replaced. |
| Shop Labor (Part Replacement) | $230 - $340 | Labor to replace one knuckle. Does not include bearing replacement. |
| Wheel Bearing (Part) | $50 - $100 | It is highly recommended to install a new wheel bearing at the same time. |
| Wheel Alignment | $100 - $200 | Mandatory after replacement. |
Frequently Asked Questions (FAQ)
Is the steering knuckle the same as a spindle?
The terms are often used interchangeably, but there is a technical difference. A spindle has an integrated shaft that the wheel bearings ride on. These Mazda models use a steering knuckle, which has a large hole where a separate, bolt-in wheel hub and bearing assembly is mounted.
Can I just replace the ball joint instead of the whole control arm or knuckle?
The lower ball joint is pressed into the lower control arm, not the knuckle. On these models, Mazda typically sells the control arm with the ball joint as one complete assembly. If the tapered hole in the knuckle where the ball joint stud sits is damaged or worn, the entire knuckle must be replaced.
Do I need to replace knuckles in pairs?
No. Unlike struts or brakes, a steering knuckle is not a wear item and does not need to be replaced in pairs. You only need to replace the side that is damaged.
How can I tell if my 2021+ Mazda 3 has a turbo engine?
The easiest way is to check the badging on the trunk, which will typically say "2.5 Turbo". You can also check your vehicle's original window sticker or use a VIN decoder to confirm your engine type. This is essential for ordering the correct knuckle.
Helpful Videos
Technical Specifications
OEM Part Numbers: BCKA-33-021 BCKE-33-021 BDHW-33-021 BDHW33031 BDNF-33-021 BDNF-33-031 BDTS-33-02Y BDTS-33-03Y BDTT-33-02Y BDTT-33-03Y DGH9-33-02Y DGH9-33-03Y BCKA-33-031 BCKE-33-031
Material: Cast Iron or Cast Aluminum. The knuckle is sold as a bare component; the wheel hub and bearing assembly must be purchased separately or transferred from the original knuckle.
