2002-2007 Jeep Liberty Sun Visor: Fixing Droops, Broken Clips & Bulb Versions

Symptoms of Failure

A failing sun visor on a Jeep Liberty will show obvious physical symptoms. Since it's a simple interior component, diagnosis is straightforward.

1. Sun Visor Droops or Won't Stay Up

This is the most common failure. Over time, the internal friction mechanism in the main pivot rod wears out, losing its ability to hold the visor's weight. The visor will constantly droop into your line of sight, especially when driving over bumps. This is typically caused by normal wear and tear and can be accelerated by frequent, rough adjustments.

2. Broken Mounting Post or Clip

The plastic components of the visor and its corresponding clip can become brittle with age and exposure to sun and heat. The main mounting post where the visor pivots can crack, or the smaller support clip near the rearview mirror can break, leaving the visor unsecured on one end. These clips are a very common failure point and are available as separate replacement parts.

3. Vanity Mirror Light Not Working

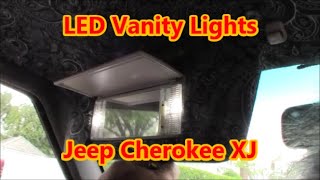

If the vanity light fails to turn on, the issue could be a burnt-out bulb, a faulty switch in the mirror cover mechanism, or a problem with the electrical connection. The bulbs are replaceable, and the fix can be as simple as prying off the lens cover and swapping the bulb. 🎬 See how to upgrade your vanity mirror with LED bulbs. The bulb type is typically a 28mm or 29mm fuse-style bulb, such as a 6614F.

4. Cracked Mirror or Damaged Fabric

Physical damage like a cracked mirror or torn/stained fabric is usually the result of impact or improper cleaning. While this doesn't affect the primary function of blocking the sun, it can be an aesthetic issue. In these cases, the entire visor assembly must be replaced.

Variant Differences: Single-Bulb vs. Two-Bulb Vanity Lights

A critical point of confusion for 2002-2007 Jeep Liberty owners is the type of illuminated vanity mirror equipped in their vehicle. Not all visors are interchangeable.

• 2002-2003 Models: These years were available with both single-bulb and two-bulb illuminated visors. It is essential to check your existing visor before ordering a replacement.
• 2004 Models: A mid-year change occurred. For 2004 models, there are different visors for vehicles built before February 10, 2004, and those built on or after that date. The later models use the same visor as the 2005-2007 models.
• 2005-2007 Models: These years consistently use a single-bulb illuminated visor.

Buying a Used Sun Visor

A used OEM sun visor is often the best value, providing a perfect match for color, fabric, and electrical connections. Here’s what to inspect before buying.

1. Confirm Bulb Count and Year Breaks: Double-check the single vs. two-bulb compatibility for your specific model year, paying close attention to the 2004 mid-year split.
2. Test the Pivot Tension: Ask the seller to confirm that the visor's main pivot is stiff and holds its position. It should not feel loose or floppy. This is the primary reason for replacement, so you want to ensure the used part is in good working order.
3. Inspect the Mounting Points: Carefully examine the plastic mounting post for any hairline cracks or stress marks. This is a common weak point. Also, check the condition of the separate support clip if it's included.
4. Verify Interior Color: Jeep Liberty models of this era came with several interior colors, primarily gray and beige (tan). To ensure a perfect match, find your vehicle's interior trim code. This is typically found on a sticker in the driver's side door jamb and is often labeled "TRM".
5. Check the Mirror and Cover: Ensure the vanity mirror is not cracked and that the sliding or hinged cover that activates the light moves freely and is not broken.

Step-by-Step Replacement Guide

Replacing a sun visor on a 2002-2007 Jeep Liberty is a simple DIY job that typically takes less than 15 minutes.

1. Tools Needed: Phillips head screwdriver or a Torx bit screwdriver (depending on the screws used in your specific vehicle). A small flathead screwdriver may be needed to remove screw covers.
2. Remove the Old Visor:
   • Swing the visor down. You will see a plastic cover over the mounting base where it meets the headliner. Gently pry this cover off to expose the mounting screws.
   • Unscrew the two or three screws holding the visor's pivot mount to the roof.
   • As you lower the visor, carefully disconnect the small electrical plug for the vanity light. The wire is short, so don't pull forcefully.
   • Unlatch the other end of the visor from its support clip. The visor is now free.
3. Install the New Visor:
   • Connect the electrical plug on the replacement visor to the vehicle's wiring harness.
   • Align the new visor's mounting base with the screw holes in the roof.
   • Install and tighten the mounting screws. Do not overtighten, as this can crack the plastic base.
   • Snap the plastic trim cover back over the mounting base.
   • Swing the visor up and secure it in its support clip. Test the vanity light and the pivot tension.

Cost Comparison

Official Recalls and Technical Service Bulletins (TSBs)

There have been no major recalls specifically for sun visor mechanical failure on the 2002-2007 Jeep Liberty. However, other Jeep models from a later era had a recall (P36 / NHTSA 14V-391) related to sun visor wiring shorting out after service, which could pose a fire risk. While this recall does not apply to the 2002-2007 Liberty, it highlights the importance of carefully handling the vanity light wiring during replacement.
