2012-2019 Fiat 500 Front Control Arm: Diagnosing Clunks and Tackling the Bumper-Off Replacement

Symptoms of a Failing Fiat 500 Control Arm

A worn control arm on a Fiat 500 typically fails in one of two ways: the rubber bushings crack and tear, or the built-in ball joint develops excessive play. These failures produce distinct noises and handling problems that can worsen over time.

Clunking or Knocking Noises

The most common symptom is a clunking or knocking sound from the front suspension. This noise is most noticeable when driving at low speeds over bumps, potholes, or uneven pavement. The sound is caused by the worn ball joint moving excessively in its socket or the metal sleeve of a failed bushing hitting against the subframe. You may also hear a pop or clunk when initiating a sharp turn or during hard braking as the suspension load shifts.

Steering and Handling Issues

A failing control arm can make the car's steering feel vague, loose, or unresponsive. You might notice the car 'wandering' or pulling to one side, requiring constant small corrections to the steering wheel to keep it driving straight. In severe cases, you might feel a shimmy or vibration through the steering wheel, especially as your speed changes. Instability when braking, where the car feels like it wants to dive or sway, can also be a sign of a badly worn control arm bushing.

Uneven Tire Wear

Because a bad control arm allows the wheel to move out of its correct alignment, it almost always leads to premature and uneven tire wear. Typically, you will see excessive wear on the very inside or outside edge of the tire tread. This is a clear sign that the wheel is no longer being held vertically to the road surface.

Known Issues, TSBs, and Recalls

As of early 2026, there are no specific NHTSA safety recalls or Technical Service Bulletins (TSBs) for the front suspension control arms on the 2012-2019 Fiat 500. However, suspension problems are a frequently reported issue by owners, particularly on earlier models from 2012-2015. One owner filed a complaint with the NHTSA regarding a loud metallic sound over bumps, citing reports of ball joint and control arm separation. While there are official recalls for other Fiat 500 components like the manual transmission clutch and TPMS system, the suspension is not covered by a recall.

Buying a Used Suspension Control Arm

Given the extremely high cost of a new OEM control arm, a used OEM part is an excellent value for most owners. A recycled OEM arm was manufactured to Fiat's original quality and material standards, often making it a more durable choice than a cheap, new aftermarket part. Here’s what to look for:

• Physical Inspection: The most important areas to inspect are the rubber bushings and the ball joint boot. The two rubber bushings should be intact, without any major cracks, tearing, or separation from the metal sleeve. The rubber boot covering the ball joint should be free of rips or tears. A torn boot allows grease to escape and dirt to enter, causing rapid wear of the joint.
• Check for Bends or Damage: Inspect the steel arm itself for any signs of bending, heavy scraping, or impact damage. A control arm from a vehicle involved in a collision may be compromised and should be avoided.
• Mileage and Wear: Control arm failure is often related to mileage and driving conditions. Failures can start to appear around 60,000-80,000 miles, though some fail earlier. When buying used, look for a part from a lower-mileage vehicle if possible. However, a visually sound arm from a higher-mileage car is still a viable option if the bushings and ball joint boot are in good condition.

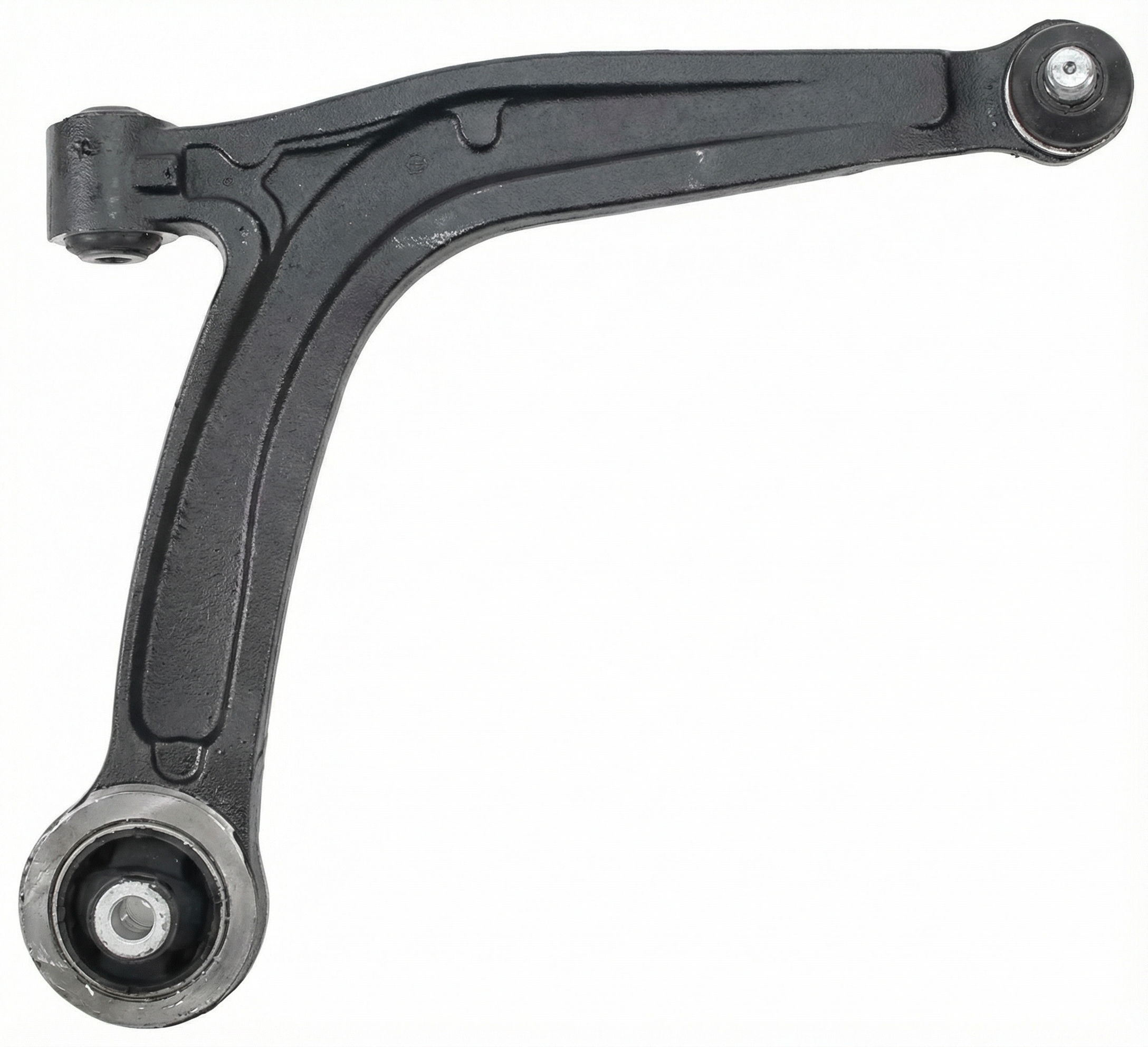

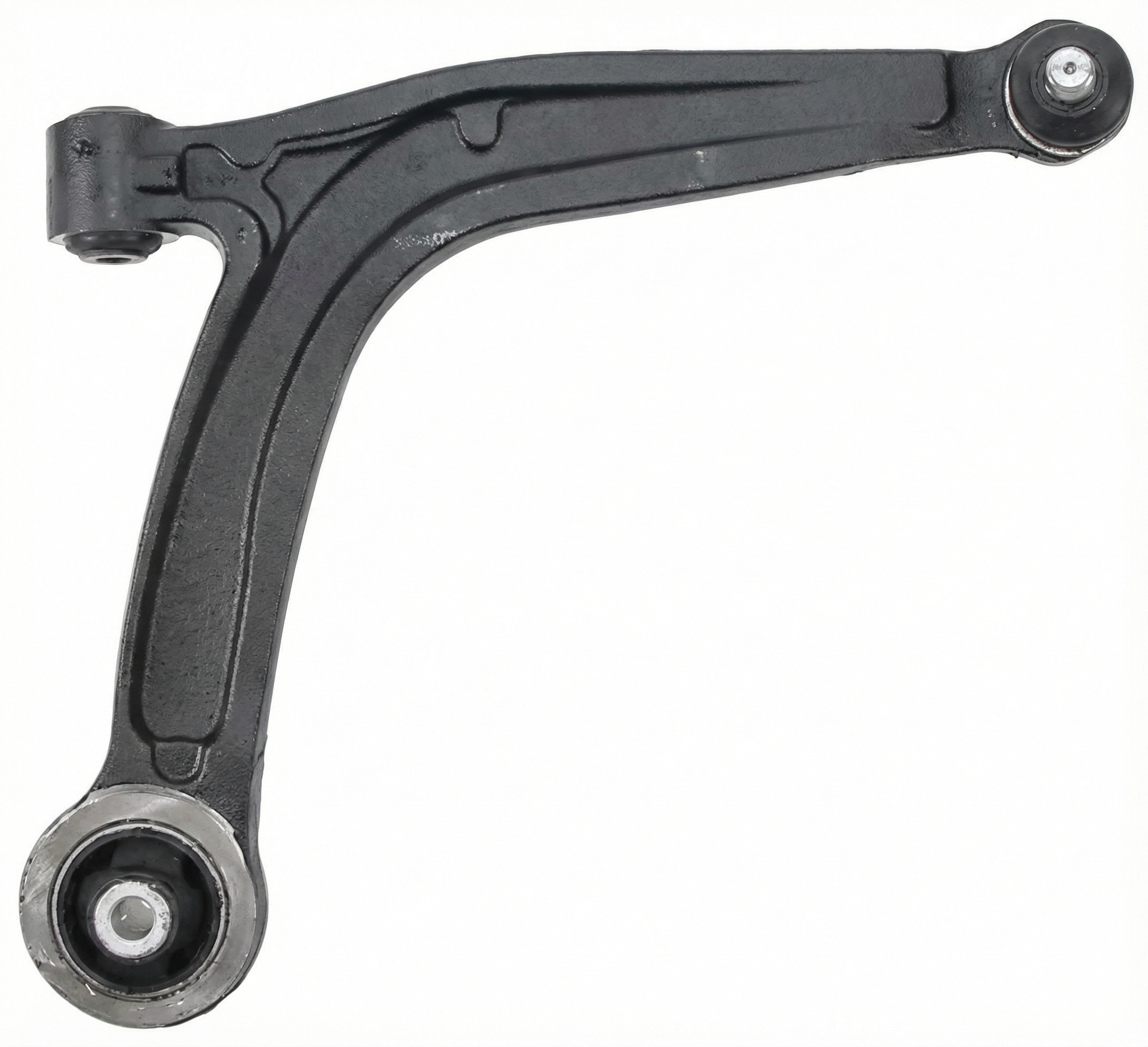

• OEM vs. Aftermarket: A used OEM Mopar arm is often superior to a low-cost new aftermarket arm in terms of fit, bushing material quality, and overall longevity. The original part number is 68245040AC, which replaces several older numbers like 68191508AD.

Replacement Overview & Special Procedures

Replacing the front control arm on a Fiat 500 is a more involved job than on many other vehicles. The primary complication is that the front bumper cover and a lower structural brace must be removed to access the forward control arm mounting bolt. This adds significant time and complexity to the job.

Key Steps:

1. Safely lift the vehicle and remove the front wheel.
2. Remove the plastic wheel arch liner.
3. Remove the front bumper cover. This involves several screws and clips in the wheel wells and along the top and bottom of the bumper.
4. Remove the lower structural brace that runs across the front of the subframe to gain access to the front control arm bolt.
5. Loosen and remove the pinch bolt that secures the ball joint to the steering knuckle.
6. Remove the two main bolts that secure the control arm bushings to the subframe.
7. Installation is the reverse of removal.

Torque Specs

• Ball Joint Pinch Bolt: 48 ft-lbs (65 Nm).
• Control Arm to Subframe Bolts: A definitive factory spec is not widely published. However, a commonly used value is approximately 45 ft-lbs (61 Nm). The correct tightening procedure (at ride height) is more critical than the exact torque value.
• Wheel Lug Nuts: 63 ft-lbs (85 Nm).

An alignment is highly recommended after replacing a control arm to ensure proper handling and prevent tire wear.

Cost Breakdown

The cost of replacing a Fiat 500 control arm varies dramatically based on the parts you choose and who performs the labor. The complex installation requiring bumper removal increases labor costs compared to a more straightforward design.
