Fixing Front-End Clunks in Your 2002-2012 Jeep Liberty & 2007-2011 Dodge Nitro Stabilizer Bar

Symptoms of a Failing Stabilizer Bar

When a stabilizer bar system fails, it's rarely the steel bar itself that breaks. The problem almost always lies with the components that connect it to the vehicle: the stabilizer bar links (or end links) and the rubber or polyurethane bushings. These parts wear out over time, leading to noticeable symptoms.

• Clunking or Rattling Noises: This is the most common symptom. You'll hear a distinct clunk, knock, or rattle from the front end, especially when driving over bumps 🎬 Watch this video to hear the clunking noise in action., uneven pavement, or turning into a driveway. The noise comes from worn-out end links or bushings allowing the metal bar to move and contact other suspension components.
• Increased Body Roll and Poor Handling: The vehicle may feel less stable and lean more than usual when cornering. You might notice a "loose" or less responsive feeling in the steering.
• Visible Wear or Damage: A visual inspection may reveal cracked, deteriorated, or missing rubber bushings where the bar mounts to the frame. The ball joints on the end links may have torn rubber boots or feel loose when moved by hand.

Vehicle Generations & Part Number Guide

The Jeep Liberty covered in this guide spans two distinct generations (KJ and KK), and the Dodge Nitro is built on the later KK platform. The front stabilizer bar and its related components are different between these generations. It is critical to identify the correct parts for your specific vehicle.

Generation 1: 2002-2007 Jeep Liberty (KJ Platform)

This first generation of the Jeep Liberty uses a specific set of front stabilizer bar components.

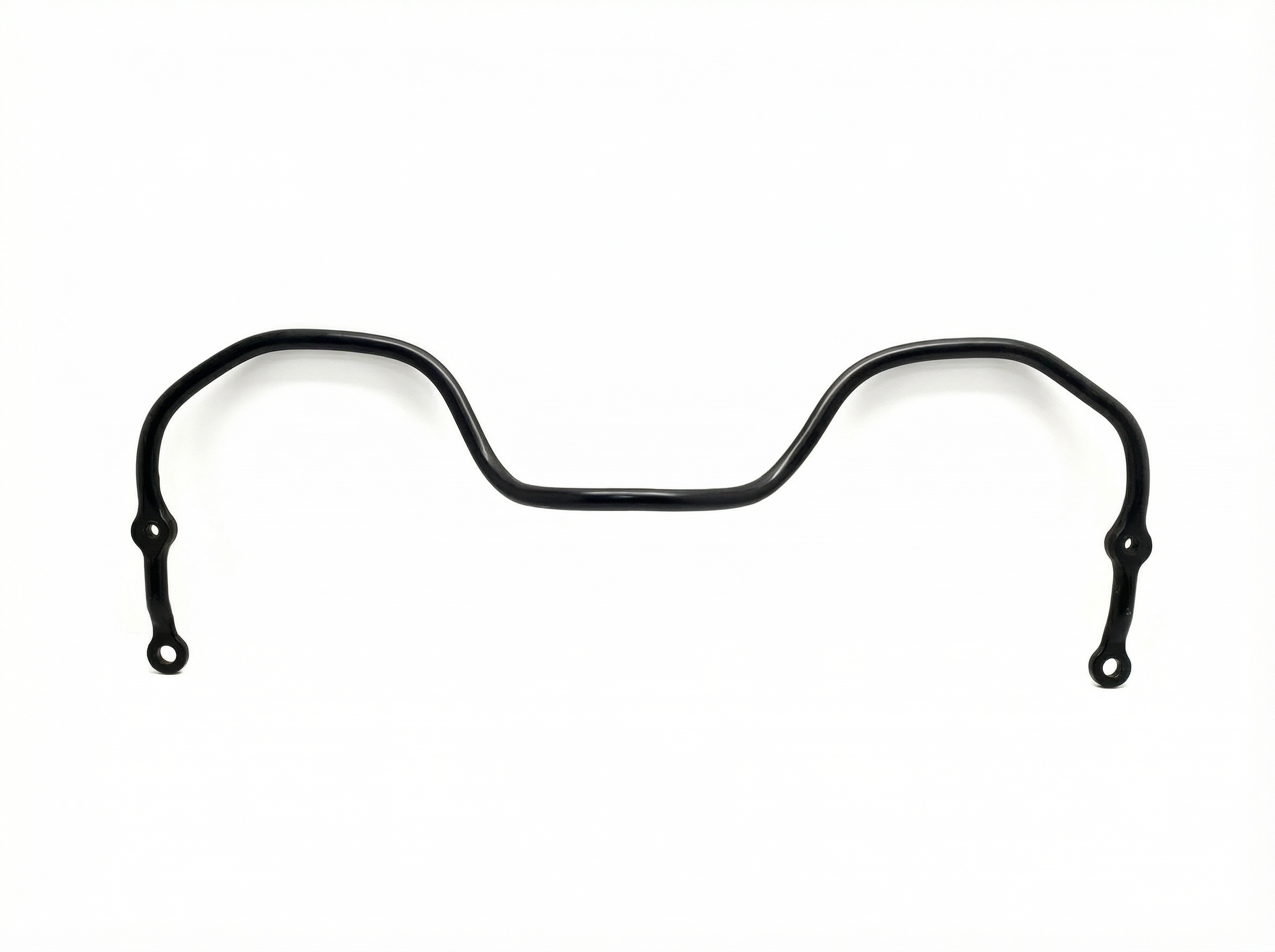

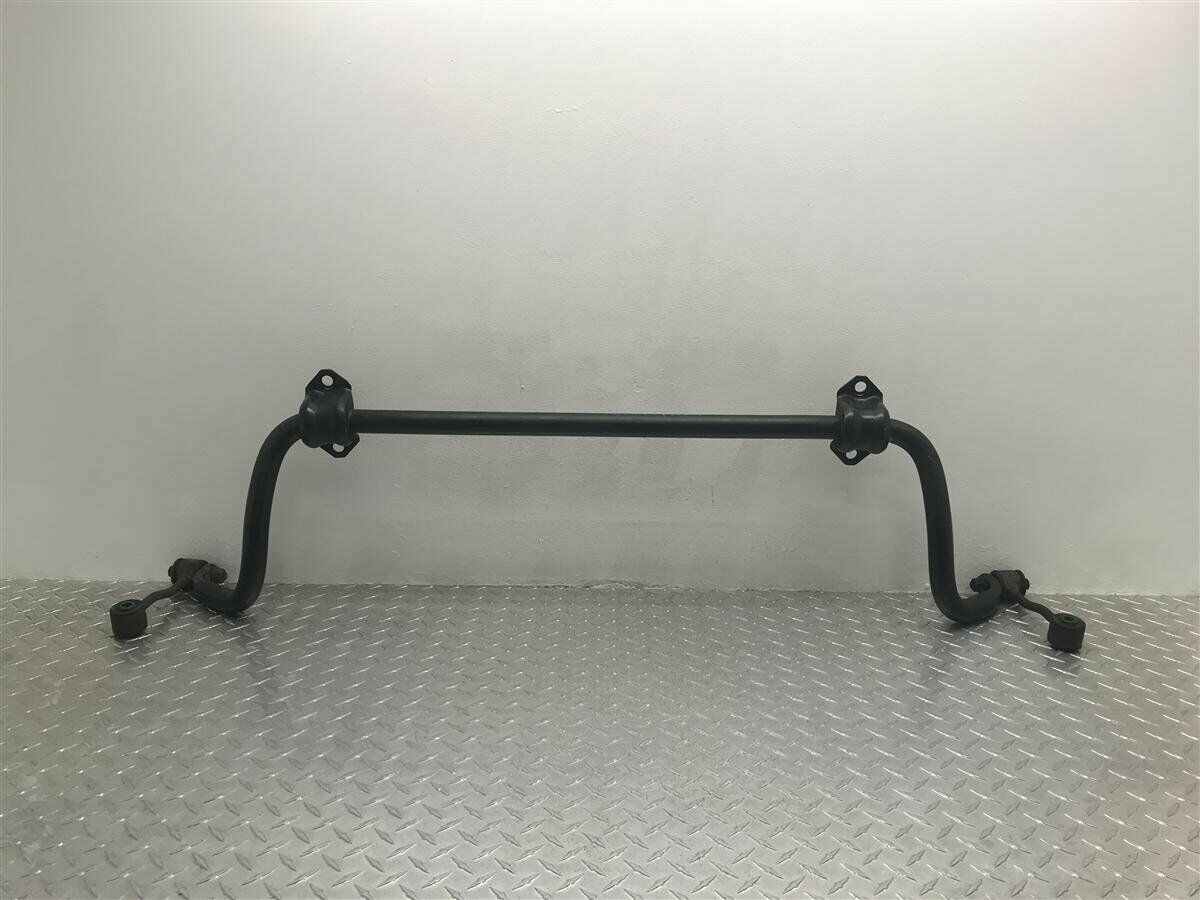

• Front Stabilizer Bar: The correct OEM part number is 52088660AA. This bar fits all trim levels, including Sport, Limited, and Renegade.
• Front Stabilizer Bar Links: These connect the ends of the stabilizer bar to the lower control arms.
🎬 See a step-by-step guide for replacing links on 02-07 models.
• Front Stabilizer Bar Bushings: These rubber mounts secure the stabilizer bar to the vehicle's frame. OEM part number is 52088778AB.

Generation 2: 2008-2012 Jeep Liberty (KK Platform) & 2007-2011 Dodge Nitro

The second-generation Liberty and the Dodge Nitro share the same chassis and front suspension components.

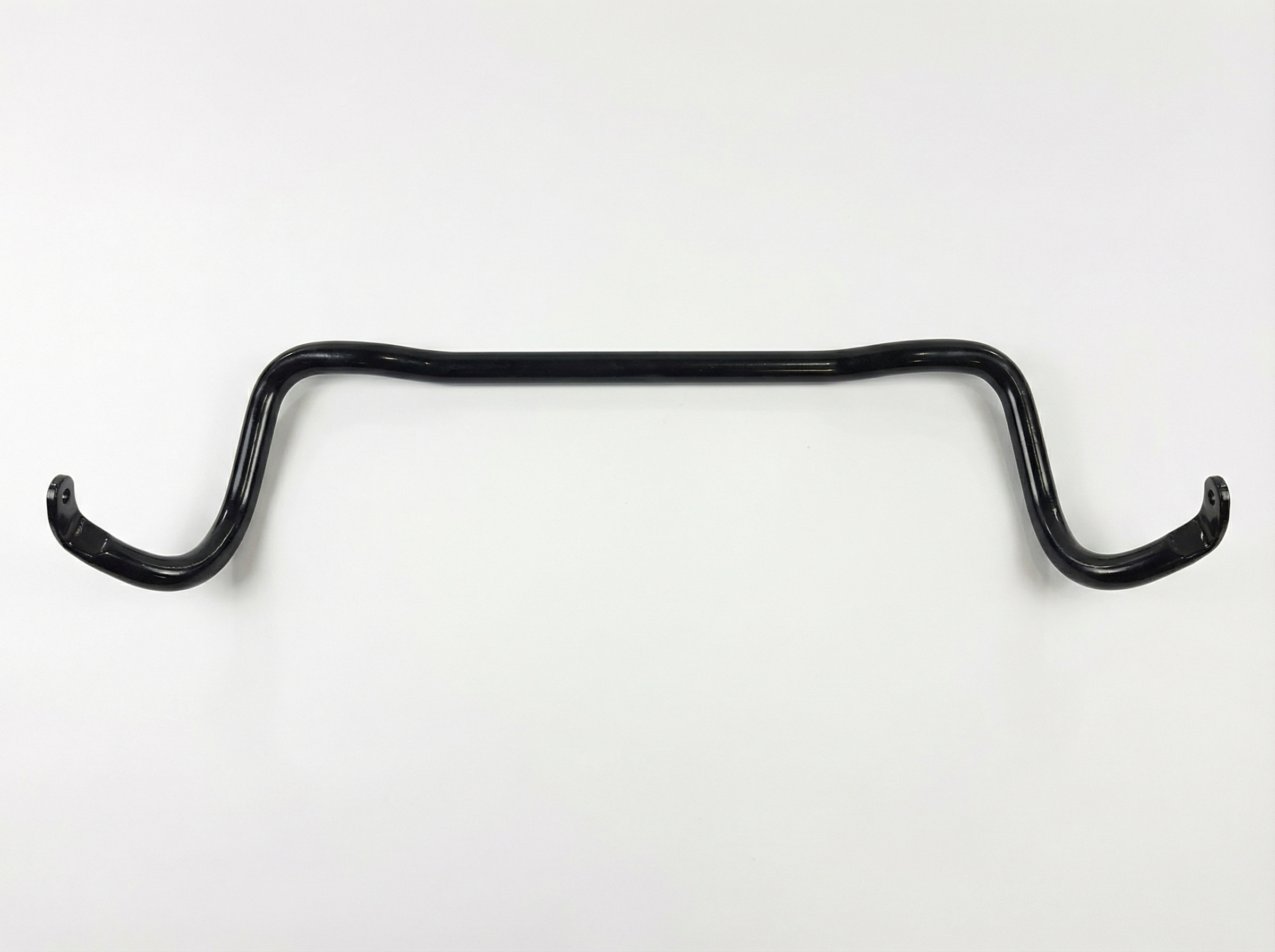

• Front Stabilizer Bar: The most current OEM part number is 68070133AA. This part supersedes (replaces) older numbers like 52125327AB and 52109876AC. This single part number fits all trim levels for both the Liberty (Sport, Limited) and Nitro (SE, SXT, SLT, R/T).
• Front Stabilizer Bar Links: OEM part number is 52125295AC.
🎬 Watch this walkthrough for replacing links on 08-12 vehicles.
• Front Stabilizer Bar Bushings: OEM part number is 52125324AC.

Known Issues, TSBs, and Recalls

There are no known recalls or Technical Service Bulletins (TSBs) from the NHTSA specifically for the front stabilizer bar, its links, or bushings on the 2002-2012 Jeep Liberty or 2007-2011 Dodge Nitro. The primary issue with these components is simply age-related wear and tear.

However, there were related suspension recalls for the Jeep Liberty:

• NHTSA 18V-278 (U38) & 12V-085 (L27): These recalls were for excessive corrosion and potential fracture of the rear lower control arms on 2004-2007 Jeep Liberty models. While this does not involve the front stabilizer bar, it highlights the potential for corrosion on underbody components in regions that use road salt.

Buying a Used Suspension Stabilizer Bar

Since the steel bar itself rarely fails, a used OEM stabilizer bar is an excellent, cost-effective option. Aftermarket bars may not have the same fit or spring-steel characteristics as the original Mopar part. When buying a used bar, focus on these key points:

• Verify the Part Number/Generation: Ensure the bar is from the correct vehicle generation (KJ for 02-07 Liberty, or KK for 08-12 Liberty/Nitro). They are not interchangeable.
• Inspect for Damage: Check the bar thoroughly for any signs of being bent, cracked, or having heavy collision damage. Minor surface rust is acceptable, but deep, flaking rust that compromises the metal's integrity is a red flag.
• Plan on Replacing Wear Items: Do not reuse the old bushings or end links that may come with a used bar. Always install a used stabilizer bar with new bushings and new end links. The cost of these new parts is minimal and ensures a quiet, long-lasting repair.
• Mileage is Not a Major Concern: The mileage on the donor vehicle is not a significant factor for the bar itself. A straight, undamaged bar from a 150,000-mile vehicle is just as good as one from a 50,000-mile vehicle, provided you use new links and bushings.

Replacement & Installation Tips

Replacing the stabilizer bar links and bushings is a common DIY job that can be done with basic hand tools. The entire bar is typically only removed if the bushings need to be replaced, as they are often difficult to slide over the ends of the bar while it's on the vehicle.

Related Parts to Replace

It is highly recommended to replace the stabilizer bar links and the stabilizer bar bushings at the same time. Often, a clunking noise is caused by just one of these components, but they wear at similar rates. Replacing them together saves you from having to do the job twice.

Torque Specifications

Applying the correct torque is important for safety and to prevent noise. Note the discrepancy in sources for the KJ end link torque.

Note: Specific torque specs for the KK platform (2008-2012 Liberty / 2007-2011 Nitro) are not readily available. In their absence, mechanics often tighten them to be snug and secure, ensuring the rubber bushings are compressed but not distorted.

Cost Comparison

The most common repair is replacing the links and/or bushings, not the entire bar. The costs below reflect this. Replacing the bar itself is rare and would add the cost of the bar to the labor estimate.

Frequently Asked Questions (FAQ)
