2014-2024 Ram ProMaster Stabilizer Bar: Diagnosing and Fixing Front End Clunks
This guide covers the common causes of clunking noises and poor handling related to the front stabilizer bar system on the Ram ProMaster 1500, 2500, 3500, and EV models.
- The most common symptom of a problem is a clunking or rattling noise from the front end over bumps; this is almost always caused by worn stabilizer links or bushings, not the bar itself.
- This part and its related components are shared across all versions of the van from 2014-2024: the ProMaster 1500, 2500, 3500, and the new ProMaster EV.
- When buying a used stabilizer bar, inspect it for cracks or bends, but always plan to install new links and bushings for a complete and quiet repair.
- You can safely drive with a worn stabilizer link, but handling is compromised, especially in turns or emergency maneuvers.
Is it the Bar, the Links, or the Bushings?
When you hear a clunking noise from the front of your Ram ProMaster, it's easy to assume a major part has failed. However, with the stabilizer bar system, the problem is almost never the heavy steel bar itself. The true culprits are almost always the smaller, sacrificial parts that connect it to the rest of the vehicle: the stabilizer bar links (or end links) and the stabilizer bar bushings.
- Stabilizer Bar Links: These are rods with flexible joints on each end that connect the stabilizer bar to the front struts. They are the most common failure point and the primary source of clunking noises. 🎬 Watch: Kip explains how these stabilizer links function and fail.
- Stabilizer Bar Bushings: These are rubber or polyurethane mounts that secure the stabilizer bar to the vehicle's subframe. When they wear out, they can allow the bar to move and knock against the frame, especially over bumps.
This guide will help you diagnose issues with the entire stabilizer bar system for the 2014-2021 Ram ProMaster 1500, 2014-2024 Ram ProMaster 2500, 2014-2024 Ram ProMaster 3500, and the 2024 Ram ProMaster EV.
Symptoms of a Failing Stabilizer Bar System
The signs of a worn stabilizer bar link or bushing are usually heard before they are felt. Here’s what to listen and feel for:
Clunking, Knocking, or Rattling Noises
This is the most common symptom by far. You'll hear a distinct metallic clunk or rattle from the front end when driving over bumps, potholes, or uneven pavement. The noise is caused by the worn-out joints in the stabilizer links having excessive play, allowing metal to knock against metal. The noise may disappear on smooth roads but will return as soon as the suspension has to move.
🎬 See a real-world example of this front end rattle.Poor Handling and Increased Body Roll
A functional stabilizer bar system keeps the van flat during turns. When the links or bushings are worn, the system can't do its job effectively. You may notice the van leans or 'sways' more than usual in corners, feels less stable during lane changes, or has a 'loose' or 'floaty' feeling in the steering.
Visible Damage
In some cases, you can see the problem. Look for stabilizer links with torn rubber boots, or bushings that are cracked, deformed, or have a visible gap around the stabilizer bar.
Pro Tip: A quick way to check for a bad stabilizer link is to have a helper rock the vehicle side-to-side while you hold onto the link (be careful of moving parts). If you can feel clicking or movement within the link, its joints are worn and it needs to be replaced.
Known Issues, TSBs, and Recalls
As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from Ram or the National Highway Traffic Safety Administration (NHTSA) for the front stabilizer bar, links, or bushings on these ProMaster models. Most suspension complaints are related to general wear and tear.
However, several unrelated recalls have been issued for these vehicles. It is important to check if your van is affected by these:
- 2019-2021 Models: A recall (NHTSA 23V-301) was issued for a software defect in the powertrain control module that could prevent the transmission from fully engaging Park, creating a rollaway risk.
- 2022-2025 Models: A recall (NHTSA 25V330) addresses a software issue that can cause the rearview camera image to not display.
- 2024-2025 ProMaster EV: An early recall was issued for about 790 electric vans due to a software fault that could cause a sudden loss of drive power.
Buying a Used Ram ProMaster Stabilizer Bar
Because the bar itself is a simple, durable piece of steel, buying a used OEM stabilizer bar is a very safe and cost-effective option. However, you are buying the bar, not the wear items attached to it.
- Assume Links & Bushings are Bad: Even if a used stabilizer bar comes with links and bushings, you should plan on replacing them with new ones. They are inexpensive and critical for a quiet, long-lasting repair.
- Inspect the Bar Itself: Check the used bar for signs of major collision damage, such as bends, kinks, or deep gouges. Check the areas where the bushings mount for severe corrosion or pitting. Minor surface rust is normal and can be cleaned up, but deep, flaky rust can weaken the bar.
- Verify Compatibility: The front stabilizer bar system is shared across the ProMaster 1500, 2500, and 3500 platforms from 2014-2024, including the new EV model. While the OEM part number may have changed over the years (from 68095827AA to 68095827AC for earlier models, with other numbers appearing for 2022+), the physical part remains interchangeable. A used bar from any ProMaster within this range should fit your van.
- Why Used OEM? An original equipment bar is made from high-quality spring steel designed specifically for the ProMaster's weight and handling characteristics. While aftermarket bars exist, a verified, damage-free used OEM bar ensures perfect fitment and performance, often for less than a new aftermarket part.
Replacement Overview and Related Parts
For most owners experiencing clunks, the repair will only involve replacing the stabilizer bar links and/or bushings, not the entire bar.
- Stabilizer Links: This is a common DIY job. It typically involves removing the front wheels for access, unbolting the old link from the strut and the stabilizer bar, and installing the new one.

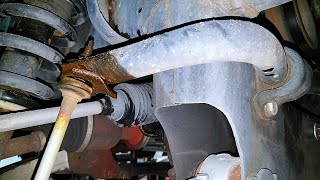

- Stabilizer Bushings: Replacing the bushings requires unbolting the two brackets that hold the stabilizer bar to the subframe. This can be more challenging due to tight access. 🎬 Watch this walkthrough for replacing the bar, links, and bushings.
Warning: The stabilizer bar is under tension when one wheel is raised. For safety and ease of replacement, either raise the entire front of the vehicle on two jack stands so the suspension is evenly unloaded, or replace the links in pairs with both front wheels on the ground (if you can access the bolts).
Torque Specs
Finding official torque specs can be difficult. However, based on general automotive practices and forum discussions, the following are common targets. Always consult a service manual for your specific vehicle if possible.
- Stabilizer Link Nuts: A common torque value for end links is around 25-36 ft-lbs. Over-tightening can damage the new bushings.
- Stabilizer Bar Bushing Bracket Bolts: These are often torqued to around 40-66 ft-lbs.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Stabilizer Bar (Part Only) | $365 - $450 |
| Used OEM Stabilizer Bar (Part Only) | $100 - $250 |
| New Aftermarket Stabilizer Links (Pair) | $40 - $100 |
| New Aftermarket Stabilizer Bushings (Pair) | $20 - $40 |
| Shop Labor (Links & Bushings Replacement) | $150 - $300 |
| Shop Labor (Entire Bar Replacement) | $250 - $450 |
Frequently Asked Questions (FAQ)
Do I need to replace the whole bar or just the links and bushings?
In over 95% of cases, you only need to replace the links and/or bushings. The bar itself is a very robust piece of steel that only needs replacement if it has been physically bent or broken in a collision or has suffered extreme corrosion damage.
Can I drive with a bad stabilizer bar link?
Technically, yes, but it is not recommended. While the vehicle is still drivable, your handling will be compromised, with significantly more body roll in turns. In an emergency maneuver, this could make the vehicle less predictable and harder to control. The constant clunking noise is also a clear sign that a repair is needed.
Do I need a wheel alignment after replacing the stabilizer bar or links?
No. The stabilizer bar system does not affect the vehicle's alignment angles (camber, caster, or toe). An alignment is not necessary after this specific repair.
Is an aftermarket stabilizer bar an upgrade?
For most users, the OEM stabilizer bar is perfectly adequate. Some companies, like Hellwig, offer thicker, stiffer aftermarket bars designed to further reduce body roll, which can be beneficial for vans that are heavily loaded or have a high center of gravity (like camper conversions). However, for a standard work van, a new or used OEM bar with fresh links and bushings is the most reliable and cost-effective solution.
Will this part wear out faster on my ProMaster EV?
While the stabilizer bar itself is the same, the ProMaster EV is significantly heavier than its gasoline counterparts due to the battery pack. This extra weight puts more stress on all suspension components, including the stabilizer bar links and bushings. It is reasonable to expect that these wear items may have a shorter service life on the EV model.
Part Numbers and Fitment
| Vehicle | Years | OEM Part Number (Front) |
|---|---|---|
| Ram ProMaster 1500, 2500, 3500 | 2014-2021 | 68095827AC (supersedes 68095827AB, 68095827AA) |
| Ram ProMaster 1500, 2500, 3500, EV | 2022-2024 | Interchangeable with earlier models; later part numbers may exist (e.g., 68509178AA). |
Helpful Videos
Technical Specifications
OEM Part Numbers: 68095827AA 68095827AB 68095827AC 68509178AA
The system consists of the steel stabilizer bar, two stabilizer links (end links), and two frame-mounted bushings.
