1997-2005 Buick Century Tail Light: Solving Blown Fuses and Wiring Shorts
This guide covers the common failure points, replacement procedure, and what to inspect when buying a used tail light for your 1997-2005 Buick Century.
- The most common issue is not the light itself, but a short circuit from pinched or chafed wires in the trunk, which blows the fuse for both the tail lights and dash lights.
- Replacement is extremely easy, requiring no tools and can be completed in under 15 minutes per side.
- When buying a used part, prioritize checking the bulb sockets for melting or corrosion and ensure the mounting studs are intact.
- There are no specific recalls or TSBs from GM for tail light failures on this model; the known problems are related to wear and tear.
Symptoms of Failure
Failures in the Buick Century tail light system are almost always electrical in nature. Beyond a simple burnt-out bulb, here are the common symptoms you might encounter:
- One or More Lights Not Working: The most obvious symptom is when a tail light, brake light, or turn signal fails to illuminate. This can be due to a bad bulb, a corroded socket, or a wiring issue.
- Blowing Fuses: If the tail light fuse repeatedly blows, it's a clear sign of a short circuit. In the Century, this fuse is often linked to the dashboard illumination lights, so you may notice your dash lights go out at the same time.
- Dimly Lit Lights: Lights that appear dimmer than usual can indicate a poor electrical ground or high resistance in the circuit, often due to corrosion in the bulb socket or connector.
- Rapidly Blinking Turn Signal (Hyperflash): While often caused by a burnt-out bulb, hyperflash can also occur if there's a problem in the turn signal circuit wiring.
Known Issues for 1997-2005 Buick Century
While there are no official recalls or Technical Service Bulletins (TSBs) for the tail lights on this specific vehicle, owners have identified a common and frustrating problem: wiring shorts in the trunk area.
Pinched or Frayed Wires
The most frequently reported issue is a short circuit caused by the wiring harness that runs to the tail light assemblies. Over time, wires can become pinched, chafed, or broken, leading to a blown fuse and loss of both tail lights and dashboard lights.
- Trunk Lid Harness: A wire in the harness that flexes with the opening and closing of the trunk lid can eventually break and short against the metal chassis.
- Cargo Interference: Owners have reported that items stored in the trunk can push against the wiring near the tail light access holes. The sharp metal edges of these holes can cut through the wire's insulation, causing a direct short to ground.
Pro Tip: If you are repeatedly blowing the tail light fuse, inspect the wiring harness inside the trunk carefully. Look for any wires that are pinched, stretched, or have damaged insulation, especially where they pass through metal openings or near the trunk hinges.
🎬 See how to find and fix a blowing tail light fuse.Buying a Used Tail Light
A used OEM tail light is an excellent, cost-effective option for the Buick Century. The quality and fit of an original GM part are typically superior to new aftermarket alternatives. Here’s what to check before you buy:
- Inspect the Lens: Look for cracks, deep scratches, or significant hazing/fading. Minor scuffs can often be polished out, but major cracks will allow moisture inside, leading to bulb failure and corrosion.
- Check Mounting Points: The tail light is held on by three plastic thumb screws that attach to studs on the back of the housing. Ensure these studs are intact and not broken off. A broken stud will prevent the light from seating securely.
- Examine the Sockets and Connectors: This is the most critical inspection. Twist out the bulb sockets and look for any signs of melting, charring, or green/white corrosion. Damaged sockets indicate previous overheating or moisture intrusion and should be avoided.
- Look at the Foam Gasket: There should be a foam or rubber gasket around the edge of the assembly where it meets the car body. A gasket that is intact and pliable will prevent water from leaking into the trunk.
Replacement Guide (DIY)
Replacing the tail light assembly on a 1997-2005 Buick Century is one of the easiest repairs you can perform.
- Difficulty: 1/5 (Beginner)
- Time: 10-15 minutes per side
- Tools Needed: None.
Step-by-Step Instructions
- Open the trunk.
- On the side with the faulty tail light, locate the carpeted trunk liner. You will see a plastic thumb screw or clip holding the liner in place. Unscrew it and pull the liner back to expose the back of the tail light assembly.
- You will see two or three plastic, wing-nut style thumb screws holding the tail light assembly. Unscrew them by hand.
- Carefully push the tail light assembly out from the back to release it from the vehicle body.
- Twist each bulb socket counter-clockwise about a quarter turn and pull it out of the old housing.
- To install the new assembly, simply reverse the process. Insert each bulb socket into the new housing and twist clockwise to lock it in.
- Align the studs on the new assembly with the holes in the car body and press it into place.
- From inside the trunk, reinstall and hand-tighten the plastic thumb screws. Do not overtighten.
- Reposition the trunk liner and secure it with its clip. Test all light functions (tail lights, brake lights, turn signals). 🎬 Watch this quick video to see the full replacement process.
Cost Comparison
Prices can vary based on condition and supplier, but here are typical cost ranges:
| Part Type | Price Range |
|---|---|
| New OEM | $130 - $150 |
| New Aftermarket | $50 - $95 |
| Used OEM | $30 - $50 |
| Shop Labor | $25 - $75 (Typically a shop's minimum charge) |
Frequently Asked Questions (FAQ)
Why do my dashboard lights go out when my tail lights stop working?
On many 1997-2005 Buick Century models, the dashboard illumination lights are on the same electrical circuit as the tail lights. A short circuit that blows the tail light fuse will also cause the dash lights to go out. This is a key indicator that you have a short circuit rather than just a burnt-out bulb.
🎬 Watch this guide if your dashboard lights have stopped working.Is it difficult to replace a tail light on a Buick Century?
No, it is extremely easy. The replacement requires no tools and can be done in about 10-15 minutes by accessing a few hand-turnable plastic nuts inside the trunk.
My turn signal is blinking really fast. What does that mean?
This is called "hyperflash." It's the car's way of telling you that a turn signal bulb has burned out or that there is a problem with the circuit's resistance. Check your front and rear turn signal bulbs first. If the bulbs are good, you may have a corrosion issue in the socket or a wiring problem.
Are the driver and passenger side tail lights interchangeable?
No, the left (driver side) and right (passenger side) tail light assemblies are mirror images of each other and are not interchangeable. You must purchase the correct side for your vehicle.
Helpful Videos
Technical Specifications

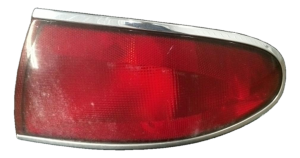

OEM Part Numbers: 19149889 (Left, Driver Side) 19149890 (Right, Passenger Side)
The assembly uses standard halogen bulbs. The main housing is held in place by three plastic thumb screws accessible from inside the trunk.
