2002-2007 Buick Rendezvous Tail Light: Water Leaks, Circuit Boards, and Replacement Guide

Symptoms of a Failing Tail Light

Diagnosing a tail light issue on the Buick Rendezvous is usually straightforward. The symptoms often point directly to the source of the problem, whether it's a simple bulb or a more complex issue within the assembly itself.

1. One or More Bulbs Are Out

The most common symptom is a single function (like the brake light or turn signal) not working while others do. This is typically due to a burnt-out bulb. The Rendezvous uses dual-filament bulbs, meaning one bulb contains two separate filaments for different functions (e.g., a dim filament for the running light and a bright filament for the brake light). It's possible for one filament to burn out while the other still works.

2. Rapidly Blinking Turn Signal ("Hyperflash")

If your turn signal indicator on the dashboard blinks much faster than usual, it's almost always a sign that a turn signal bulb on that side of the vehicle has burned out. The change in electrical resistance from the failed bulb causes the flasher relay to cycle more quickly. This is an intentional design to alert the driver to a non-functioning signal.

3. Condensation or Water Inside the Lens

Finding moisture or standing water inside the tail light lens is a common problem. This indicates that the seal between the lens and the housing has failed, or there is a crack in the housing itself. This water can cause corrosion in the bulb sockets and on the circuit board, leading to intermittent or complete failure of the lights.

4. Flickering or Dim Lights

Lights that flicker, are dim, or work intermittently often point to a poor electrical connection. This can be caused by a corroded bulb socket, a loose connector, a faulty ground wire, or a failing tail light circuit board. In some cases, the rear light socket plate itself can fail, causing these issues.

5. All Rear Lights Are Out

If all lights in one or both tail light assemblies are not working, the problem is likely upstream from the assembly itself. This could be a blown fuse, a bad relay, or a faulty multifunction switch in the steering column, which is a known issue on some GM vehicles.

Known Issues, TSBs, and Recalls

While there are no specific recalls for the tail light assemblies on the 2002-2007 Buick Rendezvous, GM has issued a Technical Service Bulletin (TSB) that is relevant.

• TSB #01-08-42-001O: This bulletin provides dealers and technicians with guidelines on diagnosing and addressing exterior lamp condensation and water leaks. It acknowledges that some condensation can be normal, but provides procedures for identifying and fixing abnormal water intrusion, which is a known issue for these tail lights.

No safety recalls have been issued by the NHTSA specifically for the tail lights of this vehicle.

Buying a Used Tail Light for a Buick Rendezvous

Purchasing a used OEM tail light is an excellent way to save money while maintaining the original fit and quality. However, it's important to inspect the part carefully before buying.

What to Inspect on a Used Tail Light

• Check for Cracks and Scratches: Minor surface scratches are normal, but inspect the lens carefully for any cracks, especially around the edges and mounting points. Even a small crack can let moisture in, leading to future problems.
• Examine All Mounting Points: The Rendezvous tail light is held in by two screws and two plastic alignment pins or clips that slide into the body. Ensure these pins and the screw tabs are intact and not cracked or broken. A light with a broken mounting point will not sit securely and will eventually fail.
• Look for Signs of Water Intrusion: Check the inside of the lens for a "water line," discoloration, or a hazy film. This indicates the light has had a leak in the past. Also, inspect the bulb sockets and the circuit board connector for any green or white crusty corrosion.
• Verify the Circuit Board and Harness: If the tail light comes with the circuit board and wiring harness, check for any melted plastic around the bulb sockets or the main connector. This is a sign of overheating from a bad connection.
• Confirm the Correct Year Range: There was a design change for the 2004 model year. Tail lights for 2002-2003 models are different from those for 2004-2007 models. Ensure you are buying the correct version for your vehicle.

Replacement Guide

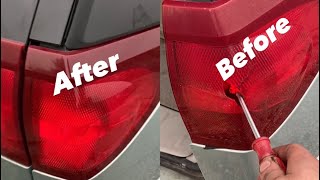

Replacing a tail light on a 2002-2007 Buick Rendezvous is a very simple job that requires only basic tools. 🎬 Watch a mechanic perform a complete rear tail light replacement It can typically be completed in about 10-15 minutes.

Tools Needed:

• Phillips head screwdriver

Step-by-Step Instructions:

1. Open the Rear Liftgate: Access to the tail light fasteners is inside the cargo area.
2. Remove the Two Phillips Screws: Locate the two Phillips head screws on the side of the cargo area that hold the tail light assembly in place. Remove them.
3. Pull the Assembly Straight Back: Grasp the tail light assembly firmly and pull it straight out, away from the side of the vehicle. It is held in by two alignment pins that pop out of grommets in the car's body. It may require a bit of wiggling force to release.
4. Disconnect the Wiring Harness: Squeeze the release tab on the main electrical connector and pull it apart from the circuit board on the back of the tail light assembly.
5. (If replacing bulbs only) Twist and Remove Sockets: To replace a bulb, twist the corresponding socket about a quarter-turn counter-clockwise and pull it out of the housing. The bulb pulls straight out of the socket.
🎬 See this quick video on how to replace the bulbs
6. Install the New Assembly: Connect the wiring harness to the new tail light. Align the two guide pins with the holes in the vehicle's body and press the assembly firmly into place until the pins snap in.
7. Reinstall the Screws: Secure the assembly by reinstalling the two Phillips head screws. Do not overtighten them, as this can crack the plastic housing.
8. Test All Functions: Before closing the liftgate, have a helper confirm that the running lights, brake lights, and turn signals are all working correctly.

Cost Comparison

The cost for a replacement tail light can vary significantly depending on the source.

Frequently Asked Questions
