2002-2004 Isuzu Axiom Tail Light: A Buyer's and DIY Replacement Guide

Symptoms of a Failing Tail Light

Tail light problems on the Isuzu Axiom are usually straightforward. The issue could be a simple bulb, or it could be the entire assembly. Here’s what to look for:

• One or More Lights Are Out: The most common failure is a burned-out bulb. If the brake light works but the running light doesn't (or vice-versa), it's often a dual-filament bulb that has partially failed.
• Condensation or Water Inside the Lens: If you see moisture, fog, or water sloshing around inside the tail light, the factory seal has failed. This is often caused by a small crack in the lens or housing. This moisture will quickly corrode bulb sockets and wiring, leading to intermittent or total failure.
• Dim or Flickering Lights: Before a bulb burns out completely, it may flicker or appear dimmer than the other side. This can also point to a bad ground connection or corrosion in the bulb socket.
🎬 Watch: A guide to diagnosing electrical and socket problems.
• Brake Lights Stuck On: While often caused by a faulty brake light switch near the pedal, a short circuit within the tail light assembly's wiring can also cause the brake lights to stay illuminated.
• Blown Fuses: If a tail light fuse blows repeatedly, it indicates a short circuit in the system. This could be caused by water-damaged wiring within the assembly.
• Visible Cracks or Damage: Physical damage from a minor impact can break the lens or the black plastic housing, compromising the seal and the integrity of the unit.

Known Issues, Recalls, and TSBs

There are no specific recalls or Technical Service Bulletins (TSBs) from Isuzu or the NHTSA related to the tail light assemblies on the 2002-2004 Isuzu Axiom. Failures are generally not due to a design flaw but are related to age, physical damage, or normal bulb burnout. One owner on a forum reported a persistent issue with a blown fuse for the tail and dash lights, but this appears to be an isolated electrical problem rather than a common part defect.

It is worth noting that the 2002 Axiom was part of a regional recall (NHTSA #10V-436) for corrosion of the rear suspension lower link brackets in states that use road salt. While this does not affect the tail lights directly, it highlights the potential for corrosion-related issues on vehicles from these areas.

Buying a Used 2002-2004 Axiom Tail Light: What to Check

Since you'll likely be buying a used part, a careful inspection is key. Here’s a checklist to follow before you buy:

1. Inspect the Lens for Cracks: Hold the light up to a light source and carefully check for any hairline cracks, especially around the edges. Even a small crack will let in water. Also look for deep scratches or hazy, faded plastic that can reduce light output. Some used listings may note "interior spider cracks," which are small stress fractures inside the plastic.
2. Check the Housing and Mounting Points: Flip the assembly over. The black plastic housing should be free of cracks. Pay close attention to the mounting studs—the long, threaded bolts used to attach the light to the vehicle. Ensure they are all present, straight, and not stripped. A broken mounting stud can make it impossible to secure the light properly.
3. Look for Signs of Water Intrusion: Check the inside of the lens for a white, chalky residue or water stains. Look at the electrical connector pins and bulb sockets for any green or white corrosion.

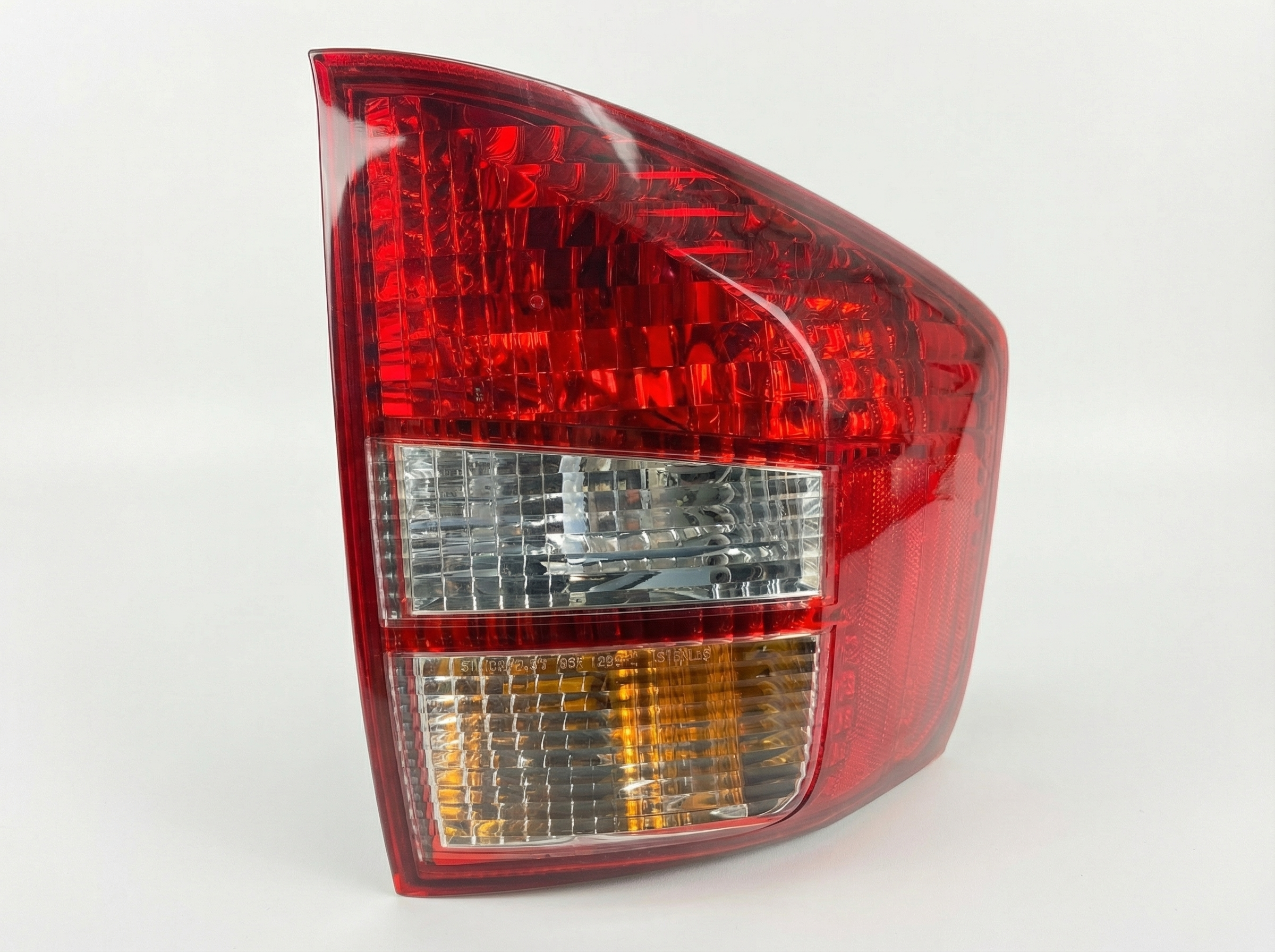

4. Verify the Part Number and Side: Tail lights are specific to the driver's side (Left Hand, LH) and passenger's side (Right Hand, RH). They are not interchangeable. The OEM part number for the driver's side is 8972371014 and the passenger's side is 8972371004.

Replacement Guide (DIY Difficulty: 1/5)

Replacing the tail light assembly on an Isuzu Axiom is a very easy DIY job that requires only basic tools. It typically takes less than 15 minutes per side.

Tools Needed:

• Socket wrench with a 10mm socket (verify size, but 10mm is most common)
• Panel popper tool (optional, may not be needed)

Step-by-Step Instructions:

1. Open the Rear Hatch: Access the side of the tail light from inside the cargo area.
2. Remove Access Panel (if present): There may be a small plastic cover or a section of the trunk liner that needs to be removed to access the back of the tail light.
3. Remove the Mounting Nuts: You will see two nuts holding the tail light studs. Use a 10mm socket to remove them.
4. Disconnect the Electrical Connector: Squeeze the tab on the wiring harness connector and pull it straight off the back of the tail light assembly.
5. Remove the Assembly: Gently pull the tail light assembly straight back, out of the vehicle body. It may be snug, but it should come out with a little wiggling.
6. Install the New Assembly: Before installing, it's a good idea to transfer the bulbs from your old light if the new one doesn't include them. Simply twist the bulb sockets counter-clockwise to remove them. Then, connect the wiring harness to the new assembly and have a helper press the brakes and use the turn signal to confirm it works.
7. Secure the New Light: Guide the mounting studs on the new assembly into the holes in the vehicle body. Hand-tighten the nuts, then snug them down with the wrench. Do not overtighten, as you can crack the plastic housing.
8. Replace the Access Panel: Put the interior trim or cover back in place.
