2007-2012 Nissan Versa Tail Light: Hatchback vs. Sedan Fitment and Water Leak Guide

Hatchback vs. Sedan: A Critical Fitment Warning

Before purchasing, you must correctly identify your vehicle's body style. The tail lights on the Hatchback are taller and more vertical, integrated into the C-pillar next to the rear hatch glass. The Sedan tail lights are wider and more horizontal, confined to the corners of the trunk area. Always double-check that the part you are buying is listed for your specific body style.

Key Part Numbers for Hatchback Models

• Right (Passenger Side): 26550-EM30A
• Left (Driver Side): 26555-EM30A

Symptoms of Failure

1. Burnt-Out Bulbs

The most common issue is a simple burnt-out bulb. This will result in a specific function (brake light, turn signal, or tail light) not working. If your turn signal blinks faster than usual on the dashboard, it's a common indicator that a front or rear turn signal bulb has failed.

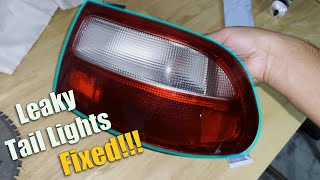

2. Condensation or Water Inside the Lens

Finding moisture, fog, or standing water inside the tail light assembly is a clear sign that the seal between the lens and the housing has failed. This is a known issue. While Nissan issued a specific Technical Service Bulletin (TSB NTB15-082) for later model Versa Sedans, the problem of water intrusion is common across many vehicles. This water can cause corrosion on the bulb sockets, circuit boards, and wiring connectors, leading to intermittent or complete failure of the lights. In some Nissan models, this corrosion has been known to cause bizarre electrical problems, including transmission shifting issues, as it can create short circuits.

3. Intermittent or Flickering Lights

If a light works some of the time or flickers, the cause is often a poor electrical connection. This could be due to corrosion in the bulb socket from water intrusion, or the metal contacts within the socket may have become bent or fatigued over time. Sometimes, simply removing the bulb, cleaning the contacts, and slightly bending the metal tabs inside the socket to ensure a tighter fit can resolve the issue.

4. Brake Lights Stuck On

If your brake lights stay on constantly, draining your battery, the problem is almost certainly not the tail light assembly itself. This issue is typically caused by a small, inexpensive plastic or rubber stopper on the brake pedal arm that has disintegrated. This stopper is meant to press a switch when the brake pedal is released; without it, the switch remains in the 'on' position. This is a very common failure on older Nissan vehicles.

Buying a Used 2007-2012 Versa Tail Light

A used OEM tail light is often a great value, offering the same fit and quality as a new part for a fraction of the price. However, you need to inspect it carefully.

• Verify Body Style: First and foremost, ensure the part is from a Hatchback (or a Sedan, if that's what you have). They are not interchangeable.
• Inspect for Cracks and Scratches: Check the lens for any cracks, even small hairline fractures. Cracks will allow moisture to enter the housing, leading to bulb failures and corrosion. Deep scratches can also compromise the lens integrity over time.
• Check for Water Stains: Look for a 'water line' or mineral deposits on the inside of the lens or on the chrome reflector. This is a tell-tale sign that the light has a history of leaking. Avoid any lights that show signs of past water intrusion.
• Examine the Bulb Sockets and Harness: If possible, inspect the bulb sockets and any included wiring. Look for green or white crusty corrosion on the metal contacts. A clean socket is a good indicator of a well-sealed light.
• Check All Mounting Points: The assembly is held in by two studs with nuts and a plastic locating pin on the side. Ensure the studs are intact and that the housing isn't cracked around the mounting points. The plastic locating pin should also be present and undamaged.

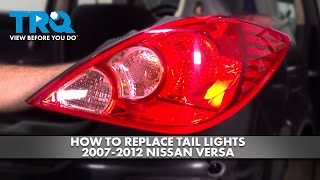

Replacement Guide (Hatchback Models)

Replacing the tail light assembly on a 2007-2012 Versa Hatchback is a very simple job that can be done with basic tools in under 30 minutes.

1. Open the Hatch: Access the rear of the tail light from inside the trunk area.
2. Remove Access Panels: There are two small, circular plastic covers on the interior trim panel. Pop these off with a flathead screwdriver or a trim removal tool to reveal the mounting nuts.
3. Remove the Nuts: Using a 10mm socket or wrench, remove the two nuts holding the tail light assembly in place.
4. Disconnect the Harness: Reach inside and unplug the main electrical connector going to the tail light assembly.
5. Remove the Assembly: This can be the trickiest part. The assembly has a plastic guide pin on the side that pops into a grommet in the car's body. You need to pull the assembly straight back, away from the car. It may require a firm, steady pull. Wiggling it gently can help.
6. Swap Bulbs (Optional): You can transfer your old bulbs and sockets to the new assembly or use the ones it came with. To remove a socket, twist it counter-clockwise and pull it out.
🎬 See how to quickly swap out your tail light bulbs.
7. Installation: Installation is the reverse of removal. Carefully line up the guide pin and the two mounting studs, press the assembly into place, reconnect the electrical harness, and tighten the two 10mm nuts. Do not overtighten.
