2021-2024 Genesis GV80 Transfer Case: TSBs, Noises, and Replacement Guide

Known Issues, TSBs, and Recalls

While the 2021-2024 Genesis GV80 is a relatively new vehicle, some patterns regarding the drivetrain have begun to emerge. It is important to distinguish between issues with the transfer case, the rear differential, and the transmission, as they can present similar symptoms like noise or vibration.

Technical Service Bulletins (TSBs)

TSB #23-DS-001G-1: E-LSD and Transfer Case Actuator Diagnosis
This bulletin was issued for certain 2021-2023 GV80 models (and the GV70) to address specific Diagnostic Trouble Codes (DTCs) related to the electronic actuator on the transfer case. The codes P196000, P195800, or P195513 specifically point to a potential issue with the actuator. The TSB provides a diagnostic procedure for technicians to follow, which may result in the replacement of the transfer case actuator if the fault is confirmed. This is not a recall, but a guide for dealers to fix a specific, code-identified problem.

TSB for Rear Differential Noise

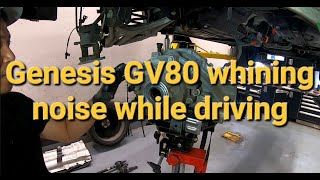

It's crucial to note that some noises from the drivetrain may not be the transfer case at all. Genesis issued a TSB for a noise condition from the rear differential during acceleration or deceleration in certain GV70, G80, and GV80 vehicles. This highlights the importance of proper diagnosis, as a differential issue can be mistaken for a transfer case problem.

Recalls

As of early 2026, there are no specific recalls for the transfer case assembly on the 2021-2024 Genesis GV80. There have been recalls for other components, such as fuel pumps and seat belt pretensioners, but none directly address the transfer case itself.

Owner-Reported Issues

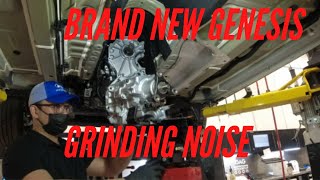

Forum discussions show that some Genesis owners, particularly of the related GV70, have reported transfer case failures requiring complete replacement. Symptoms 🎬 Watch: A technician diagnoses and replaces a grinding transfer case. mentioned include whining or grinding noises followed by a failure of the drivetrain. While reports for the GV80 seem less frequent than for the GV70, the potential for similar issues exists, as they may share drivetrain technology.

Symptoms of a Failing GV80 Transfer Case

A failing transfer case can manifest in several ways, from subtle noises to a complete loss of drive power to one or both axles.

Noises and Vibrations

• Whining/Grinding Noise: A continuous whining or grinding sound that changes with vehicle speed is a common symptom. This often indicates worn bearings or gears inside the case due to fluid contamination or low fluid levels.
• Clicking or Popping: A clicking or popping sound, especially when turning, can suggest a stretched chain or broken gear 🎬 See this example of whining and clicking noises while turning. teeth inside the transfer case.
• Clunking: A distinct "clunk" when shifting into gear, accelerating, or decelerating can be a sign of excessive play within the transfer case components or worn mounting hardware.

Driving Behavior

• Difficulty Shifting: In electronically controlled systems, a failing actuator or sensor can make it difficult or impossible for the system to engage or disengage AWD.
• Binding or Hopping in Turns: If the transfer case is locked or failing to allow for speed differences between the front and rear axles, you might feel a binding, hopping, or skipping sensation during tight turns on dry pavement.
• Warning Lights: A malfunction in the transfer case system will often trigger a warning light on the instrument panel, such as "AWD System Malfunction" or a general check engine light. Specific DTCs like P196000, P195800, or P195513 point directly to the transfer case actuator.

Fluid Leaks

One of the most common and preventable causes of failure is fluid loss. Check for red or brown fluid drips on the ground underneath the center of the vehicle. The transfer case has input and output shaft seals that can degrade over time and leak. Driving with low fluid will quickly lead to overheating and catastrophic internal damage.

Buying a Used 2021-2024 GV80 Transfer Case Assembly

Given the high cost of a new OEM unit, a quality used transfer case is an excellent value proposition. Because the GV80 is a newer model, used parts will likely come from low-mileage collision vehicles, not from vehicles that have worn out from age.

Key Inspection Points

• Verify the Part Number: The most reliable way to ensure compatibility is to match the OEM part number. The known verified part number is 47300-47100. Always confirm this with the seller.
• Check for Leaks: Inspect the unit thoroughly for any signs of fluid leakage, especially around the seals and the case halves. Any residue indicates a potential seal failure.
• Inspect the Case: Look for cracks, hairline fractures, or signs of heavy impact on the aluminum housing. Any damage to the case compromises its integrity.
• Check the Input/Output Shafts: Try to wiggle the input and output shafts by hand. There should be minimal to no side-to-side play. Excessive movement indicates worn internal bearings. The shafts should also spin smoothly by hand.
• Examine the Electrical Connector: Ensure the electrical connector for the actuator is intact, with no bent, broken, or corroded pins.

Mileage Considerations

For a modern vehicle like the 2021-2024 GV80, mileage on a used part is less of a concern than its history. A 50,000-mile part from a well-maintained vehicle is preferable to a 20,000-mile part from a vehicle that was abused or had contaminated fluid. Most failures reported are due to defects or fluid issues, not simple wear and tear at this stage. A used unit with under 85,000 miles is generally considered a safe bet.

Replacement Cost Comparison

Replacing the transfer case is a significant repair. Sourcing a used OEM part can lead to substantial savings.
