Jeep Grand Cherokee & Commander Transfer Case (2002-2010): Noises, Recalls, and Swaps

Critical First Step: Identify Your Transfer Case

Before diagnosing issues or buying a replacement, you MUST identify which transfer case your Jeep has. Compatibility is extremely specific and depends on the vehicle generation, engine, and original 4WD system. Using the wrong transfer case can lead to immediate damage. The definitive way to identify your unit is by the round, red or silver metal tag on the rear case half.

2002-2004 Grand Cherokee (WJ) Models

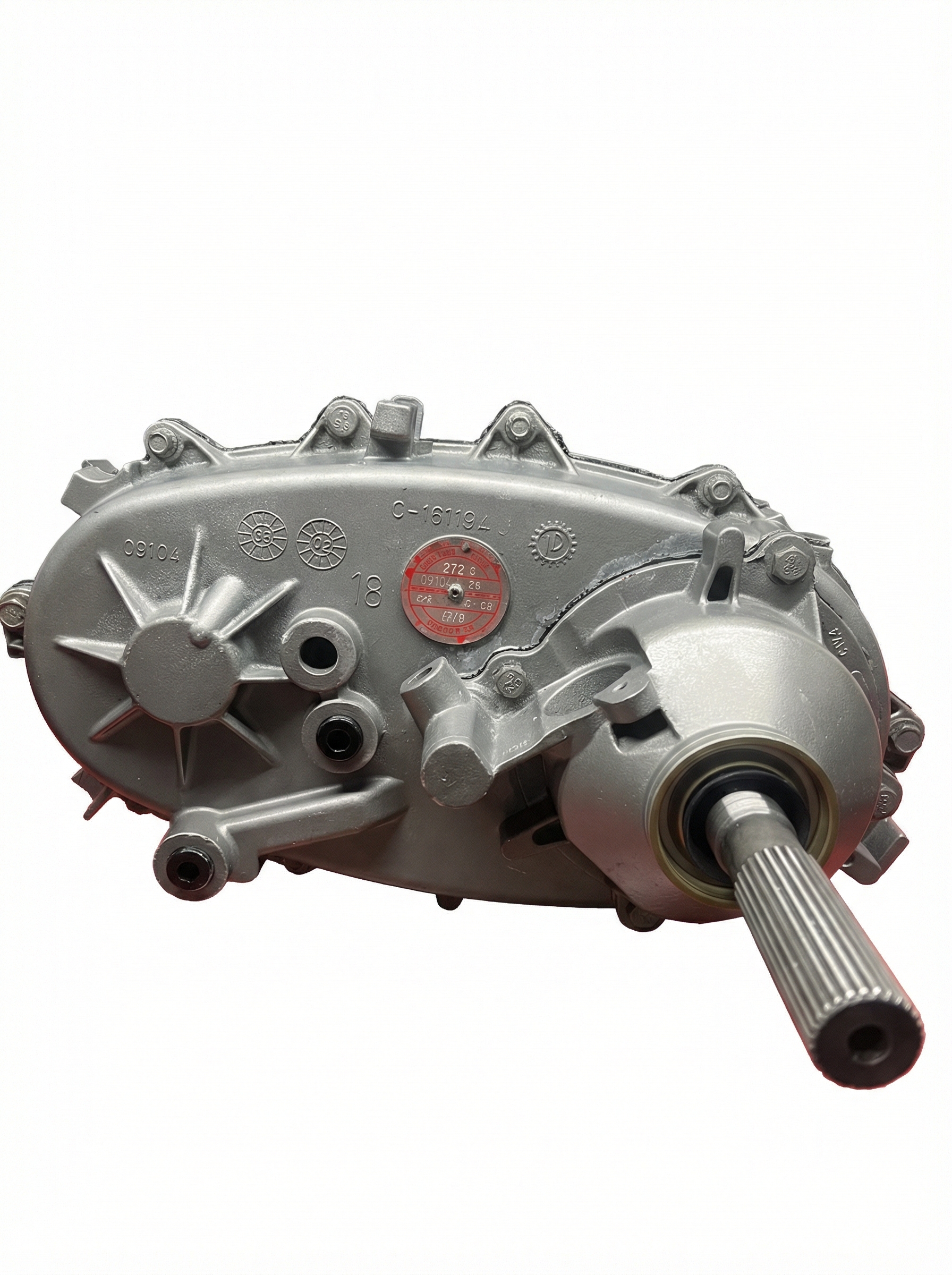

• NP242 (Selec-Trac): Found exclusively in models with the 4.0L Inline-6 engine. It is identifiable by its multiple shifter positions: 2WD, 4 Part-Time, 4 Full-Time, N, and 4-Lo. This is a desirable case for its flexibility. The primary OEM part number is 52099361AD.
• NV247 (Quadra-Trac II / Quadra-Drive): Found in models with the 4.7L V8 engine. The shifter has 4-All Time, N, and 4-Lo positions. This case uses an internal gerotor pump and progressive clutch pack (viscous coupling) to automatically transfer power to the front axle when the rear wheels slip. The Quadra-Drive system uses the same NV247 transfer case but adds Vari-Lok progressive locking differentials in the axles.

2005-2010 Grand Cherokee (WK) & 2006-2010 Commander (XK) Models

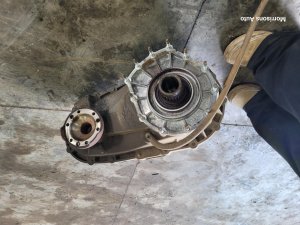

• NV140 (Quadra-Trac I): A single-speed, full-time 4WD transfer case with no low-range gear and no driver controls (no 4WD shifter). It provides a constant 48/52 front/rear torque split. This was common on V6 models.
• NV245 (Quadra-Trac II / Quadra-Drive II): A two-speed, electronically shifted transfer case with 4-All Time, N, and 4-Lo modes, controlled by a small switch or T-handle in the console. It uses an electronic clutch pack to actively manage torque distribution. This was standard on V8 models. The Quadra-Drive II system uses the same NV245 case but adds Electronic Limited-Slip Differentials (ELSDs). Common part numbers include 52105703AB and its revisions.

Symptoms of a Failing Transfer Case

Transfer case problems can manifest in various ways, from noises to shifting problems. Here are the most common symptoms for these specific Jeep models.

Loud Clunking or Popping Under Acceleration

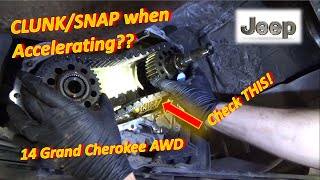

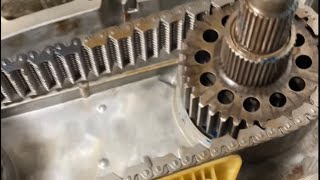

This is the most common symptom of a stretched transfer case chain, especially in the WK Grand Cherokee and XK Commander (NV140 and NV245 cases). The noise is a loud 'pop', 'clunk', or 'bang' from under the center of the vehicle when accelerating hard from a stop. This is the sound of the loose chain jumping over the teeth of the gears inside the case. 🎬 Watch: How to diagnose and repair a popping transfer case chain. You may be able to check for this by removing the fill plug and feeling for excessive slack in the chain.

Grinding, Whining, or Humming Noises

A constant grinding or humming noise that changes with vehicle speed often points to bad bearings or gears inside the transfer case, usually from running with low or contaminated fluid. On a WJ Grand Cherokee, a scraping or winding-down noise when braking from speed that goes away when the front driveshaft is removed can point to a bad front output bearing in the transfer case.

Binding or Hopping During Turns

This is a classic symptom of viscous coupler failure in the NV247 transfer case (WJ 4.7L V8). The vehicle will feel like the brakes are being applied during slow, sharp turns on pavement, and the tires may hop or chirp. This happens because the coupling has seized, locking the front and rear driveshafts together and preventing them from rotating at different speeds during a turn.

Difficulty Shifting or Popping Out of Gear

If the transfer case is hard to shift between ranges, won't engage a range, or pops out of gear, the cause can be anything from a simple linkage adjustment to internal failure. On the NP242 (WJ 4.0L), worn or broken plastic shift fork pads are a very common cause for these symptoms. The pads disintegrate, creating excessive play in the fork so it can no longer fully engage or hold a gear.

"Service 4WD System" Warning Light

On WK and XK models with the NV245, this light indicates an electronic fault. The cause is often a failed transfer case shift motor (actuator) 🎬 See this step-by-step guide to replacing the shift motor. or a problem with the Final Drive Control Module (FDCM). Sometimes, this can be a temporary glitch that can be reset by pulling the corresponding fuse in the fuse box for a few minutes.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

NHTSA Recall 13V-175 (Chrysler N23)

This is a critical safety recall for 2005-2010 Jeep Grand Cherokee (WK) and 2006-2010 Jeep Commander (XK) models equipped with the two-speed NV245 transfer case. A fault in the Final Drive Control Module (FDCM) could cause the transfer case to electronically shift into Neutral without warning, leading to a potential rollaway and crash.

Buying a Used Transfer Case Assembly

A used OEM transfer case is often the most cost-effective solution. Because these are durable, gear-driven units (not complex electronics), a low-mileage used assembly can provide excellent value. Here’s what to look for.

• Verify Compatibility: This is the most important step. Get the part number from the round tag on the back of the case you are buying and ensure it matches the required model for your Jeep's year, engine, and 4WD system (e.g., NP242, NV247, NV140, NV245). Do not trust a seller's description alone.
• Check Tire History: Ask the seller about the donor vehicle's tires. Running mismatched tire sizes or replacing only two tires on a full-time 4WD Jeep (like those with the NV247 or NV245) causes constant strain on the transfer case, leading to rapid failure. A case from a vehicle with matched tires is a much safer bet.
• Physical Inspection: Look for cracks or damage to the aluminum case, especially around mounting points. Check for leaks around the input and output shaft seals. Grab the input and output yokes/flanges and try to move them up-and-down and side-to-side. A small amount of rotational play is normal, but excessive side-to-side play indicates worn bearings.
• Fluid Condition: If possible, pull the fill plug and check the fluid. It should be reddish (ATF) or brownish-clear (Mopar T-Case Lube) and not smell burnt. Black, sludgy fluid or a burnt smell indicates severe internal wear. The presence of shiny metal particles on the magnetic drain plug is a major red flag.
• Mileage: Lower mileage is always better. Most failures outside of the N23 recall issue are due to lack of maintenance (low fluid) or running mismatched tires. A well-maintained case can last the life of the vehicle, but failures often start appearing between 100,000 and 150,000 miles.

Replacement & Repair Details

Rebuild vs. Replace

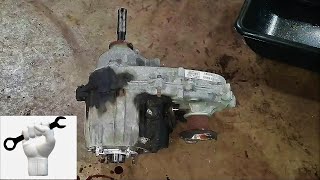

For common issues like a stretched chain or worn shift fork pads, rebuilding the transfer case is a viable option for experienced DIY mechanics. Rebuild kits are available and relatively inexpensive. However, special tools like a blind hole bearing puller and snap ring pliers are required. For issues like a failed viscous coupler (NV247) or internal gear damage, replacement with a good used or remanufactured unit is more practical, 🎬 Watch: A complete walkthrough of the transfer case replacement process. as the individual hard parts can be expensive and difficult to source.
