Corvette C7 & C8 Transmission Mounts (2014-2024): Decoding Clunks, Vibrations, and Leaks
A detailed guide to diagnosing, inspecting, and replacing the distinct transmission mounts on C7 and C8 Chevrolet Corvettes.
- The mounts are completely different for C7 (2014-2019) and C8 (2020-2024) models; part numbers are not interchangeable.
- C7 transmission mounts are fluid-filled; any sign of an oily leak means the mount has failed and must be replaced.
- Vibrations on a C7 can also be caused by a torque converter shudder or torque tube failure, which should be investigated before replacing mounts.
- Replacement is a labor-intensive job on both generations (3-7 hours) as it requires supporting the drivetrain and lowering the rear subframe.
Symptoms of a Failing Corvette Transmission Mount
A failing transmission mount on a 2014-2024 Corvette will make its presence known through distinct sounds and feelings. Because these mounts are designed to control drivetrain movement, their failure allows for excessive motion that shouldn't be there.
- Clunking or Banging Noises: The most common symptom is a sharp 'clunk' or 'bang' when shifting gears, especially from Park to Drive or Reverse. You may also hear this noise during hard acceleration or deceleration as the transmission shifts its weight and slams against its stops.
- Excessive Vibration: A noticeable increase in vibration felt in the seats, floor, and steering wheel is a strong indicator. Since the mount's job is to absorb these vibrations, its failure allows them to pass directly into the car's body. 🎬 Watch: How to diagnose bad engine and transmission mounts This is often most apparent at idle or under load.
- A Feeling of Drivetrain 'Slop': The car may feel less connected, with a delay or jerkiness when you get on or off the throttle. This is caused by the transmission physically moving before it puts power to the wheels.
Is It the Mount, Torque Tube, or Converter? (C7 Models)
For 2014-2019 C7 owners, vibration and clunking don't always point to the transmission mounts. Two other common issues can present with similar symptoms:
- Torque Converter Shudder: Many C7s with the 8-speed automatic transmission (A8) can develop a shudder or vibration during light acceleration, often between 25 and 80 mph. This feels like driving over rumble strips. This issue is typically related to the transmission fluid, and a GM-specified fluid flush often resolves it.
- Torque Tube Bearing/Bushing Failure: The C7's torque tube contains bearings and rubber couplers (bushings) that can degrade from heat and wear out. When they fail, they can cause a severe drivetrain vibration and create rubber dust inside the bellhousing. 🎬 See this guide on identifying C7 torque tube failure A failing torque tube puts immense stress on both the engine and transmission mounts, often causing them to fail as a secondary effect.
Pro Tip: If you have a C7 with vibration, first investigate the possibility of the torque converter shudder, as a fluid change is much less invasive than replacing mounts. If the vibration is accompanied by a grinding noise or excessive 'slop', a failing torque tube is a more likely culprit, and the transmission mounts should be inspected for collateral damage.
Transmission Mount Variants: C7 vs. C8 Corvette (2014-2024)
The transmission mounts are completely different between the C7 and C8 generations due to the fundamental shift from a front-engine to a mid-engine platform. It is critical to buy the correct part for your specific year, model, and engine.
C7 Corvette (2014-2019)
The C7 uses a set of two rear transmission mounts that are distinct for the left (driver) and right (passenger) sides. A key feature of these mounts is that they are fluid-filled (hydraulic) to provide superior vibration damping. This also serves as a clear failure indicator: if you see any dark, oily fluid leaking from the mount, it has failed and must be replaced. These mounts primarily fit models with the 6.2L engine and an automatic transmission, and will not fit the ZR1 trim.
C8 Corvette (2020-2024)
The C8 Corvette uses a rear transaxle, which combines the transmission and differential into a single unit. The mounts support this entire assembly. Part numbers differ between the standard 6.2L Stingray and the 5.5L Z06. Unlike the C7, these mounts are generally a more traditional solid rubber and metal design, though they are still tuned specifically for the Corvette's performance characteristics.
| Vehicle / Part | OEM Part Number(s) | Fitment Notes |
|---|---|---|
| C7 (2014-19) Left Mount | 23187445 (replaces 20980858, 23494492) | Fits 6.2L Automatic models (Stingray, GS, Z06). Excludes ZR1. Fluid-filled. |
| C7 (2014-19) Right Mount | 23187446 (replaces 20980859, 23494493) | Fits 6.2L Automatic models (Stingray, GS, Z06). Excludes ZR1. Fluid-filled. |
| C8 (2020-24) Stingray Left Mount | 84675416 | Fits 6.2L models. |
| C8 (2020-24) Stingray Right Mount | 84675417 | Fits 6.2L models. |
| C8 (2023-24) Z06 Right Mount | 86812377 | Fits 5.5L Z06 models. |
| C8 (2023-24) Z06 Left Mount | 86812376 (Supersedes 85112682) | Fits 5.5L Z06 models. |
Buying a Used Transmission Mount: What to Check
A used OEM transmission mount can be a smart purchase, offering factory quality at a significant discount. However, a thorough inspection is essential before buying.
- Verify Compatibility: This is the most important step. Use the part number tables above to ensure the mount matches your Corvette's year, model (C7/C8), engine (6.2L/5.5L), and side (Left/Right). Do not assume they are interchangeable.
- Inspect for Leaks (C7 Mounts): The C7 mounts are hydraulic. Examine the rubber body of the mount from all angles. If you see any oily residue, dark staining, or evidence of a fluid leak, the mount is bad. Do not buy it.
- Check the Rubber for Damage: For both C7 and C8 mounts, carefully inspect the rubber portion. Look for deep cracks, tearing, or areas where the rubber is separating from the metal bracket. Minor surface cracking can be normal on a used part, but any significant splits compromise its integrity.
- Examine the Metal Bracket: Check the aluminum or steel bracket for any signs of bending, stress fractures, or elongated bolt holes. The mount takes a lot of force, and any damage to the structure makes it unusable.
- Consider Mileage: While rubber degrades with time as well as use, a mount from a lower-mileage vehicle is always preferable. A mount from a 30,000-mile car is a much better bet than one from a 100,000-mile car.
Replacement Overview and Difficulty
Replacing the transmission mounts on either a C7 or C8 Corvette is an advanced DIY job that requires proper tools and safety precautions.
- Installation Difficulty: 4 out of 5 (Difficult)

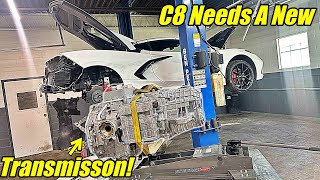

- Key Steps: The vehicle must be safely raised on a lift or jack stands. The transmission must be supported from below with a transmission jack. On both generations, the rear subframe/cradle must be partially lowered to gain access to the mount bolts. On the C7, this provides clearance to remove the mounts from above the cradle. On the C8, this is necessary to access the transaxle mounting points. 🎬 Watch: A walkthrough of the C8 Corvette transmission replacement
- Labor Time: A professional shop will typically charge 3-5 hours of labor for a C7 and 5-7 hours for a C8, due to the added complexity of the mid-engine layout.
Warning: The transmission and rear subframe are extremely heavy. Do not attempt this repair without a proper transmission jack and a thorough understanding of the procedure. Failure to properly support the components can result in serious injury or damage to the vehicle.
Cost Comparison: New vs. Used Corvette Transmission Mounts
Choosing a used OEM mount can offer substantial savings over a new part from the dealer, without sacrificing the quality and fitment of a genuine GM part.
| Part Source | Estimated Cost (Per Mount) | Notes |
|---|---|---|
| New OEM | $90 - $155 | Price varies by specific part number but is generally consistent between C7 and C8 models. |
| New Aftermarket | $70 - $125 | Quality can vary. Some are direct replacements, while others are performance-oriented polyurethane mounts that will increase vibration. |
| Used OEM | $50 - $90 | Offers the best value, providing factory fit and material quality at a lower price. Inspection is critical. |
| Shop Labor | $450 - $1,050 (for the pair) | Based on 3-7 hours of labor at a typical shop rate of $150/hour. C8 will be on the higher end of this range. |
Frequently Asked Questions (FAQ)
Can I drive with a bad transmission mount?
It is not recommended. While the car may be drivable for short distances, a broken mount allows for excessive drivetrain movement which puts severe stress on other components like the torque tube (on C7s), driveshafts, exhaust system, and coolant lines. Continued driving can turn a simple mount replacement into a much more expensive repair.
How do I know if it's a transmission mount or an engine mount?
The symptoms are very similar. Often, a clunk when shifting into gear points more toward a transmission mount, while a lurch or engine movement when revving the engine in Park or Neutral points toward an engine mount. A visual inspection is the best way to be certain. C7 engine mounts are also fluid-filled and will leak when they fail.
Are aftermarket polyurethane mounts a good upgrade?
It depends on your goals. Solid or polyurethane mounts are designed for racing and high-performance use to eliminate all drivetrain deflection. While this improves throttle response and shifting feel, it comes at the cost of a significant increase in noise, vibration, and harshness (NVH) inside the cabin. For a street-driven car, a new OEM or quality used OEM mount provides the best balance of performance and comfort.
Should I replace transmission mounts in pairs?
Yes. The mounts wear at a similar rate. If one has failed, the other is likely not far behind. Furthermore, replacing only one will put additional stress on the new part as it contends with the worn-out mount on the other side. Given the significant labor involved in accessing the mounts, it is most cost-effective to replace both at the same time.
Helpful Videos
Technical Specifications
OEM Part Numbers: 23187445 20980858 23494492 23187446 20980859 23494493 84675416 84675417 86812377 86812376
C7 (2014-2019) mounts are fluid-filled (hydraulic). C8 (2020-2024) mounts are a solid rubber and metal design. All mounts are side-specific (Left/Right) and specific to engine/trim levels.
