2006-2007 Jeep Liberty Transmission Mount: Solving Clunks and Fitment Confusion
This guide clarifies the correct part for both RWD and 4WD models and details how to diagnose and replace the transmission crossmember that causes drivetrain vibrations.
- The OEM part 52129090AC fits both 2WD and 4WD models of the 2006-2007 Liberty with the 3.7L V6, correcting common misinformation from parts sites.
- The most common symptoms of failure are loud clunking noises on acceleration and excessive vibration felt in the cabin.
- When buying a used part, prioritize inspecting the rubber for cracks and the metal crossmember for severe rust, as these vehicles are prone to underbody corrosion.
- This is a single, integrated crossmember assembly; the rubber insulator cannot be replaced separately.
Symptoms of a Failing Transmission Mount
When the transmission mount on a 2006-2007 Jeep Liberty begins to fail, the symptoms are often noticeable and can be mistaken for more serious transmission problems. 🎬 Watch: 7 common signs of a failing transmission mount. The failure is almost always the rubber insulator, which can crack, collapse, or separate from the metal crossmember.
- Clunking or Banging Noises: The most common symptom is a loud clunk or bang when you accelerate, decelerate, or shift the transmission from Park to Drive or Reverse. This sound is caused by the transmission moving excessively and hitting other components.
- Excessive Vibrations: You may feel a significant increase in vibration through the floor or seats, especially when the vehicle is under load, like accelerating from a stop or driving up a hill. This happens because the worn rubber can no longer absorb the normal vibrations from the drivetrain.
- Rough Shifting Sensation: While it doesn't cause internal transmission issues, a bad mount can make gear shifts feel harsh or jerky. The movement of the transmission can also create difficulties with gear engagement.
- Visible Engine and Transmission Movement: A quick way to check is to have a helper watch the engine and transmission while the vehicle is in Drive with the brakes firmly applied. Lightly pressing the accelerator will often reveal excessive rocking or lifting of the powertrain if a mount is broken. 🎬 See this quick tip on how to check your mounts.
Warning: A completely failed transmission mount can put severe stress on engine mounts, driveshaft U-joints, exhaust pipes, and wiring. Addressing a failing mount early can prevent more expensive secondary repairs.
Buying a Used Transmission Mount for Your 2006-2007 Liberty
Since the genuine Mopar part (52129090AC) is listed as discontinued by some retailers, a high-quality used OEM part is an excellent alternative to a new aftermarket one. The original Mopar parts often use a higher grade of rubber than cheaper aftermarket options, providing better vibration damping and a longer service life. Here’s what to inspect before buying a used mount:
- Inspect the Rubber Insulator: This is the most critical area. Look for any cracks, tears, or signs of dry rot in the rubber. The rubber should be firm and free of splits.
- Check for Collapse or Separation: The rubber insulator should not be sagging or separated from the metal housing. Use a pry bar to gently check for excessive play between the rubber and metal components. Any separation means the mount is bad.
- Look for Fluid Contamination: Oil and transmission fluid are enemies of rubber. Inspect the mount for any signs of being soaked in fluids, which will cause the rubber to swell, soften, and fail prematurely.
- Examine the Metal Crossmember for Rust: These Jeep Liberty models are known for corrosion issues, particularly on the undercarriage. Inspect the entire metal crossmember for heavy rust, scaling, or weak spots, especially around the mounting points and welds. Surface rust is normal, but avoid parts with deep, flaky corrosion.
- Verify Part Number: If possible, confirm the part is a genuine OEM unit. Look for the Mopar part number 52129090AC stamped or on a sticker.
Known Issues, TSBs, and Recalls
While there are no recalls or Technical Service Bulletins (TSBs) that specifically target the transmission mount for the 2006-2007 Jeep Liberty, there are related issues to be aware of.
- NHTSA Recall 18V278000: This major recall was for excessive corrosion of the rear suspension lower control arms, which could lead to fracture and loss of vehicle control. This underscores the importance of checking any underbody part, including the transmission crossmember, for significant rust damage, especially on vehicles from regions that use road salt.
- No TSBs for Mount: Searches of the NHTSA database show no TSBs directly related to the failure of the transmission mount crossmember itself. Most powertrain TSBs for this model relate to software updates or internal transmission components.
Replacement Information
Replacing the transmission mount on a 2006-2007 Jeep Liberty is a manageable DIY task for someone with basic tools and experience working on cars. The part is a single crossmember assembly, making the process relatively straightforward.
- Difficulty: 2 out of 5
- Estimated Time: 1-1.5 hours
- Process: The job involves safely raising and supporting the vehicle on jack stands. A floor jack with a block of wood is then used to support the weight of the transmission. The bolts securing the crossmember to the vehicle's frame are removed, followed by the bolt(s) attaching the mount to the transmission itself. The old crossmember is then lowered and removed, and the new one is installed by reversing the process. 🎬 Watch: A helpful walkthrough of the crossmember replacement process.
Pro Tip: Before tightening the final bolts, ensure the transmission is settled in its natural position. It's also a good time to inspect the nearby engine mounts for any signs of wear or cracking, as they often fail around the same time.
Cost Breakdown
The cost to replace the transmission mount can vary based on the part source and whether you do the work yourself.
| Item | Estimated Cost |
|---|---|
| New OEM (Mopar) | $50 - $75 (if found, may be discontinued) |
| New Aftermarket | $70 - $120 |
| Used OEM | $40 - $65 |
| Shop Labor | $100 - $200 |
| Total Professional Replacement | $200 - $350 |
Frequently Asked Questions
Does this part really fit both 2WD and 4WD models?
Yes. Despite some part supplier descriptions stating it is for 2WD models, detailed OEM fitment data confirms that part number 52129090AC is the correct transmission crossmember for all 2006-2007 Jeep Liberty models equipped with the 3.7L V6 engine and automatic transmission, regardless of whether they are 2WD or 4WD.
Can I just replace the rubber part of the mount?
No. For this specific vehicle, the rubber insulator is integrated into the steel transmission crossmember. The entire assembly must be replaced as a single unit.
Is it safe to drive with a bad transmission mount?
You can drive the vehicle for a short time, but it is not recommended. The excessive movement can cause damage to other, more expensive parts like the driveshaft, exhaust system, and engine mounts. It's best to get it replaced as soon as possible.
Will a bad transmission mount cause a Check Engine Light?
No, a failing transmission mount is a mechanical part and will not directly trigger a Check Engine Light or store any diagnostic trouble codes. The symptoms are purely physical, such as noise and vibration.
Helpful Videos
Technical Specifications

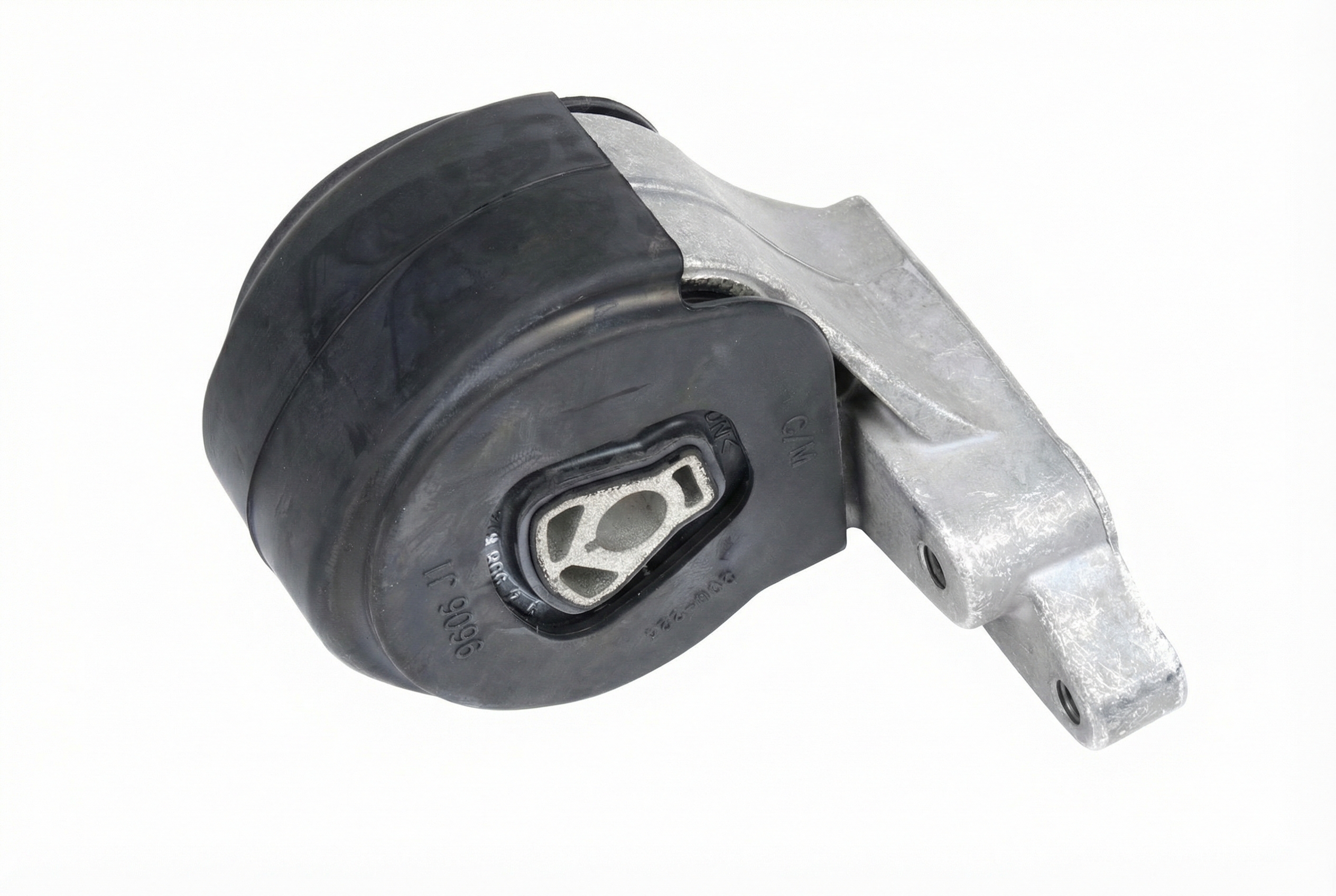

OEM Part Numbers: 52129090AC
Integrated transmission mount and crossmember assembly. Fits 3.7L V6 with automatic transmission (42RLE).
