2005-2013 Honda Odyssey Shifter Problems: Stuck in Park and 5-Speed vs. 6-Speed Guide

Symptoms of a Failing Transmission Shift Lever

When the shifter assembly begins to fail, it can leave you stranded. The symptoms are usually straightforward and directly related to selecting gears.

1. Shifter is Stuck in Park

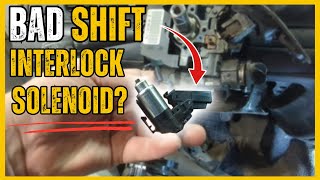

This is the most common failure symptom. You'll get in the van, start the engine, press the brake pedal, but the shift lever will not move out of the Park position. The cause is almost always a failed shift lock solenoid, which is part of the shifter assembly. 🎬 Watch: Common symptoms of a failing shift interlock solenoid. It can also be caused by a blown fuse or a faulty brake light switch, as the solenoid needs a signal from the brake pedal to activate.

2. Shift Knob Button is Broken or Sticky

The release button on the front of the shift knob can break or become difficult to press. This can be due to internal plastic components wearing out or breaking over time. While sometimes just the button or knob can be replaced, the issue can also stem from the mechanism inside the main shifter body.

3. Shifter Feels Loose or Sloppy

If the shifter feels excessively loose or has a lot of play, it could indicate worn-out bushings either in the shifter assembly itself or at the end of the shift cable where it connects to the transmission. This can lead to difficulty in selecting the correct gear or the gear indicator not aligning properly.

4. Key is Stuck in the Ignition

In some cases, a faulty shift interlock system can prevent the key from being removed from the ignition. The vehicle's computer doesn't get the correct signal that the van is securely in Park, and as a safety measure, it won't release the key.

Known Issues, TSBs, and Recalls

While there are no widespread recalls specifically for the shift lever assembly on 2005-2013 Odysseys, Honda has issued recalls for related systems on other model years that share similar designs.

• NHTSA Campaign 13V092000: This recall was for 2003-2004 Odysseys where the ignition switch interlock could fail, allowing the key to be removed when not in Park. While not the same generation, it highlights the importance of the interlock system.
• NHTSA Campaign 13V143000: This recall affected 2012-2013 Odysseys. In sub-freezing temperatures, the brake-shift interlock could fail, allowing the shifter to be moved out of Park without pressing the brake pedal. The fix involved replacing a component called the shift interlock stopper within the assembly.

There are no specific Technical Service Bulletins (TSBs) for widespread shifter failure on the 2005-2013 models, as the primary failure point—the shift lock solenoid—is typically addressed as a standard repair rather than a campaign.

Buying a Used Transmission Shift Lever

A used OEM shifter assembly is often a reliable and cost-effective alternative to an expensive new part. Here’s what to look for to ensure you get a quality component.

1. Verify the Part Number and Transmission Type

First, confirm if you need a shifter for a 5-speed or 6-speed model. Check the OEM part numbers provided against the part you are buying. The seller should be able to confirm which vehicle the part was removed from.

2. Inspect the Shift Knob and Button

Check for excessive wear, cracks, or peeling on the shift knob. Press the release button several times; it should move smoothly and return to its original position without sticking. The leather-wrapped knobs on higher trims are particularly prone to showing wear.

3. Check the Electrical Connectors

Look at the electrical connectors on the bottom of the assembly. Ensure the plastic isn't cracked or broken and that none of the metal pins are bent, corroded, or pushed out of place. A damaged connector can cause intermittent electrical problems.

4. Examine the Base and Mounting Points

Inspect the plastic base of the shifter assembly for any cracks, especially around the mounting bolt holes. A cracked base can cause the shifter to feel loose even after it's installed correctly.

5. Ask About the Shift Lock Solenoid

While it's difficult to test a solenoid without power, you can ask the seller if the shifter was functioning correctly when removed. Reputable sellers of recycled parts will typically test these functions before listing the part for sale.

Cost Comparison

The cost of a replacement shifter assembly can vary significantly. A used OEM part offers a substantial savings over a new dealer part.

Replacement Difficulty: 2/5

Replacing the shifter assembly is a manageable DIY job for someone with basic tools and experience working on interior trim. No special tools are required.

Estimated Time: 1.5 hours

DIY Feasible: Yes

Basic Replacement Steps:

1. Disconnect the Battery: Always disconnect the negative battery terminal before working on electrical components.
2. Remove Center Console Trim: Carefully pry up the trim pieces around the shifter assembly. These are typically held in with clips.
3. Disconnect Electrical Connectors: Unplug the connectors for the shift lock solenoid and gear position indicator lights.
4. Disconnect Shift Cable: The shift cable connects the lever to the transmission. You will need to release a small clip to detach the cable from the side of the shifter assembly.
5. Unbolt the Shifter Assembly: Remove the four bolts that secure the shifter assembly to the floor of the vehicle.
6. Installation: Installation is the reverse of removal. After reconnecting the shift cable, ensure the vehicle shifts through all gears correctly before reassembling the console.
