2014-2024 Jaguar F-Type Shifter Problems: 'Gearbox Fault' and Getting Stuck in Park

Symptoms of a Failing Jaguar F-Type Shift Lever

A problem with the F-Type's shifter can be alarming, but the symptoms are often distinct. It's critical to note that many of these symptoms can also be caused by a weak or failing battery, which is a very common issue on these vehicles. Always check the battery's health and voltage before assuming the shifter is the culprit.

1. 'Gearbox Fault' Message

A yellow warning triangle accompanied by a "Gearbox Fault" message in the instrument cluster is one of the most common complaints. This can happen intermittently, sometimes clearing after restarting the car. While a faulty shifter module can cause this, it's frequently triggered by low battery voltage, which can create a variety of phantom electronic issues. In some cases, the wiring to the shifter can be damaged, for example by rodents, leading to the same error message.

2. Shifter Stuck in Park

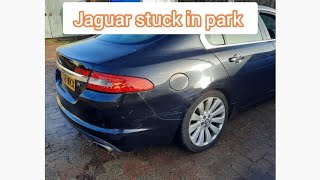

You start the car, but the gear selector will not move out of the 'P' (Park) position. This can be caused by a failure in the shifter's internal lock solenoid, a faulty brake pedal switch (the car needs to know your foot is on the brake to shift), or, once again, low system voltage from a weak battery. If you are stranded, there is an emergency park release lever located under the trim on the center console.

3. Inability to Select Gears or Flashing Indicator

The shifter moves, but the transmission doesn't engage the selected gear (e.g., you select 'D' but the car won't move). You may also see the gear indicator light (D, R, N) flashing on the shifter or on the dashboard display. This often points to a communication error between the shifter module and the transmission control module. In some cases, this has been addressed by a dealer software update.

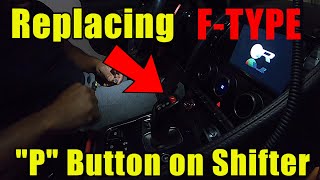

4. Worn or Broken 'P' Button

A common cosmetic issue is the lettering on the Park button wearing off. While this doesn't affect function, it can be an annoyance. The button itself can also break. Fortunately, aftermarket replacement buttons are available, and replacing just the button is a simple, straightforward repair that doesn't require removing the entire shifter assembly.

Known Issues, TSBs, and Recalls

While there are no official NHTSA recalls specifically for the transmission shift lever on the 2014-2024 F-Type, several Technical Service Bulletins (TSBs) and known electronic issues are relevant for diagnosis.

Technical Service Bulletin JTB00423NAS1

This is a critical TSB for early models. It applies to 2014-2015 F-Type models up to VIN K22184. The issue is that after coming to a stop, the vehicle will not move and the transmission acts as if it is in neutral. The gear indicator may flash 'D'. This is caused by a software issue in the Transmission Control Module (TCM). The fix is a software update performed by a Jaguar dealer. If you have an early model F-Type with these symptoms, a software update should be your first step.

The Weak Battery Problem

It cannot be overstated: Jaguar vehicles, including the F-Type, are extremely sensitive to battery voltage. A battery that is old, weak, or not fully charged can cause a wide range of bizarre electrical problems that seem unrelated, including the "Gearbox Fault" message and being stuck in park. Before spending money on a new shifter, ensure your battery is in excellent condition and holds a charge of at least 12.6 volts when the car is off.

Buying a Used F-Type Transmission Shift Lever

Due to the high cost of a new OEM shifter, a used, recycled part is an excellent option. However, careful verification is essential to ensure you get the right part.

1. Verify the Part Number Above All Else

This is the most important step. Over the F-Type's production run, Jaguar used several different shifter modules with different part numbers. While they may look identical, they can have internal hardware or software differences. The best way to ensure compatibility is to remove your original shifter and match the part number exactly. Common part number prefixes are EX53 (for earlier models) and GX53 (for later models).

2. Inspect for Physical and Cosmetic Damage

When you receive the used part, inspect it carefully:

• Connector Pins: Look at the main electrical connector. Ensure all pins are straight, clean, and free of corrosion. A bent pin will prevent the shifter from working.
• Cosmetic Condition: Check the condition of the trim, the leather on the handle, and the Park button. While cosmetic wear doesn't affect function, you want a part that matches the condition of your interior.
• Mechanical Feel: Move the lever through its range of motion. It should feel smooth with distinct detents for each position. Press the park button and the unlock trigger to ensure they move freely.

3. Why Choose Used OEM?

For a complex electronic part like the F-Type shifter, a used OEM unit is often a better choice than a new aftermarket one. A genuine Jaguar part ensures perfect fitment in the console, proper communication with the vehicle's other electronic modules, and maintains the original interior look and feel. Aftermarket electronics can sometimes introduce new, unpredictable communication errors.

Replacement Overview and Difficulty

Replacing the shifter assembly is a moderately difficult job that a patient DIYer can accomplish. The main challenge is carefully removing the center console trim without breaking clips or scratching panels.

• Difficulty Rating: 3 out of 5
• Estimated Time: 1.5 - 2.5 hours
• Tools Required: Torx drivers (T20, T30), plastic trim removal tools, small flathead screwdriver.

The general process involves disconnecting the battery, prying up the shifter surround trim, removing side panels on the console, disconnecting various electrical connectors, and unbolting the four Torx screws that hold the entire shifter assembly in place. 🎬 Watch: A complete walkthrough of the shifter replacement process. One video guide notes that there are plastic clips at the rear of the assembly that may need to be forcefully broken to remove the unit, as they are not strictly necessary for reinstallation.

Programming Requirements

If you replace your shifter with a used unit that has the exact same part number, programming is generally not required. The vehicle should recognize the component as a direct replacement. However, some sources suggest these modules can be VIN-coded, meaning a part from a different vehicle might require dealer programming to function correctly. Matching the part number is the best way to avoid this potential complication.

Cost Comparison

This table shows the approximate costs for different replacement options. Prices can vary based on supplier and location.
