2004-2009 Toyota Prius Shifter Problems: Diagnosis for When It Won't Go Into Gear or Turn Off
This guide explains the common failures of the Gen 2 Prius electronic shifter, including how to diagnose problems and what to look for when buying a used replacement.
- The most common failure is the shifter returning to Neutral, often caused by failing internal electronics.
- Before replacing the shifter, always test the 12V auxiliary battery, as a weak battery can cause identical symptoms.
- Replacement is a simple, 1-hour DIY job, making a used OEM part (under $100) a very smart alternative to a new part (over $600).
- There are no recalls for this part, but its failure is a well-documented and common issue for the 2004-2009 Prius.
Common Symptoms of a Failing Shift Lever
A failing shifter on a Gen 2 Prius can cause confusing and frustrating problems. Because the shifter is electronic, symptoms are often intermittent and can sometimes be mistaken for other issues, like a weak 12V battery.
1. Shifter Immediately Returns to Neutral
This is the most common failure. You move the joystick to 'D' for Drive or 'R' for Reverse, and the car engages the gear for a moment before popping back into 'N' for Neutral on its own. In some cases, you may have to physically hold the lever in the D or R position to keep the car moving, which is unsafe. This issue can be more frequent in hot weather, suggesting an electronic component inside the shifter is failing when it heats up.
2. Car Won't Turn Off or Go Into Park
Another prevalent issue is the inability to put the car into Park. You press the 'P' button, but the car remains in Neutral or another gear. This often leads to a related, more alarming problem: the car won't turn off. Because the vehicle's computer doesn't see that the transmission is safely in Park, it prevents the power from being shut down as a safety measure. This is a clear sign that the shifter assembly or its park switch has failed.
3. Sticky or Rough Shifter Movement
The shifter joystick should move smoothly and spring back to its central home position after you select a gear. If the lever feels sticky, rough, or gets stuck in the D or R position without returning to center, it points to an internal mechanical problem. Forum users have discovered that a thin plastic dust cover inside the assembly can warp or break over time, causing the mechanism to bind.
Pro Tip: Before assuming the shifter is bad, check your 12V auxiliary battery. A weak or failing 12V battery can cause a wide range of strange electronic issues in a Prius, including the inability to shift gears properly. If your battery is over five years old, have it tested before buying a new shifter.
Known Issues, TSBs, and Recalls
While there have been recalls for the 2004-2009 Prius for issues like the steering shaft and hybrid water pump, there are no active safety recalls for the transmission shift lever assembly itself.
However, the issue of the shifter failing is common enough that Toyota has issued a Technical Service Bulletin (TSB). TSB 0142-11 specifically addresses the condition where the vehicle won't go into Drive, Park, or Reverse. The official remedy is to replace the entire shift lever assembly.
Buying a Used 2004-2009 Prius Shift Lever: What to Check
Given that a new OEM shifter assembly can cost over $600, buying a quality used part is the most cost-effective solution for this common problem. Since the replacement is a simple DIY job for many, a used part offers significant savings.
What to Inspect:
- Seller Reputation and Warranty: The primary failure mode is electronic, which you can't see. Buy from a trusted seller that offers a warranty and a return policy in case the part is faulty.
- Physical Condition: Check for any cracks in the main plastic housing or the joystick itself. Ensure the blue-and-clear shift knob is not cracked or excessively worn, though this part can be unscrewed and swapped from your old shifter.
- Connector Pins: Look at the two electrical connectors on the back of the unit. Ensure the pins are straight, clean, and free of any corrosion.
- Joystick Action: Ask the seller to confirm that the joystick moves freely in all directions and springs back to the center position. A sticky feel could indicate the internal dust cover issue.
- Part Number Verification: The latest part number is 33560-47023, which supersedes older versions 33560-47021 and 33560-47022. All three are compatible with all 2004-2009 Prius models.
Cost Comparison: New vs. Used
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $610 - $780 |
| New Aftermarket | Not Available |
| Used OEM (Salvage/Online) | $25 - $100 |
| Shop Labor for Installation | $100 - $200 |
Replacement Overview
Replacing the shifter is a common DIY repair that can be completed in about 30-60 minutes with basic tools.
- Disconnect the 12V Battery: Always a good safety practice when working with electronic components.

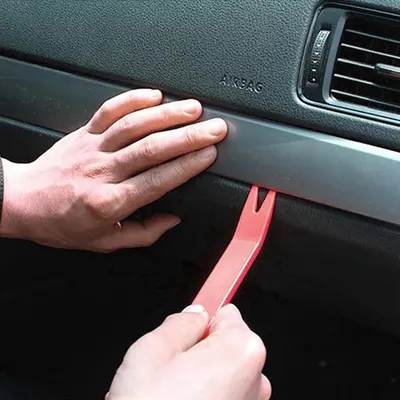

- Remove Trim Pieces: The process involves carefully prying off several plastic dash panels around the steering column and shifter. These are mostly held in by clips.
- Unbolt the Shifter: The assembly is held in by three 12mm bolts.
- Disconnect Electronics: Unplug the two wiring harnesses from the back of the shifter assembly.
- Swap and Reassemble: Installation is the reverse of removal. You may need to transfer the small illumination light bulb from your old unit to the new one.
Frequently Asked Questions (FAQ)
Can I drive my Prius if the shifter is failing?
It depends on the symptom. If you have to hold the lever in gear to drive, it is not safe. If the car will not go into Park, you risk a roll-away accident and may not be able to turn the car off. It is best to get the vehicle repaired immediately.
Is it hard to replace the Prius shifter myself?
No, this is considered an easy DIY job. It requires basic hand tools (screwdrivers, 12mm socket) and about an hour of your time. Many video tutorials are available online that walk through the process step-by-step.
My car won't shift, but the shifter seems okay. What else could it be?
The most common alternative cause is a weak or dead 12V auxiliary battery. The Prius relies on this battery for its computers to start up and control systems like the shifter. Always test the 12V battery before replacing other parts.
Why is a new shifter so expensive?
The shifter is a complex electronic assembly containing sensors, switches, and a circuit board, not just a simple plastic and metal lever. This complexity, combined with it being a dealer-only part, results in a high price for a new unit.
Technical Specifications
OEM Part Numbers: 33560-47021 33560-47022 33560-47023
Shift-by-wire electronic joystick with Hall effect sensors. Two rear electrical connectors. Three-bolt mounting pattern.
