2014-2023 Jeep Cherokee Forward Camera: ADAS Faults and Calibration Explained

Symptoms of a Failing Forward-Facing Camera

When the forward-facing camera begins to fail, you will typically see warning messages on your instrument panel and notice that certain safety features are no longer available. The vehicle's onboard diagnostics will also store specific trouble codes.

• Warning Messages: The most common indicators are messages on the dashboard such as "ACC/FCW Unavailable Service Required," "Forward Collision Alert (FCW) not available," or "Lane assist not available".
• Disabled Safety Features: You will find that features like Adaptive Cruise Control or Lane Keeping Assist cannot be activated. The buttons may not respond, or they will immediately turn off after being engaged.
• Diagnostic Trouble Codes (DTCs): A professional scan tool may reveal codes related to the Forward Facing Camera Module (FFCM). A common code indicating an internal electronic failure is C008E-00 (ECU Internal Performance).
• Intermittent Operation: The system may work sporadically, often failing in adverse weather like heavy rain, snow, or when driving into direct sunlight. While some of this is normal operational limitation, frequent or persistent unavailability can signal a failing camera.

Buying a Used Forward-Facing Camera

Purchasing a used OEM camera can be a cost-effective solution, but careful inspection and verification are essential for this critical safety component.

Verify Your Part Number

It is crucial to match the OEM part number on your original camera exactly with the used replacement. Jeep used several different part numbers and updated them over the years (e.g., 68272145AH was superseded by 68272145AI, and so on). Installing a camera with the wrong part number will likely result in incompatibility and a system that will not calibrate or function.

Physical Inspection Checklist

When you receive the used camera, inspect it carefully before installation:

• Lens: Check for any scratches, cracks, or haziness on the camera lens.
• Housing: Look for cracks or damage to the plastic housing, which could indicate it came from a vehicle in a major collision.
• Connector: The electrical connector pins should be straight, clean, and free of any corrosion.
• Mounting Bracket: Ensure the mounting bracket that attaches to the windshield is intact and not damaged.

Why a Used OEM Camera is a Smart Choice

For a complex electronic component like an ADAS camera, a used OEM part is often a better choice than a new aftermarket one. The OEM camera was designed and tested by the manufacturer to work seamlessly with your Cherokee's software and other safety systems. Aftermarket versions can have unpredictable quality and may fail to calibrate correctly, rendering them useless. A tested, verified used OEM camera provides the same performance as a new one at a fraction of the price.

Known Issues, TSBs, and Recalls

While there are no widespread recalls specifically for the forward-facing camera on the 2014-2023 Cherokee, some related issues have been noted.

• Technical Service Bulletin (TSB) 08-042-23 REV. A: This TSB was issued for some 2022-2024 Jeep Compass and Renegade models (not the Cherokee specifically, but relevant technology) for DTC C008E-00, which indicates an internal failure of the Forward Facing Camera Module (FFCM). The solution is to replace the module.
• Windshield Replacement Issues: A very common cause of camera-related problems is an improperly performed windshield replacement. The camera must be removed and reinstalled on the new glass, and this process requires a recalibration to ensure it is aimed correctly. Failure to calibrate will result in ADAS errors.
• Software Glitches: Some owners have reported that software updates, either performed at the dealership or over-the-air, have caused issues with the forward collision system. In some cases, a system reset or a subsequent software patch 🎬 See how to reset the forward collision warning light is required.

Replacement and Mandatory Calibration

Physically swapping the camera is relatively simple, but the final, mandatory step of calibration makes this a job for professionals.

Difficulty Rating: 4 out of 5

The physical installation involves carefully removing the plastic trim around the rearview mirror, disconnecting the electrical connector, and releasing the camera from its bracket on the windshield. However, once the new (or used) camera is installed, it must be electronically recalibrated.

What is Calibration?

Calibration is a process that aims the camera precisely so it can accurately judge distances and positions of lane lines and other vehicles. There are two types:

• Static Calibration: Performed in a workshop with the vehicle stationary, using special targets placed at precise distances and positions in front of the vehicle.
• Dynamic Calibration: Requires driving the vehicle on well-marked roads for a specific amount of time and at certain speeds, allowing the camera to learn and align itself.

This procedure requires expensive, specialized equipment and software that most DIY mechanics do not have. A dealership or a qualified auto glass shop or repair facility with ADAS service capabilities must perform the calibration. Skipping this step will result in a non-functional system and persistent warning lights on your dash.

Cost Comparison

The cost of replacing the forward-facing camera can vary significantly, with the mandatory calibration being a major expense.

Clearing Up Confusion: This is NOT a Blind Spot or Backup Camera

It's important to distinguish the forward-facing camera from other sensors on the vehicle.

• Blind Spot Monitors: The blind spot system uses radar sensors, not cameras, located in the rear bumper corners to detect vehicles in adjacent lanes.

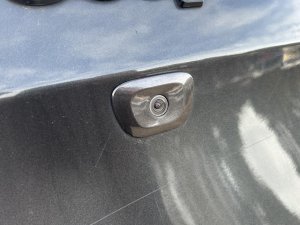

• Rear Park Assist/Backup Camera: This is a separate, lower-resolution camera located on the rear liftgate, used only for displaying an image when the vehicle is in reverse.

The part discussed in this guide is exclusively the high-resolution camera at the top of the windshield that looks forward.
