2019-2025 Mazda3 & CX-30 Camera Guide: FSC, Backup Camera & i-ACTIVSENSE Faults

Understanding the Camera Systems in Your Mazda3 and CX-30

The 2019-2024 Mazda3 and 2020-2025 Mazda CX-30 utilize a sophisticated suite of cameras and sensors for their i-ACTIVSENSE safety features. It's important to understand that there isn't just one "video camera." Depending on your vehicle's trim and options, it could have several. This guide will break down each component, its common failure points, and what to look for when purchasing a replacement.

1. Forward Sensing Camera (FSC)

This is the primary camera for the active safety systems, located high on the inside of the windshield near the rearview mirror. It provides the data for Lane-keep Assist, Smart Brake Support (automatic emergency braking), and High Beam Control.

Symptoms of a Failing FSC

• i-ACTIVSENSE Warning Light: An amber warning light on the dash is the most common symptom, often accompanied by a message on the multi-information display.
• Disabled Safety Features: Systems like Lane-keep Assist, Mazda Radar Cruise Control, and Smart Brake Support will become unavailable.
• "Front Camera Sensor System Malfunction" Message: This specific message indicates a fault detected by the system.
🎬 Watch: Understanding the front camera sensor system malfunction warning
• Sudden, Unexpected Braking: A serious and known issue where the Smart Brake System (SBS) falsely detects an obstacle and applies the brakes.

Known Issues, TSBs, and Recalls

• Recall 4219L (NHTSA 19V907): Affecting 2019-2020 Mazda3 vehicles, this recall addresses a software issue where the Smart Brake System (SBS) could falsely detect an object and unexpectedly stop the vehicle. The fix involves a software update performed by a dealer.
• Recall 6824H: This recall affects a small number of 2024 Mazda3 and 2024 CX-30 vehicles. A malfunction in the FSC can disable the automatic emergency braking, lane-keep assist, and automatic high beams. Dealers will inspect and replace the camera if necessary.
• TSB for DTC U3000:04: A technical service bulletin was issued for 2019-2021 Mazda3 and 2020-2021 CX-30 models that display i-ACTIVSENSE warnings and store a U3000:04 trouble code. This indicates an internal hardware failure in the FSC, requiring replacement with a modified part.
• Heat-Related Issues: Some earlier models could experience temporary FSC shutdowns in very hot weather, triggering a U3000:98 DTC. This is a protective measure to prevent hardware damage.
• Environmental Factors: The owner's manual and TSBs note that temporary issues can be caused by a dirty or foggy windshield, direct sun glare, or even a weak 12-volt battery, which can trigger spurious error codes.

2. Rear View (Backup) and 360° View Cameras

These cameras are for parking and low-speed maneuvering. Base models have a single rear camera mounted on the trunk or liftgate. Higher trims may include the 360° View Monitor, which adds cameras to the front grille and under each side mirror.

Symptoms of Failure

• No Image or Black Screen: When shifting into reverse, the screen is black or displays a "No Video Signal Available" message.
• Flickering or Distorted Image: The camera feed is unstable, has lines running through it, or the image is fuzzy.
• Cloudy or Foggy View: Moisture has entered the camera housing, obscuring the lens.

Known Issues

While the specific 2019+ Mazda3 and 2020+ CX-30 models were not part of a major backup camera recall, earlier Mazda3 models (2014-2018) were recalled for a faulty wiring harness that could cause flickering or failure. This highlights the importance of checking wiring and connections, as the issue is often the harness or connector, not the camera itself. 🎬 See this walkthrough for fixing a Mazda3 backup camera A loose connection is a common point of failure.

3. Related Components (Often Confused with Cameras)

Buyers sometimes misidentify other components as cameras. It's important to know the difference before purchasing.

• Active Driving Display (Heads-Up Display): This is a projector unit, not a camera. It displays information on the windshield or a small pop-up screen. Failures can include a distorted or disappearing image, sometimes caused by moisture getting inside the unit. A TSB (09-002/25A) exists for this issue on other Mazda models.
🎬 Watch: Why your HUD image is distorted or blank

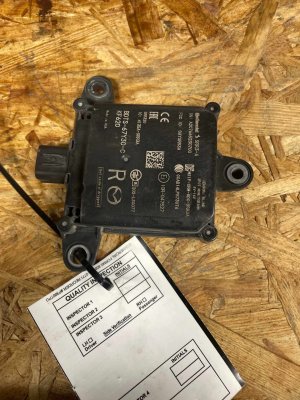

• Blind Spot Monitoring (BSM) Sensors: These are radar sensors located in the rear bumper, not cameras. They detect vehicles in your blind spots. A failure will trigger a BSM warning light. Part numbers like B0J9-67-Y30D are for these radar units, which can be expensive.

Buying a Used Video Camera

Purchasing a used OEM camera can be a cost-effective solution, but careful inspection is key.

What to Check Before You Buy:

• Verify the Part Number: Mazda uses many similar-looking parts. Match the part number from your old unit exactly. Superseded part numbers are common, so verify that the new number replaces your old one. For example, BDGF-67-XCXF replaces several earlier versions of the FSC.
• Inspect the Lens: For any camera (FSC, rear, or 360°), check the lens for deep scratches, cracks, or any signs of internal fogging or moisture. A clear, undamaged lens is critical.
• Check Connectors and Wiring: Ensure the electrical connector and any attached wiring pigtails are free of corrosion, bent pins, or damage. A damaged connector is a major red flag.
• For Forward Sensing Cameras (FSC): Ask about the donor vehicle's history if possible. Avoid cameras from vehicles with heavy front-end damage. While the camera itself might look fine, a major impact could have caused internal damage.
• Why Used OEM is a Good Choice: For components like cameras, used OEM parts are often superior to cheap aftermarket alternatives. They ensure proper fitment, correct connector types, and maintain the original image quality and system integration, which is especially critical for the FSC.

Cost Breakdown

Prices can vary based on the specific camera and supplier. The Forward Sensing Camera is the most expensive, especially when factoring in mandatory calibration.
