Subaru EyeSight & Backup Camera Failures: 2017-2025 Ascent, Crosstrek, Forester & More
This guide covers the common failures, recalls, and expensive replacement costs for the two distinct camera systems used in modern Subaru vehicles.
- Subaru's EyeSight cameras are extremely expensive, with dealer replacement often costing over $3,000.
- Professional calibration is MANDATORY after replacing an EyeSight camera or a windshield, costing $250-$600 alone.
- Many backup camera failures are caused by a faulty inhibitor switch, which was part of a major recall for 2021-2023 models.
- The rear backup camera is a much cheaper, DIY-feasible replacement compared to the complex EyeSight system.
Understanding Your Subaru's Camera Systems
Before diagnosing a problem, it's crucial to identify which camera system you're dealing with. Issues with the rear backup camera typically only affect the display when the vehicle is in reverse. Problems with the forward-facing EyeSight cameras will usually trigger warning lights on the dashboard, such as "EyeSight Off," and disable safety features like adaptive cruise control and pre-collision braking.
Section 1: EyeSight Forward-Facing Cameras
The EyeSight system is a sophisticated safety feature, but its cameras are sensitive and expensive to replace. 🎬 Watch: Why EyeSight repairs can cost thousands of dollars. Failures can occur due to internal malfunctions, damage from a collision, or even improper windshield replacement.
Symptoms of EyeSight Camera Failure
- "EyeSight Off" Warning Light: This is the most common symptom. The system has detected a fault and has disabled itself.
- Flashing Dashboard Lights: Often, other lights related to cruise control, lane assist, and pre-collision braking will illuminate.
- Disabled Safety Features: You will be unable to use adaptive cruise control, lane-keeping assist, or other EyeSight-dependent functions.
- Diagnostic Trouble Codes (DTCs): A professional scan tool may reveal codes like E5 (camera halt mode) or B28C7 (camera cooling fan failure). One owner reported a B28BA code that prevented recalibration.
Warning: Any collision, even a minor fender-bender, can knock the EyeSight cameras out of alignment, requiring a professional recalibration to ensure safety systems function correctly.
Known Issues and TSBs
A Subaru Technical Service Bulletin (TSB), 07-225-24, was issued in March 2024 for some 2022-2025 models experiencing error codes E5 and B28C7. These codes point to internal camera halt or cooling fan malfunctions, often triggered by high humidity or temperature. While software updates were released, some owners report the issue returning, ultimately requiring a full camera assembly replacement.
Replacement and Mandatory Calibration
Replacing an EyeSight camera is not a DIY-friendly job. The physical replacement of the camera unit is only the first step. The critical and most costly part of the process is the system calibration.
Calibration is NOT optional. After a camera is replaced, or even when a windshield is replaced, the EyeSight system must be precisely calibrated using specialized targets, lasers, and software. 🎬 See how technicians perform the complex EyeSight calibration process. This ensures the cameras are perfectly aligned with the vehicle's centerline and can accurately judge distances for safety features. Failure to calibrate will result in a non-functional EyeSight system and persistent warning lights.
- Who can perform calibration? Subaru dealerships and some high-end independent or glass shops with the specific, expensive Subaru calibration equipment. Most general mechanics cannot perform this service.
- What does calibration cost? If not bundled with a windshield replacement, expect to pay between $250 and $600 for the calibration service alone.
Section 2: Rear Backup Camera
The rear backup camera is a more straightforward component than the EyeSight system. Failures are common and often related to the camera itself, its wiring, or a related switch.
Symptoms of Backup Camera Failure
- Black, Blue, or Flickering Screen: When you shift into reverse, the infotainment screen is black, blue, or the image is unstable.
- Distorted or Foggy Image: The image may appear blurry, discolored, or as if there is moisture inside the lens. This is often a sign of water intrusion, a common failure point.
- No Image Displayed: The infotainment system works normally, but the camera view never appears when in reverse.
- Parking Guidelines Missing or Incorrect: The camera image may appear, but the colored guidance lines are gone or misaligned.
Known Issues, Recalls, and TSBs
Subaru issued a significant recall (NHTSA ID pending, Subaru recall WRQ-23) for approximately 95,830 vehicles due to a faulty inhibitor switch. This switch tells the car it's in reverse. A defective weld could allow water to enter the switch, causing it to fail. When it fails, both the reverse lights and the backup camera may not activate.
- Vehicles Affected by Recall:
- 2021 Subaru Crosstrek
- 2022 Subaru Forester
- 2021-2023 Subaru Legacy
- 2021-2023 Subaru Outback
Owners of affected vehicles should have been notified by January 8, 2024, for a free replacement of the switch at a dealership.
Replacement Procedure
Replacing the rear backup camera is a feasible DIY project for those comfortable with removing interior trim panels. The general process involves:
🎬 Watch this step-by-step guide to replacing your backup camera.- Removing the interior trim panel from the rear liftgate.
- Disconnecting the wiring harness from the old camera.
- Unbolting the exterior liftgate garnish panel to access and remove the camera assembly.
- Installing the new camera and reconnecting the wiring.
- Testing the camera by putting the vehicle in reverse before reassembling all trim panels.
Pro Tip: Take pictures as you disassemble the trim panels. The plastic clips can be tricky, and having a visual reference makes reassembly much easier.
Buying a Used Video Camera
Purchasing a used OEM camera can offer significant savings, but careful inspection is key.

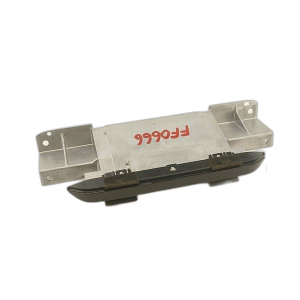

For a Used EyeSight Camera:
- Verify Part Numbers: Match the part number exactly to your vehicle's original camera. There are many variations.
- Inspect the Lens: Check for any deep scratches, chips, or cloudiness on the lens surface. While Subaru warns against touching the lenses, a used part may have been handled improperly.
- Check Connectors: Ensure the electrical connector and all pins are clean, straight, and free of corrosion.
- Get a Warranty: Because it's an electronic component and you can't test it before the complex calibration process, buy from a seller that offers a warranty.
- Factor in Calibration Costs: Remember that even with a perfectly good used camera, you will still need to pay for professional calibration.

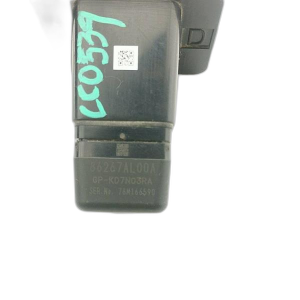

For a Used Rear Backup Camera:
- Look for Water Damage: This is the number one killer of these cameras. Inspect the housing and connector for any signs of corrosion or a water line.
- Check the Lens Clarity: The lens cover should be clear and free from deep scratches or yellowing that could distort the image.
- Confirm Compatibility: Ensure the camera is for a vehicle WITHOUT the optional 'Smart View' digital rearview mirror system, if your vehicle is not equipped with it.
- Wiring Pigtail: If the camera comes with a section of the wiring harness, ensure it hasn't been cut too short and the wires are in good condition.
Cost Comparison
| Part | New OEM | New Aftermarket | Used OEM | Shop Labor (Installation) |
|---|---|---|---|---|
| EyeSight Camera | $2,000 - $3,500 | Not Widely Available | $300 - $800 | $400 - $600 (Incl. Calibration) |
| Rear Backup Camera | $130 - $300 | $50 - $150 | $40 - $120 | $150 - $400 |
Frequently Asked Questions
Can I replace an EyeSight camera myself to save money?
While you could physically swap the part, it will not function until it is professionally calibrated. This process requires equipment costing tens of thousands of dollars, making it impossible for DIYers. The real cost is in the calibration, not just the installation.
Does replacing the windshield always require EyeSight recalibration?
Yes, Subaru requires it. Even tiny differences in glass position or optical clarity can affect the system's accuracy. Driving without recalibration can render safety systems unreliable. Some glass shops may claim it's not always needed, but it is the official, and safest, procedure.
My backup camera is just blurry. Does the whole thing need to be replaced?
First, thoroughly clean the lens with a soft microfiber cloth. Road grime and salt can easily obscure the view. If it's still blurry, the seal has likely failed and allowed moisture inside, which requires replacing the camera unit.
Why did my backup camera stop working, but my reverse lights are also out?
This strongly points to the faulty inhibitor switch that was the subject of a major recall. The switch fails to tell the car it is in reverse, so neither the lights nor the camera are activated. Check if your vehicle is part of the recall.
Helpful Videos
Technical Specifications
OEM Part Numbers: 85301XC000 86267XC00A 87501XC000 87501XC010 87501XC011 87501XC10B 87501XC10C 87501XC10D 87542XC00A 87611FL000 87611FL00A 87611SJ003 87611SJ004 87611XC00A 87611XC00B
System includes two distinct camera types: a rear-mounted backup camera and a forward-facing stereo camera system (EyeSight). EyeSight cameras require precise static and dynamic calibration after any replacement or disturbance.
