2010-2018 Acura RDX Wheels: Decoding Specs, Corrosion Issues, and Used Buying Tips
This guide covers the key differences between RDX generations, common finish problems, and how to inspect a used wheel before you buy.
- The 2010-2018 RDX spans two generations (2010-12 and 2013-18) with different wheel styles but identical core specs: 18x7.5, 5x114.3 bolt pattern, and +45mm offset.
- A common issue is cosmetic corrosion where the clear coat fails, especially in salty climates; this is not a structural defect but can be expensive to refinish.
- When buying used, prioritize checking for cracks and bends over cosmetic flaws. A structurally sound but ugly wheel can be refinished.
- Vibrations are the main sign of a bent wheel, while a loud humming or grinding noise that changes with speed usually points to a bad wheel bearing.
Generational Differences and Key Specifications
The 2010-2018 Acura RDX spans two distinct vehicle generations. While many core specifications are similar, the wheel designs and part numbers are different. The standard factory wheel for base models without the Advance Package is an 18x7.5-inch alloy. It is crucial to confirm which generation your RDX belongs to before purchasing a replacement.
| Specification | 1st Generation (2010-2012) | 2nd Generation (2013-2018) |
|---|---|---|
| Standard Wheel Size | 18" x 7.5" | 18" x 7.5" |
| Bolt Pattern | 5x114.3 mm | 5x114.3 mm |
| Offset | +45 mm | +45 mm |
| Center Bore | 64.1 mm | 64.1 mm |
| Lug Nut Torque | 80 ft-lbs | |

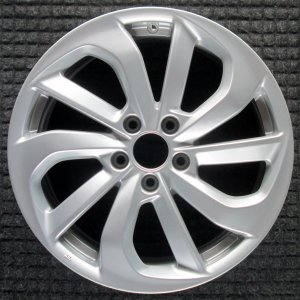

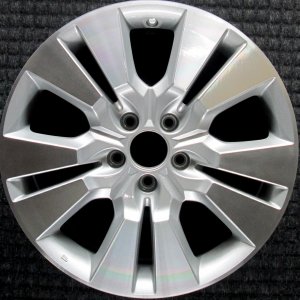

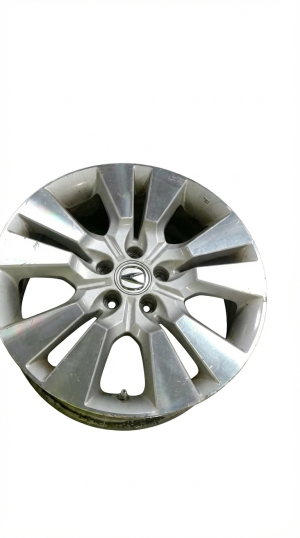

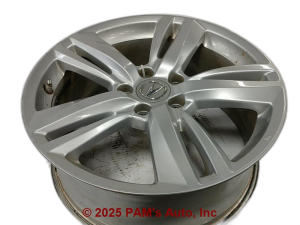

| Common OEM Part Numbers | 42700-STK-A82 (5-double spoke, machined finish) | 42700-TX4-A91 (2013-2015, silver painted), 42700-TX4-A71 (2016-2018, silver painted), 08W18-TX4-200 (machined grey) |
Pro Tip: Some higher trim levels, like those with the Advance Package, may have been equipped with larger 19-inch wheels. Always confirm your vehicle's original wheel size, which can be found on the sticker in the driver's side door jamb.
Known Issues: Clear Coat Corrosion and Finish Failure
The most widely reported issue with 2010-2018 Acura RDX wheels is not structural, but cosmetic. Many owners, particularly those in regions that use road salt in the winter, have experienced the factory clear coat bubbling, peeling, or delaminating. This allows moisture and salt to get underneath the protective layer and attack the machined aluminum surface, causing white, spiderweb-like corrosion.
This typically starts from a small rock chip or curb scrape that compromises the clear coat. Once the corrosion begins, it can spread under the finish. While it looks bad, minor surface corrosion is not a structural safety concern. However, if left unchecked for years, it can lead to pitting of the aluminum.
No Major Recalls: There have been no major safety recalls issued by the National Highway Traffic Safety Administration (NHTSA) for wheel failures on the 2010-2018 Acura RDX. The most significant recalls for this period relate to Takata airbag inflators.
Symptoms of a Damaged Wheel
A damaged wheel can present serious safety risks. Unlike cosmetic corrosion, a bent or cracked wheel requires immediate attention. Watch for these symptoms:
- Vibration or Shaking: A vibration that is felt through the steering wheel or the whole car, especially at highway speeds, is a primary symptom of a bent wheel.
- Vehicle Pulling to One Side: A severely bent wheel can alter the vehicle's alignment and cause it to pull to the left or right.
- Uneven Tire Wear: A bent wheel will cause the tire to wobble as it rotates, leading to rapid and uneven tread wear.
- Visible Wobble: In extreme cases, you may be able to see the wheel and tire assembly wobbling when driving slowly (as observed from another car) or when the wheel is spun on a balancer.
- Difficulty Balancing: If a tire shop reports that a wheel is impossible to balance or requires an excessive amount of weight, it is likely bent.
Is It the Wheel or the Wheel Bearing?
Symptoms of a bad wheel are often confused with a failing wheel bearing. A bad wheel bearing typically produces a distinct noise.
- Bad Wheel Bearing: The key symptom is a humming, rumbling, or grinding noise that gets louder with vehicle speed. The sound may change pitch when you turn left or right, as weight shifts off of and onto the failing bearing.
- Bent Wheel: The key symptom is a vibration or shake, which may or may not be accompanied by noise. The noise from a bent wheel is usually more of a rhythmic thumping sound tied to wheel rotation. 🎬 Learn how to tell if the noise is a bearing or a tire.
Buying a Used 2010-2018 Acura RDX Wheel
A used OEM wheel is often a great value, offering the same quality and fit as a new one for a fraction of the price. However, careful inspection is essential.
How to Inspect a Used Wheel
- Check for Cracks: This is the most important safety check. Inspect the entire wheel, front and back. Pay close attention to the area where the spokes meet the outer rim and around the lug nut holes. Use a flashlight to look for hairline cracks.
- Look for Bends: Place the wheel on a flat surface and look for any gaps between the rim edge and the ground. The best way to check for a bend is to have it spun on a wheel balancing machine, which will immediately reveal any wobble. Minor bends can often be repaired by a specialist, but it's an added cost.
- Inspect for Previous Repairs: Look for signs of welding on the back of the wheel. Check for sanding marks, areas of mismatched paint, or a lumpy texture that could indicate the use of body filler to hide damage. A quality repair is safe, but a poor one is a major red flag.
- Examine the Finish: Check for the common corrosion issue. Look for bubbling or peeling clear coat. Minor cosmetic flaws can be a good way to get a discount on a structurally sound wheel, but be aware that refinishing it will cost extra.
- Verify the Part Number: If possible, match the part number stamped on the back of the wheel to your original wheel to ensure you are getting the exact same style and specification. 🎬 See what to watch for when buying used wheels.
OEM vs. Aftermarket Wheels
When replacing a single wheel, it's almost always best to choose a used or reconditioned OEM wheel to ensure a perfect match in color, design, and specification. If replacing all four, you have more options, but quality varies widely. Cheap aftermarket wheels can be made from lower-grade materials, making them heavier and more prone to cracking or bending from potholes. An OEM wheel is engineered specifically for the RDX's weight, suspension, and performance characteristics.
Cost Comparison
Prices can vary based on condition, location, and supplier. This table provides a general estimate.
| Part Type | Estimated Cost (Per Wheel) |
|---|---|
| New OEM | $280 - $440 |
| Used OEM | $125 - $200 |
| Reconditioned OEM | $170 - $250 |
| New Aftermarket | $150 - $500+ |
| Shop Labor (Mount & Balance) | $25 - $50 |
| Wheel Refinishing (Cosmetic) | $150 - $220 |
| Wheel Straightening (Bent Rim) | $150 - $400 |
Frequently Asked Questions
Will a wheel from a 2012 RDX fit on a 2015 RDX?
Yes, physically it will fit. Both generations use the same 18x7.5 size, 5x114.3 bolt pattern, +45mm offset, and 64.1mm center bore. However, the spoke design and finish are different, so it will not match the other three wheels on your 2015 RDX.
Can a corroded wheel be repaired?
Yes. If the corrosion is only on the surface, the wheel can be professionally refinished. This process involves chemically stripping the old finish, sanding away the corrosion, and then powder coating or painting and clear coating the wheel to look like new. Costs typically start around $150-$200 per wheel.
What happens if I use a wheel with the wrong offset?
Offset is the distance from the wheel's mounting hub to its centerline. The wrong offset can cause problems. Too little offset (wheel sticks out too far) can cause the tire to rub on the fender. Too much offset (wheel is too far inboard) can cause the tire or wheel to interfere with suspension components or brake calipers. Both scenarios can put extra stress on the wheel bearings and negatively affect handling.
Do I need to get an alignment after replacing a wheel?
If you are simply replacing a damaged wheel with a straight one, an alignment is not usually required. However, if the wheel was damaged by a significant impact, like hitting a large pothole or curb, it's a good idea to have the alignment checked, as the impact could have bent a suspension component like a control arm or tie rod.
Helpful Videos

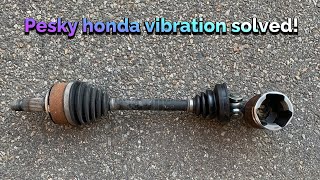

![Acura RDX Vibration during acceleration. Left and Right Axle Replacement (2011 Acura RDX) [E111]](https://img.youtube.com/vi/Ei0hfYXltr8/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: 42700STKA82 42700TX4A71 42700TX4A91 08W18TX4200 08W18TX4201
Size: 18x7.5 inches, Bolt Pattern: 5x114.3 mm, Offset: +45 mm, Center Bore: 64.1 mm, Lug Nut Torque: 80 ft-lbs
