2017-2026 Tesla Model 3 & Model Y Wheel Cover Guide: Decoding Aero, Gemini & Nova Types

Decoding Tesla Model 3 & Model Y Wheel Covers

A major point of confusion for owners is identifying the correct wheel cover, as compatibility depends on vehicle model, year, and wheel size. Using the wrong cover can lead to a poor fit, rattling noises, or the cover falling off. Below are the primary OEM styles for the Model 3 and Model Y.

1. 18-inch Aero Covers (Model 3, 2017-2023)

These are the standard covers for most Model 3 vehicles from 2017 to 2023 equipped with 18-inch wheels. Many owners remove these covers to expose the gray alloy wheel underneath, using a separate center cap and lug nut cover kit.

2. 19-inch Gemini Covers (Model Y, 2020-2024 & some Model 3)

These are the standard wheel covers for most Tesla Model Y vehicles, which come with 19-inch 'Gemini' wheels. They were also an optional upgrade on some Model 3s. They have a distinct, flatter, multi-spoke design compared to the 18-inch Aero covers.

3. 19-inch Nova & 18-inch Photon Covers (Model 3 "Highland", 2024+)

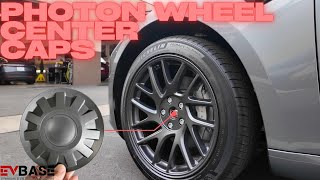

The refreshed 2024+ Tesla Model 3, known as the 'Highland,' introduced new wheel designs. The standard 18-inch wheel uses the 'Photon' cover, while the optional 19-inch wheel uses the 'Nova' cover. 🎬 See: Upgrading your Photon wheels to the Nova style These covers are not compatible with any pre-2024 Model 3 or any Model Y.

Symptoms of a Failing Wheel Cover

Failure for a wheel cover is typically straightforward and does not affect the vehicle's drivability, though a cover detaching at speed can be a hazard to other drivers.

• Rattling or Clicking Noises: This is the most common symptom. A metallic or plastic rattling sound, especially at low speeds, often indicates that one or more of the retaining clips are loose or that the cover is not seated properly.
• Loose Fit: If you can easily wiggle or spin the wheel cover by hand, its retaining clips have lost tension. This often happens after repeated removals for tire rotations or from wear and tear.
• Visible Damage: Cracks, especially radiating from the center or near the clips, can compromise the cover's structural integrity. Deep gouges from curb impacts can also weaken the plastic.
• Falling Off: This is the ultimate failure. It is almost always preceded by a loose fit or rattling. The primary causes are improper installation or broken/worn clips.

Buying a Used Tesla Wheel Cover: What to Check

Purchasing a used OEM wheel cover is a cost-effective way to replace a lost or damaged one. However, careful inspection is key to getting a good part.

1. Verify Compatibility Above All Else

Before looking at condition, confirm you are buying the correct part. Check three things:

• Vehicle Model: Model 3 vs. Model Y.
• Wheel Size: 18-inch vs. 19-inch.
• Style/Year: Is it a pre-refresh Aero, a post-refresh Aero, a Gemini, or a Highland-specific Nova/Photon? A 2021 Model 3 Aero cover will not perfectly match a 2019 model.

2. Inspect the Retaining Clips

This is the most critical inspection point. The cover is held on by a series of plastic or metal clips on the back.

• Check for broken or missing clips. Even one bad clip can cause rattling and lead to the cover falling off.
• Look for stress marks (white lines in the plastic) around the base of the clips, which indicate they are fatigued and may soon break.
• Gently flex a clip. It should feel firm, not soft or brittle.

3. Examine the Cover Body

• Scratches vs. Cracks: Minor curb rash and surface scratches are cosmetic and typical for a used part. However, reject any cover with visible cracks, no matter how small. A crack will grow and eventually cause the cover to fail.
• Check the Outer Rim: Ensure the outer edge isn't warped or severely damaged, as this can prevent it from sitting flush against the wheel.

Known Issues and Fixes

No official recalls have been issued by the NHTSA for Model 3 or Model Y wheel covers rattling or falling off. However, the issue is widely discussed by owners.

The Common Rattle and DIY Fix

The most frequent complaint is a rattling noise. This happens when the clips lose tension and the plastic cover vibrates against the metal wheel. The community-approved solution is simple and effective:

1. Remove the wheel cover.
2. Clean the inside of the cover thoroughly.
3. Apply a thin strip of self-adhesive foam tape (like weather stripping or draft excluder) around the inner perimeter of the cover. Some owners also place small pieces of foam on the back of the spokes.
4. Reinstall the cover. The foam acts as a cushion, eliminating the plastic-on-metal vibration and creating a much snugger fit.

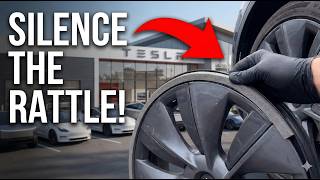

🎬 Watch: The easiest DIY fix for noisy Aero covers

Replacement Difficulty: 1 out of 5

Replacing a wheel cover is one of the easiest tasks you can perform on your Tesla. No tools are required.

• Estimated Time: 2 minutes
• DIY Feasible: Yes

Removal & Installation Steps

1. To Remove: Grasp the cover firmly on two sides and pull it straight toward you. The retaining clips will release with a popping sound. It can require a firm, steady pull.
2. To Install: First, align the notch in the wheel cover with the tire's valve stem. This is a critical step for proper fit. Once aligned, press firmly on the center of the cover to begin seating it, then work your way around the perimeter, pushing firmly on each spoke until you hear and feel it click into place. Give the edges a quick tug to ensure all clips are engaged before driving.

Cost Comparison

Frequently Asked Questions (FAQ)

OEM Part Numbers

The following OEM part numbers are associated with wheel covers for the Model 3 and Model Y. Note that these numbers represent different styles (Aero, Gemini, etc.) and several design revisions. Always verify the exact style and size needed for your vehicle.

Known part numbers include: 1044231-00-B, 1044231-99-B, 1044235-00-A, 1044235-00-B, 1044235-00-C, 1044235-01-C, 1044271-00-A, 1044271-00-B, 1044271-00-C, 1344251-P0-B, 1344256-00-A, P1044281-00-D, 1344279-00-A, 1044271-00A.
