2002-2010 Lexus SC430 Wheels: Solving the 60 MPH Vibration and Fitment Guide
This guide details the common causes of steering wheel shimmy and provides the essential specifications for selecting the correct replacement wheel for your 2002-2010 Lexus SC430.
- A steering wheel vibration between 50-70 mph is the most common issue and is almost always caused by a bent wheel or improper tire balancing; a 'Road Force' balance is often required.
- The correct wheel specifications are: 18x8 size, 5x114.3 bolt pattern, +45mm offset, and a 60.1mm center bore. Deviating from these can cause fitment and handling problems.
- Used OEM wheels are a good value, but inspect them carefully for cracks and signs of previous weld repairs. Do not use a cracked wheel.
- The large, round center cap (part #42603-24240) is a separate and very expensive part; verify if it's included when buying a used wheel.
Known Issues & Common Problems: 2002-2010 Lexus SC430 Wheel
The Infamous 60 MPH Steering Wheel Vibration
The most widely reported issue by SC430 owners is a distinct vibration or shimmy felt in the steering wheel, typically occurring between 50 and 70 mph. While this can be alarming, it is rarely a sign of a catastrophic failure and is almost always related to the wheel and tire assembly. The SC430's suspension is notoriously sensitive to any imbalance.
- Improper Balancing: Standard balancing may not be sufficient. Many owners and shops report that a "Road Force" balance is necessary to solve the vibration. This type of balancing uses a roller to simulate the force of the road on the tire, detecting variations in the tire and wheel that a standard balancer would miss.
- Bent Rims: Even a minor bend in the wheel, often caused by hitting a pothole, can cause a persistent vibration. These bends may not be obvious to the naked eye but will be detectable on a balancing machine.
- Tire Issues: Tires that have developed flat spots from sitting for extended periods can also cause a temporary vibration that may or may not go away as the tires warm up.
Pro Tip: If you experience the 60 mph shimmy, the first step is to have the wheel and tire assemblies professionally road-force balanced. This will often solve the problem or definitively identify a bent wheel or faulty tire.
Finish Durability
Like many alloy wheels from this era, the silver painted finish can be susceptible to curb rash, scratches, and peeling clear coat over time. Exposure to harsh road salts and chemicals can accelerate corrosion, leading to bubbling or flaking paint. While not a structural issue, it significantly impacts the vehicle's appearance.
Recalls and Technical Service Bulletins (TSBs)
As of this writing, there are no specific NHTSA recalls or manufacturer TSBs for the standard 18-inch alloy wheels on the 2002-2010 Lexus SC430.
Symptoms of a Bad or Failing Wheel
A damaged wheel can present several distinct symptoms. Ignoring them can lead to further damage to your tires, suspension, and compromise safety.
- Vibration: A constant vibration or shaking in the steering wheel or through the seat is the most common symptom of a bent wheel.
- Chronic Air Loss: If one tire consistently loses air pressure without any visible puncture, it could be due to a bent or cracked rim that prevents the tire from sealing properly against the wheel bead.
- Vehicle Pulling: A significantly bent wheel can affect your vehicle's alignment, causing it to pull to one side.
- Visible Damage: Obvious signs include cracks (especially near the lug nuts or spokes), bends on the inner or outer lip, and deep gouges.
- Poor Handling: The car may feel 'sloppy' or less responsive, particularly during turns.
Buying a Used OEM SC430 Wheel: An Inspection Guide
Due to the high cost of new OEM wheels, a quality used or remanufactured OEM wheel is the most popular and cost-effective solution. The SC430's sensitivity makes using an OEM part, which guarantees perfect fitment, a smarter choice than some lower-quality aftermarket alternatives that may cause balancing headaches.
Physical Inspection Checklist
- Check for Bends: Lay the wheel on a flat surface. Inspect both the front (outer) and back (inner) lip for any waviness or flat spots. A straightedge can help reveal bends.
- Look for Cracks: Carefully inspect the entire wheel, paying close attention to the area where the spokes meet the rim and around the lug nut holes. Hairline cracks can be hard to see but are a major safety hazard. A cracked wheel should not be used.
- Identify Previous Repairs: Look on the back of the wheel for any tell-tale signs of welding, such as discolored metal or uneven beads. While some weld repairs can be done professionally, they can also indicate a weak spot.
- Examine the Finish: Note any curb rash, deep scratches, or areas where the paint is bubbling or peeling. This is cosmetic but will factor into whether the wheel needs refinishing.
- Center Cap and Lug Holes: Ensure the mounting area for the center cap is not broken. Check that the tapered seats for the lug nuts are clean and not deformed.
Warning: The large, round center cover (Part No. 42603-24240), often called the 'pie plate', is a separate, and very expensive, part. Confirm with the seller if the center cap is included with the used wheel.

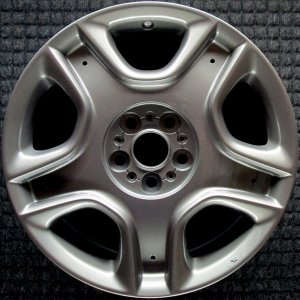

Technical Specifications
When buying a replacement wheel, ensuring these specifications match is critical for proper fitment and safety. Using a wheel with the wrong offset or center bore can cause vibrations, rubbing on suspension components, and undue stress on wheel bearings.
| Specification | Value |
|---|---|
| Vehicle Years | 2002-2010 |
| OEM Part Numbers | 42611-24420, 42611-24470, 42611-24500, 42611-24530 |
| Size | 18" x 8" |
| Bolt Pattern (PCD) | 5x114.3 mm (5x4.5") |
| Offset | +45 mm |
| Center Bore (Hub Bore) | 60.1 mm |
| Lug Nut Thread | M12 x 1.5 |
| Lug Nut Torque | 103 Nm (76 ft-lbs) |
Paint Code and Refinishing
The standard wheel has a silver painted finish. There is no specific, publicly available paint code for the wheel itself. If refinishing is needed to repair curb rash or peeling, a professional wheel repair shop can easily color-match the factory silver. The cost to refinish a single 18-inch wheel typically ranges from $125 to $250, depending on the extent of the damage. Straightening a bent wheel can cost an additional $100-$150.
For body color matching on other parts of your car, the vehicle's paint code is found on a sticker inside the driver's side door jamb.
Cost Comparison: 2002-2010 Lexus SC430 Wheel
| Part Type | Estimated Cost (per wheel) |
|---|---|
| New OEM | $750 - $2,600+ |
| Used OEM | $200 - $450 |
| Remanufactured OEM | $275 - $400 |
| New Aftermarket | $150 - $600+ |
| Shop Labor (Mount & Balance) | $25 - $50 |
Frequently Asked Questions (FAQ)
What is the most common cause of the steering wheel shake in my SC430?
The most common cause is a wheel and tire balance issue. The SC430 is highly sensitive to imbalance, and often requires a special "Road Force" balance to resolve the shimmy that appears around 60 mph. A bent wheel is the second most likely cause.
Will wheels from other Lexus models fit my SC430?
Potentially, yes. Many Lexus models share the 5x114.3 bolt pattern and 60.1 mm center bore. However, the offset is the critical factor. You must ensure the offset of the donor wheel is close to the SC430's stock +45mm to avoid rubbing or handling issues. Always test fit before purchasing.
What happens if I use a wheel with the wrong offset?
Offset determines how far in or out the wheel sits. A wheel with too high of an offset (e.g., +55mm) may sit too far inward and rub against suspension components or the brake caliper. A wheel with too low of an offset (e.g., +30mm) will stick out further, potentially rubbing on the fender and placing extra stress on the wheel bearings.
Is it safe to repair a cracked alloy wheel?
It is strongly advised to replace, not repair, a cracked wheel. While welding a crack is technically possible, it creates a weak point in the wheel's structure. The heat from welding alters the temper of the aluminum alloy, compromising its strength and making it prone to catastrophic failure, especially under the stress of driving.
Technical Specifications
OEM Part Numbers: 4261124420 4261124470 4261124500 4261124530 4260324240 (Center Cap)
Size: 18x8, Bolt Pattern: 5x114.3mm, Offset: +45mm, Center Bore: 60.1mm, Lug Torque: 103 Nm (76 ft-lbs)
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
