2012-2017 Toyota Prius V Wheel: Damage Symptoms, Specs, and Buying Used
This guide covers the critical specifications, common damage signs, and how to inspect a used OEM wheel for your 2012-2017 Toyota Prius V wagon.
- The Prius V (wagon) wheel has a 5x114.3mm bolt pattern and is NOT interchangeable with wheels from standard Prius models, which use a 5x100mm pattern.
- When buying a used wheel, the most critical inspection is for cracks. A cracked wheel is unsafe and must be discarded.
- Symptoms of a damaged wheel include vibration, constant tire pressure loss, and uneven tire wear.
- A bent aluminum wheel can often be repaired by a specialist for $75-$250, which can be more cost-effective than replacement.
Symptoms of a Damaged Wheel
A wheel doesn't "fail" like an electronic part, but it can be damaged by impacts from potholes and curbs. Ignoring wheel damage can lead to more expensive repairs down the road. Here are the common signs of a bent, cracked, or otherwise damaged wheel:
- Vibration or Shaking: This is the most common symptom. You may feel a vibration in the steering wheel at certain speeds if a front wheel is bent, or in the seat if the damage is on a rear wheel. The vibration often gets worse as you increase your speed.
- Constant Loss of Tire Pressure: A bent or cracked wheel can prevent the tire from sealing properly against the rim, causing a slow, persistent air leak. If one tire consistently loses air, the wheel itself may be the culprit.
- Uneven Tire Wear: A damaged wheel can disrupt the vehicle's alignment and balance, causing tires to wear down unevenly or prematurely.
- Vehicle Pulling to One Side: While often an alignment issue, a severely bent wheel can also cause the vehicle to pull to the left or right.
- Visible Damage: Sometimes the damage is obvious. Look for clear dents, cracks, or flat spots along the inner or outer edge of the wheel.
Warning: A cracked wheel is a serious safety hazard. It can fail suddenly, leading to a rapid loss of tire pressure and potential loss of vehicle control. If you see a crack, the wheel must be replaced immediately.
Known Issues, TSBs, and Recalls
As of early 2026, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from Toyota or the National Highway Traffic Safety Administration (NHTSA) related to the wheels on the 2012-2017 Toyota Prius V. Most issues are related to road hazard damage rather than a manufacturing defect. Some owners have reported clunking or knocking noises from the wheel area, but these are typically traced to suspension components like ball joints or sway bar links rather than the wheel itself.
Buying a Used Wheel: What to Look For
A used OEM wheel is often a cost-effective and high-quality alternative to a new dealer part or a cheap aftermarket wheel. OEM wheels are designed specifically for your vehicle's weight and suspension dynamics. Here’s how to inspect a used wheel before you buy:
- Check for Cracks: This is the most critical inspection. Carefully examine the entire wheel, front and back, especially around the spokes and the lip of the rim. A crack means the wheel is unsafe and worthless.
- Look for Bends: Place the wheel on a flat surface and look for any wobbling. Lay a straight edge across the front and back lip of the wheel to check for gaps that would indicate a bend. Even a minor bend can cause vibrations that are impossible to balance out.
- Inspect for Previous Repairs: Look for signs of welding on the backside of the wheel. Welded wheels can be weaker than original, uncracked wheels. Also, check for excessive paint or body filler, which can hide previous damage.
- Examine the Lug Nut Seats: The tapered holes where the lug nuts sit should be clean and free of significant damage or elongation. Damaged seats can prevent the wheel from being torqued down correctly.
- Check the Clear Coat: A failing or peeling clear coat is a cosmetic issue, but it can indicate that the wheel has been exposed to harsh conditions. Refinishing a wheel can be costly, so factor that into the price.
Pro Tip: If possible, ask the seller to put the wheel on a tire balancing machine. This is the best way to spot a bend that isn't obvious to the naked eye.
Compatibility Warning
Important: The wheel for the 2012-2017 Toyota Prius V (wagon) is NOT interchangeable with wheels from the standard Prius, Prius C, or Prius Prime of the same era. The Prius V uses a 5x114.3mm bolt pattern, while other Prius models use a 5x100mm pattern. Attempting to install the wrong wheel will not work and is unsafe.
Technical Specifications
Knowing these specifications is crucial for confirming fitment when buying a replacement wheel.
| Specification | Value |
|---|---|
| OEM Part Numbers | 4261147230, 4261147240 |
| Size | 16" x 6.5" (Standard) or 17" x 7" (Optional) |
| Bolt Pattern | 5 x 114.3mm (also known as 5 x 4.5 inches) |
| Center Bore | 60.1mm |
| Offset | +39mm (16-inch wheel), +45mm or +46mm (17-inch wheel) |
| Lug Nut Torque Spec | 76 ft-lbs |
What is Offset? Offset is the distance from the wheel's mounting surface to its centerline. Using a wheel with the wrong offset can cause tires to rub against the suspension or fenders, and it can put extra stress on wheel bearings, leading to premature failure.

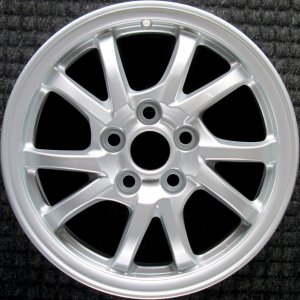

Color and Paint Information
The standard factory wheels for the Prius V have a silver painted finish. While wheels aren't typically color-matched to the body, if you need to find your vehicle's body paint code for other repairs, it's located on a sticker in the driver's side door jamb. The code is typically a three-digit code labeled next to "C/TR".
Cost Comparison
Prices can vary, but this gives a general idea of what to expect when replacing a single wheel.
- New OEM (Dealer): $400 - $550+
- New Aftermarket: $125 - $250
- Used OEM (Recycled): $100 - $225
- Wheel Repair (for bends): $75 - $250
- Shop Labor (Mount & Balance): $15 - $45 per tire
Frequently Asked Questions
Can I use a wheel from a regular Toyota Prius on my Prius V?
No. The Prius V has a 5x114.3mm bolt pattern, while the standard Prius, Prius C, and Prius Prime use a 5x100mm bolt pattern. The wheels are not interchangeable.
Can a bent aluminum wheel be repaired?
Yes, in many cases a bent aluminum wheel can be straightened by a professional wheel repair shop. The cost is typically between $75 and $250. However, cracked wheels should always be replaced, not repaired, as welding can compromise the structural integrity.
What other Toyota models use wheels that fit the Prius V?
Because the 5x114.3mm bolt pattern is common on midsize Toyotas, wheels from some models like the Camry and RAV4 may fit. However, you must verify that the offset and center bore are also compatible to ensure proper and safe fitment.
What tire size fits the standard 16-inch Prius V wheel?
The standard tire size for the 16-inch OEM wheel on the 2012-2017 Toyota Prius V is 205/60R16.
Technical Specifications
OEM Part Numbers: 4261147230 4261147240
Size: 16x6.5, Bolt Pattern: 5x114.3mm, Offset: +39mm, Center Bore: 60.1mm
