2003-2014 Volvo XC90 'Atlantis' Wheel: A Guide to Cracks, Bends, and Finishes
This guide covers the common issues, technical specifications, and inspection points for the 18-inch 'Atlantis' style wheels on the first-generation Volvo XC90.
- The most critical step when buying a used wheel is to inspect it for hairline cracks, especially on the back side; a cracked wheel is unsafe and must be replaced.
- The 'Atlantis' wheel for the 2003-2014 XC90 has a 5x108 bolt pattern, a ~49mm offset, and a 67.1mm center bore.
- Symptoms of a bad wheel include steering wheel vibration, constant air loss in one tire, and the vehicle pulling to one side.
- Used OEM wheels offer the best value, providing factory quality and fit at a much lower cost than a new dealer part. Aftermarket options may compromise on durability.
Symptoms of a Damaged Wheel
A damaged wheel is not just a cosmetic problem; it can be a serious safety issue. Ignoring the signs can lead to tire failure, loss of vehicle control, and damage to suspension components. Here are the most common symptoms of a bent, cracked, or otherwise compromised wheel:
- Vibration or Shaking: The most common symptom is a vibration that can be felt in the steering wheel or through the seats. This vibration often becomes more noticeable at higher speeds.
- Vehicle Pulling to One Side: A bent wheel can disrupt the vehicle's alignment, causing it to pull to the left or right.
- Uneven or Rapid Tire Wear: A deformed wheel changes how the tire contacts the road, leading to bald spots or accelerated wear on the edges of the tire tread.
- Constant Loss of Tire Pressure: A crack or a bend in the wheel's lip can prevent the tire from sealing properly, resulting in a slow, persistent air leak. If one tire consistently needs air while the others don't, the wheel may be the culprit.
- Audible Noises: In some cases, you might hear clunking, thumping, or grinding sounds, especially while turning, which could indicate a serious wheel issue.
Buying a Used 2003-2014 XC90 'Atlantis' Wheel
Purchasing a used OEM wheel is an excellent way to save money while maintaining the original quality and fitment for your XC90. However, a thorough inspection is critical to ensure you're getting a safe, reliable part. 🎬 Watch: Top 5 things to check when buying used wheels Aftermarket wheels may be cheaper, but they often can't match the durability and precise engineering of a factory Volvo wheel.
Inspection Checklist
Always inspect a used wheel in a well-lit area when it is clean. Dirt and brake dust can easily hide serious defects.
- Check for Cracks: This is the most important check. Carefully inspect the entire wheel, front and back, for any cracks. Pay close attention to the areas where the spokes meet the rim and around the lug nut holes. Use a flashlight and look for hairline cracks, which can be hard to spot but are a major safety hazard. A cracked wheel cannot be safely repaired and must be replaced.
- Look for Bends: Lay the wheel on a flat surface to check for bends on both the inner and outer lips (flanges). Roll it on the ground and watch for any wobble. 🎬 See this expert guide on inspecting used wheels before buying Even a minor bend can cause vibrations and prevent the tire from sealing correctly.
- Inspect for Previous Repairs: Look for signs of welding (discolored metal, uneven beads) or excessive grinding. A poorly repaired wheel can be weaker than an original and may fail unexpectedly. Ask the seller directly if any repairs have been performed.
- Assess Cosmetic Condition: Check for deep curb rash, which is scraping damage along the outer edge of the wheel. While minor rash is cosmetic, deep gouges can weaken the wheel's structure. Also, look at the finish. The 'Atlantis' wheel came in chrome and a full polish or silver painted finish. For chrome wheels, look for any signs of peeling, pitting, or bubbling, as this can be expensive to fix.
- Verify Part Numbers and Specifications: If possible, check the back of the wheel for a stamped Volvo part number to confirm it's a genuine OEM part. Ensure the size (18x7) and style match your other wheels.
Known Issues, TSBs, and Recalls
While the first-generation Volvo XC90 has been a reliable vehicle, there are no widespread recalls or Technical Service Bulletins (TSBs) from the NHTSA specifically for cracking or structural failure of the 'Atlantis' alloy wheels. Individual owners on forums have reported occasional cracks, often after hitting a significant pothole.
There was one related safety recall (NHTSA ID: 03V434000) for some 2003 models concerning defective front wheel speed sensors. This sensor can send an incorrect signal, affecting the ABS, transmission, and stability control systems. However, this recall pertains to the sensor attached at the hub, not the wheel itself.
Technical Specifications
Verifying wheel specifications is crucial for ensuring proper fitment and safety. Using a wheel with incorrect specs can lead to rubbing against suspension or fender components, and improper offset can cause premature wear on wheel bearings.
| Specification | Value |
|---|---|
| Vehicle Fitment | 2003-2014 Volvo XC90 |
| Style | 'Atlantis' (6-Spoke) |
| Size | 18 x 7 inches |
| Bolt Pattern (PCD) | 5x108 mm |
| Center Bore (CB) | 67.1 mm (Note: Some sources state 65.1mm. Always test-fit or verify for your specific vehicle) |
| Offset | ~49 mm (Note: OEM offset for this platform generally ranges from +45mm to +55mm) |
| Lug Style | Bolt |
Understanding Wheel Finishes & Paint Codes
The 'Atlantis' wheel was offered in multiple finishes. It's important to correctly identify which version you have to ensure a perfect match.

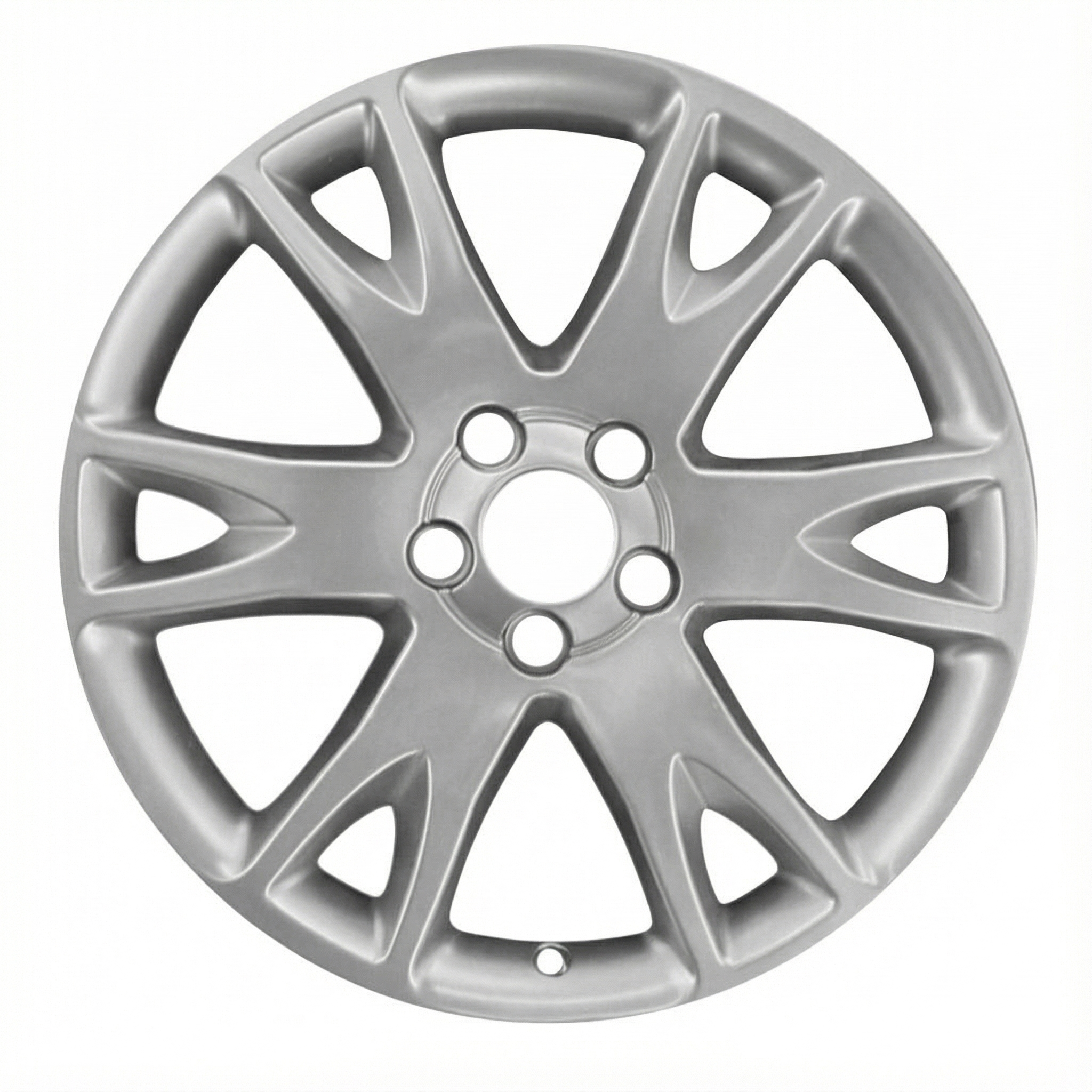

- Chrome Finish: A bright, mirror-like finish. This version is often more expensive and difficult to refinish if damaged.

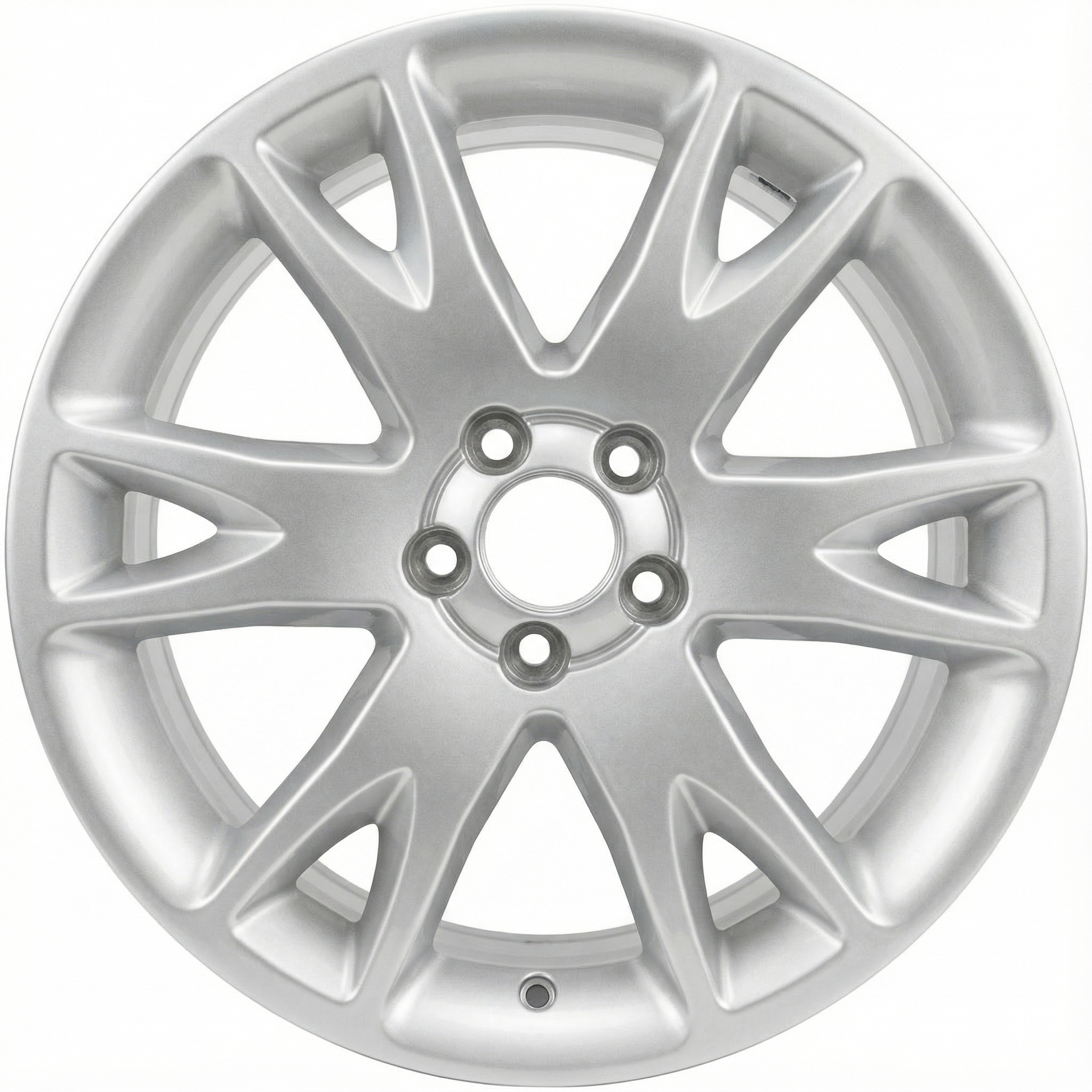

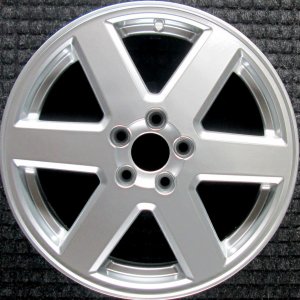

- Full Polish / Silver Painted: A bright silver or painted finish. This is the more common and less expensive variant.
While wheels themselves don't have a paint code, you may need your vehicle's body paint code for other repairs. On the 2003-2014 Volvo XC90, the paint code is found on a black sticker located on the door pillar between the front and rear doors, typically on the passenger side. The code is usually a three-digit number.
Cost Comparison
The cost of replacing a Volvo XC90 wheel can vary significantly based on the source and condition of the part.
Pro Tip: Labor costs for mounting and balancing a tire onto a wheel are separate from the cost of the wheel itself. This service is required any time a tire is removed from a wheel.
| Part or Service | Estimated Cost (per wheel) |
|---|---|
| New OEM (Dealer) | $650 - $1400+ |
| New Aftermarket Replica | $200 - $400 |
| Used OEM (Salvage) | $150 - $450 (depending on finish and condition) |
| Remanufactured/Reconditioned OEM | $250 - $620 |
| Wheel Refinishing (Cosmetic Repair) | $150 - $250 |
| Shop Labor (Mount & Balance) | $20 - $60 |
Frequently Asked Questions (FAQ)
Can a bent or cracked 'Atlantis' wheel be repaired?
A bent aluminum wheel can sometimes be straightened by a professional wheel repair shop, with costs typically starting around $135-$150. However, a cracked wheel should never be repaired; the structural integrity is compromised, making it unsafe to use. It must be replaced.
Will a wheel from a different Volvo model fit my XC90?
Not necessarily. While other Volvos use the same 5x108 bolt pattern, the offset and center bore may be different. Using a wheel with the wrong specifications can cause clearance issues with brakes and suspension, or put stress on the wheel bearings. It is always best to use a wheel specifically designed for the XC90.
Do I need to do anything with my TPMS sensor when replacing a wheel?
Yes. If your XC90 is equipped with a Tire Pressure Monitoring System (TPMS), the sensor needs to be carefully removed from the old wheel and installed in the new one. A tire shop will typically charge a small fee for this service and may recommend a TPMS service kit, which includes new seals and hardware to ensure a proper seal.
What is the difference between a chrome and a polished 'Atlantis' wheel?
A chrome wheel has a layer of chromium electroplated onto the surface, giving it a deep, mirror-like shine. A polished wheel is the bare aluminum alloy buffed to a high shine and then typically covered with a clear coat for protection. Chrome is more brilliant but is prone to peeling if the underlying layers are compromised and is much more expensive to repair than a polished or painted finish.
