2020-2024 Tesla Model Y Rear Window Regulator: Noises, Failures, and Replacement

Symptoms of a Failing Model Y Window Regulator

A failing window regulator in a Tesla Model Y usually gives clear, audible signs. Because the part is inside the door, you will likely hear the problem before you see it. Keep an ear out for these common symptoms.

Grinding or Crunching Noises

The most common symptom is a noise that sounds like grinding plastic or crunching potato chips coming from inside the door when you operate the window. This is often caused by a frayed or broken steel cable bunching up or getting tangled in the pulley wheels of the regulator assembly. Once the cable starts to fray, the failure is imminent.

Window Reversing or Not Closing Properly

If the window goes up part-way and then reverses and goes back down on its own, it can be a sign of a problem. This may happen because the regulator is binding, causing the car's pinch-protection system to think an obstruction is present. While this can sometimes be a simple calibration issue, it can also point to a struggling motor or a damaged regulator track.

Slow Movement or No Movement

If the window moves very slowly, or if you can hear the motor trying to work but the window doesn't move, the regulator has likely failed mechanically. The motor might be functioning, but the connection to the glass (via the cables and clips) is broken. In a complete failure, the glass may become disconnected from the regulator and fall down inside the door.

Software Recall vs. Mechanical Failure (NHTSA 22V-702)

In September 2022, Tesla issued recall NHTSA 22V-702 for over 1 million vehicles, including 2020-2022 Model Ys, for an issue with the automatic window reversal system. The system was not detecting obstructions correctly and could exert too much force before retracting, creating a pinching hazard. This recall was addressed with an over-the-air (OTA) software update and did not require a physical part replacement. If your car exhibits pinch-protection issues, first ensure your vehicle's software is up to date before assuming the regulator is bad.

Buying a Used Window Regulator: What to Check

Purchasing a used OEM window regulator is a smart way to save money without sacrificing quality. Aftermarket options for Teslas are rare and may not meet the precise fitment required for the frameless doors. Here’s what to inspect on a used part.

1. Verify the Part Number: This is the most critical step. The regulator for the rear driver's side door is part number 1495512. However, Tesla uses various suffixes (e.g., -00-D, -00-E, -99-F) to denote revisions. While these are often interchangeable, the safest bet is to match the full part number from your original regulator. The number is found on a sticker on the main assembly.
2. Inspect the Cables and Pulleys: The cable system is the most common failure point. Carefully inspect the steel cables, especially where they wrap around the plastic pulley wheels. Look for any signs of fraying, kinks, or broken strands. Even minor fraying is a red flag.
3. Check the Plastic Guides: Examine all plastic components, especially the clips that attach to the window glass and the small guides for the cables. Ensure they are not cracked, brittle, or broken. These small plastic parts are often the first to fail.
4. Examine the Mounting Points: Ensure the metal frame of the regulator is not bent and that all mounting points are intact. Damage here could indicate the donor vehicle was in an accident, and the part may not align correctly.

Replacement Overview & Difficulty

Replacing the rear window regulator on a Model Y is a moderately difficult task. It involves removing the interior door panel 🎬 See how to safely remove the door panel and glass. and working in a tight space. Tesla's official service documentation notes a flat-rate time of 0.66 hours for the job, though a DIYer should plan for more time.

• Difficulty: 3 out of 5
• Estimated DIY Time: 2 hours
• Common Tools: Trim removal tools, Torx T25 socket, 10mm socket.

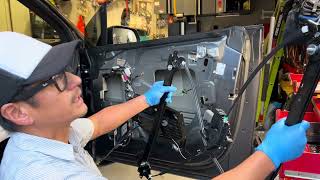

The basic steps involve removing the rear door's interior panel (closeout panel), carefully separating the window glass from the old regulator, swapping the window motor over to the new regulator 🎬 Watch this complete DIY guide to replacing your window regulator., and then installing the new assembly. The regulator itself is attached to the large black closeout panel with several Torx screws.

Mandatory Window Calibration

After replacing the regulator or even just disconnecting the battery, you MUST recalibrate the window. Without calibration, the window will not know its upper and lower limits, and features like auto-up/down and the short drop for opening the door will not work correctly.

There are two ways to do this:

1. Manual Reset: Sit in the driver's seat with the doors closed. Using the switch for the affected window, hold the switch UP until the window is fully closed and stalls. Then, hold the switch DOWN until the window is fully open and stalls. Finally, hold the switch UP again until it is fully closed and stalls. This simple sequence resets the limits.
🎬 Watch a quick demonstration of the window calibration process.
2. Service Mode Reset: For a more robust calibration, you can use the vehicle's touchscreen. Enter Service Mode, then navigate to Controls > Service > Closures > Windows. From there, you can tap a 'Calibrate' button for the specific window, and the car will automatically perform the calibration cycle.

Cost of Replacement

Costs can vary based on your location and whether you perform the labor yourself. A squeaking window on a Model X led to a $272 quote for a regulator replacement from Tesla service, giving a ballpark for dealer pricing. General estimates for regulator replacement are often higher.
