2004-2008 Malibu Wiper Arm Guide: Diagnosing Stripped Splines and Weak Springs
This guide covers the common failure points of the 2004-2008 Chevrolet Malibu windshield wiper arms, what to inspect on a used part, and how to perform the replacement.
- The most common failure is stripped mounting splines; always inspect this area carefully on a used part.
- Wiper arms are side-specific (driver vs. passenger) and are not interchangeable.
- A weak internal spring is a common issue that causes poor wiping, even with new blades.
- A wiper arm puller tool is highly recommended for DIY replacement to avoid damaging the wiper linkage.
Symptoms of a Failing Wiper Arm
When a wiper arm on a 2004-2008 Malibu begins to fail, the symptoms are usually obvious and directly impact visibility. Recognizing these signs early can prevent you from being caught in a storm with non-functional wipers.
- Wiper Doesn't Move, But Motor is Audible: If you can hear the wiper motor running but one or both arms aren't moving, the splines inside the arm's mounting point have likely stripped out. This is the most common failure. The motor shaft spins, but it can no longer grip the inside of the arm to create movement.
- Wiper Blade Lifts Off Windshield: If the wiper blade loses contact with the glass, especially at higher speeds, it indicates the internal spring has weakened. This prevents the arm from applying enough pressure to keep the blade planted.
- Streaking or Chattering: A bent arm or a weak spring can cause uneven pressure on the wiper blade, leading to streaks, missed spots, or a chattering/skipping motion across the glass.
- Wiper Arm is Loose or Wobbly: You may be able to physically wiggle the arm at its base. This points to either a loose mounting nut or, more likely, worn-out splines that no longer provide a tight fit on the pivot shaft.
Known Issues, TSBs, and Recalls
While there are no specific recalls or Technical Service Bulletins (TSBs) for the wiper arms themselves on the 2004-2008 Malibu, it's important to be aware of related issues. Some owners have reported that electrical issues with the Body Control Module (BCM) or the wiper motor can mimic a mechanical arm failure. A recall (14V252000) was issued for a BCM issue on these models that could affect the brake lamps, but it highlights the potential for electrical gremlins. Always confirm the wiper motor is running before assuming the arm is the sole problem.
Pro Tip: Before condemning the wiper arm, lift the plastic cap at its base and check if the retaining nut is tight. Sometimes, it can simply work itself loose over time, causing the arm to stop moving.
Buying a Used 2004-2008 Malibu Wiper Arm: What to Check
Purchasing a used OEM wiper arm is a cost-effective solution, as they are often more durable than cheap aftermarket alternatives. However, a thorough inspection is key to getting a good part.
- Inspect the Splines: This is the most critical check. Look inside the tapered mounting hole at the base of the arm. You should see clean, defined metal grooves (splines). If these grooves are rounded, stripped, or filled with metal shavings, the part is useless and will not grip the wiper pivot shaft.
- Test the Spring Tension: Hold the arm and pull the outer section (where the blade attaches) away from the base, as if you were lifting it off the windshield. It should offer strong resistance. If it feels weak, limp, or pulls away with little effort, the spring is worn out and won't hold the blade against the glass effectively.
- Check for Bends or Cracks: Lay the arm on a flat surface to check for any bends or twists. Even a slight bend can alter the blade's angle and cause poor wiping performance. Inspect the entire arm for stress cracks, especially around the pivot points.
- Verify the Correct Side: The driver (left) and passenger (right) side arms are not interchangeable. They have different lengths and angles to properly sweep their respective sides of the windshield. Ensure you are buying the specific side you need.
Replacement Guide (DIY)
Replacing the wiper arm on a 2004-2008 Malibu is a beginner-friendly task that can be done with basic tools, though one special tool makes it much easier.
- Difficulty: 2 out of 5
- Time: 15-30 minutes
- Tools Needed: Flathead screwdriver, ratchet with socket (typically 15mm), windshield wiper arm puller (highly recommended).
Step-by-Step Instructions:
- Mark the Position: Use a piece of masking tape or a dry-erase marker on the windshield to mark the resting position of the old wiper blade. This ensures you install the new arm in the correct orientation.
- Remove the Cap and Nut: At the base of the wiper arm, use a small flathead screwdriver to gently pry off the plastic cover. Underneath, you will find a retaining nut. Use your ratchet and socket to remove this nut.
- Remove the Arm: The arm is press-fit onto the splined pivot shaft and can be very stubborn. While you can try wiggling it back and forth while pulling up, this risks damaging the wiper transmission. The best method is to use a dedicated wiper arm puller. This tool fits under the arm and pushes down on the center shaft, popping the arm off safely.
- Install the New Arm: Clean the splined pivot shaft with a wire brush. Align the new arm with the mark you made on the windshield and press it down firmly onto the shaft.
- Secure and Test: Reinstall the retaining nut and tighten it securely. Snap the plastic cover back on. Reattach the wiper blade and test the wipers to ensure they operate smoothly and park in the correct position.
Warning: Do not let the spring-loaded arm snap down onto the windshield after the blade is removed, as this can crack the glass. Gently rest it down.
Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM (GM) | $90 - $120 (often discontinued) |
| New Aftermarket | $25 - $50 |
| Used OEM | $20 - $45 |
| Shop Labor | $30 - $55 |
OEM Part Numbers
The wiper arms for the 2004-2008 Malibu are side-specific. Always verify the part number for the side you require.

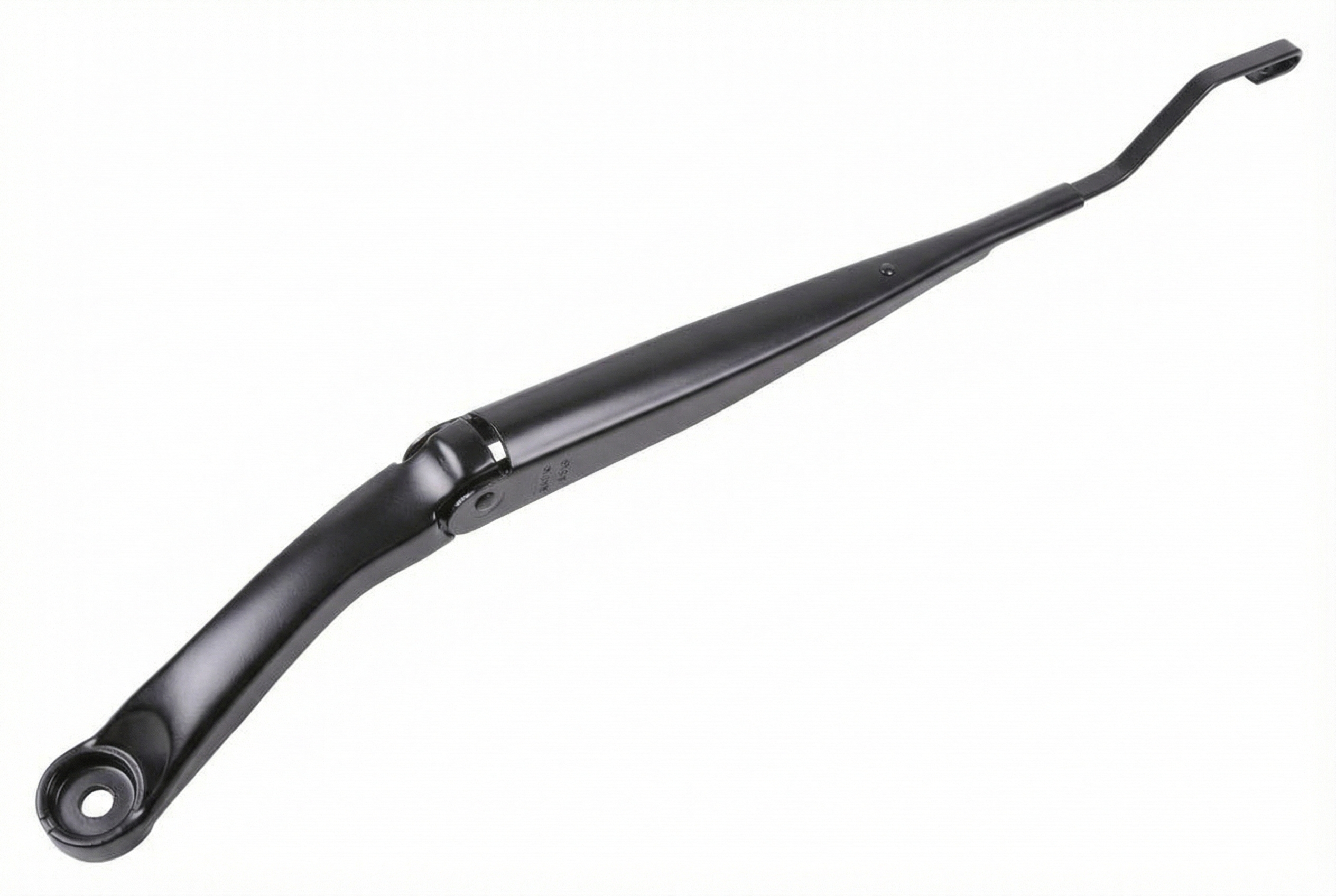

- Driver Side (Left): 15869740 (supersedes 15222665, 22675851)
- Passenger Side (Right): 15869741 (supersedes 22675852)
Frequently Asked Questions (FAQ)
Do I need a special tool to replace the wiper arm?
A windshield wiper arm puller is highly recommended. The arm can become seized onto the splined shaft over time, and trying to force it off by prying or wiggling can damage the more expensive wiper linkage assembly underneath the cowl.
Can I just replace the spring on my old wiper arm?
No, the spring is an integral part of the arm assembly and is not sold separately. If the spring is weak, the entire arm must be replaced.
My wipers move together but are out of sync. Is this the arm?
This is more likely an issue with the wiper linkage (also called the transmission) under the cowl panel. The plastic bushings in the linkage can wear out, causing sloppy or unsynchronized movement. The arms themselves are just the final part of that system.
Why are my new wiper blades still streaking?
If you've installed new, quality blades and they still streak or chatter, the problem is likely the arm. A weak spring or a slightly bent arm will not apply even pressure, preventing the new blade from working correctly.
Technical Specifications
OEM Part Numbers: 15869740 15869741 15222665 22675851 22675852
Side-specific fitment. Driver (Left) and Passenger (Right) arms are different.
