2007-2012 Mazda CX-7 Wiper Arm Failure: Why They Strip and Stop Working

Symptoms of a Failing 2007-2012 Mazda CX-7 Wiper Arm

A failing wiper arm on a Mazda CX-7 can range from a minor annoyance to a serious safety hazard in poor weather. The symptoms are almost always mechanical, not electrical. If you can hear the wiper motor running but one or both wipers aren't moving correctly, the arm is a likely culprit.

1. Wiper Arm Moves Erratically or Not At All

This is the most common and definitive sign of failure for this part. You'll turn on the wipers and hear the motor whirring, but one arm may not move, move only partially, or flop around loosely. This is almost always caused by the soft aluminum splines inside the wiper arm's mounting hole stripping out. The steel splines on the wiper pivot post wear away the aluminum, and the arm can no longer grip the post to be moved.

2. Wipers Chattering or Streaking

If you've already replaced your wiper blades but still experience chattering or significant streaking, the problem may be the arm itself. The internal spring that provides downward pressure can weaken over time. When the spring is weak, it doesn't hold the blade firmly against the glass, causing it to skip, chatter, or leave large unwiped patches.

3. Wiper Arm is Loose or Has Play

You should be able to lift the arm off the glass against its spring tension, but there should be no side-to-side wiggle or play at the base where it mounts. If you can wiggle the base of the arm on its pivot post, the mounting hole is likely stripped or damaged.

Known Issues, Recalls, and TSBs

As of late 2023, there are no specific recalls or Technical Service Bulletins (TSBs) from Mazda or the NHTSA that address the failure of the windshield wiper arms on the 2007-2012 CX-7. The primary known issue, widely reported by owners in forums, is the stripping of the aluminum splines at the pivot point. This is generally considered a wear-and-tear item. The vehicle was subject to recalls for suspension ball joints and Takata airbag inflators, but not for the wiper system.

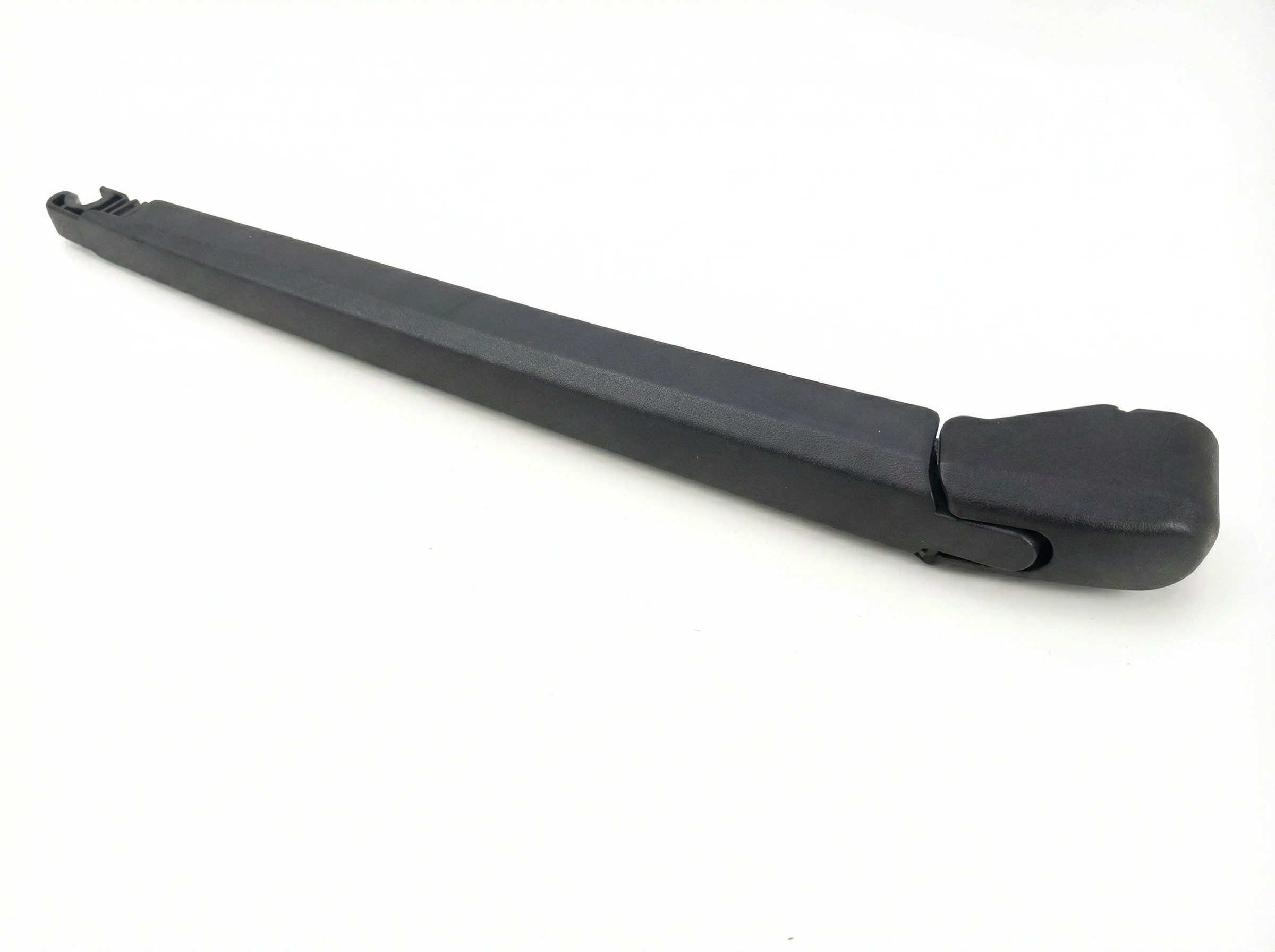

Buying a Used 2007-2012 Mazda CX-7 Wiper Arm

A used OEM wiper arm is an excellent, cost-effective replacement, as long as you inspect it carefully. Aftermarket arms are available, but an OEM part ensures perfect fitment and spring tension.

Key Inspection Points for a Used Arm:

• Inspect the Splines: This is the most critical check. Look inside the round mounting hole at the base of the arm. The splines should be clean, sharp, and well-defined. Reject any arm that has rounded, damaged, or aluminum-filled splines. This is the primary failure point.
🎬 See this video for a close-up look at wiper arm repair.
• Test Spring Tension: Pull the arm open as if you were lifting it off the windshield. It should offer strong resistance and snap back firmly. If it feels weak or limp, the spring is worn out and it won't press the blade against the glass effectively.
• Check for Cracks and Bends: Inspect the entire arm for any signs of bending, stress cracks, or significant rust and corrosion. Pay close attention to the pivot area and the hook where the blade attaches.
• Verify the Correct Side: The driver's side (Left) and passenger's side (Right) arms are different lengths and have different part numbers. They are not interchangeable. Ensure you are buying the correct one for your needs.

Replacement Overview & Difficulty

Replacing the wiper arm on a CX-7 is a straightforward job that most DIYers can complete in under 30 minutes.

• Difficulty: 2/5
• Estimated Time: 0.5 hours
• Tools Needed: Flathead screwdriver, socket set, and a windshield wiper arm puller.

Basic Replacement Steps:

1. Lift the small plastic cap at the base of the wiper arm to expose the retaining nut.
2. Remove the retaining nut (typically 10mm or 14mm).
3. Use a wiper arm puller to safely press the arm off the splined pivot post.
4. Before installing the new arm, clean any debris or aluminum shavings from the pivot post splines with a small pick or wire brush.
5. Press the new arm onto the post, ensuring it is aligned correctly to its "parked" position.
6. Reinstall and tighten the nut, then replace the plastic cap.

Cost Comparison

Prices can vary, but here is a general breakdown of what to expect:
