2018-2025 Equinox, Enclave, Traverse & Acadia Rear Wiper Motor Failure: Symptoms and Replacement

Symptoms of a Failing Rear Wiper Motor

A rear wiper motor rarely fails without warning. Usually, it will exhibit one or more of these symptoms before it stops working completely. Identifying these signs early can help you diagnose the problem correctly. The most common cause of these issues is internal wear and tear or a failure of the motor's electronics.

• Slow or Erratic Movement: The wiper may move across the glass much slower than it used to, even on the highest setting. It might also seem to hesitate or move in a jerky, stuttering motion. This often indicates the motor is getting weak and struggling to move the wiper arm.
• Wiper Won't Park Correctly: When you turn the rear wiper off, it should return to its designated "parked" position at the bottom of the glass. A failing motor might cause the wiper to stop in the middle of the window or wherever it was when you hit the switch. This is often due to a problem with the motor's internal park switch circuit.
• Humming or Grinding Noises: If you turn on the rear wiper and hear a humming, buzzing, or grinding sound from the back of the vehicle but the arm doesn't move, it's a strong sign the motor has power but is internally damaged. The internal gears may be stripped or the motor itself has seized.
• Wiper Doesn't Move At All: The most obvious symptom is a complete failure to operate. When you activate the switch, nothing happens. While this could be a blown fuse or a bad switch, it's frequently caused by a burned-out motor, especially if other symptoms were present beforehand.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

For the specified 2018-2025 Chevrolet Equinox, 2018-2025 Buick Enclave, 2024-2025 Chevrolet Traverse, and 2024-2025 GMC Acadia, there are no active safety recalls or widespread TSBs for the rear wiper motor itself.

However, it's worth noting that previous generations of these vehicle platforms have had wiper-related recalls. For example, some 2014-2015 Equinox and Terrain models were recalled for corroding ball joints in the front wiper transmission (not the motor). Additionally, some 2016 Traverse, Acadia, and Enclave models were recalled for a front wiper motor that could overheat. These past issues on related platforms highlight GM's attention to the wiper systems, but they do not apply to the vehicles covered in this guide.

Buying a Used Rear Wiper Motor

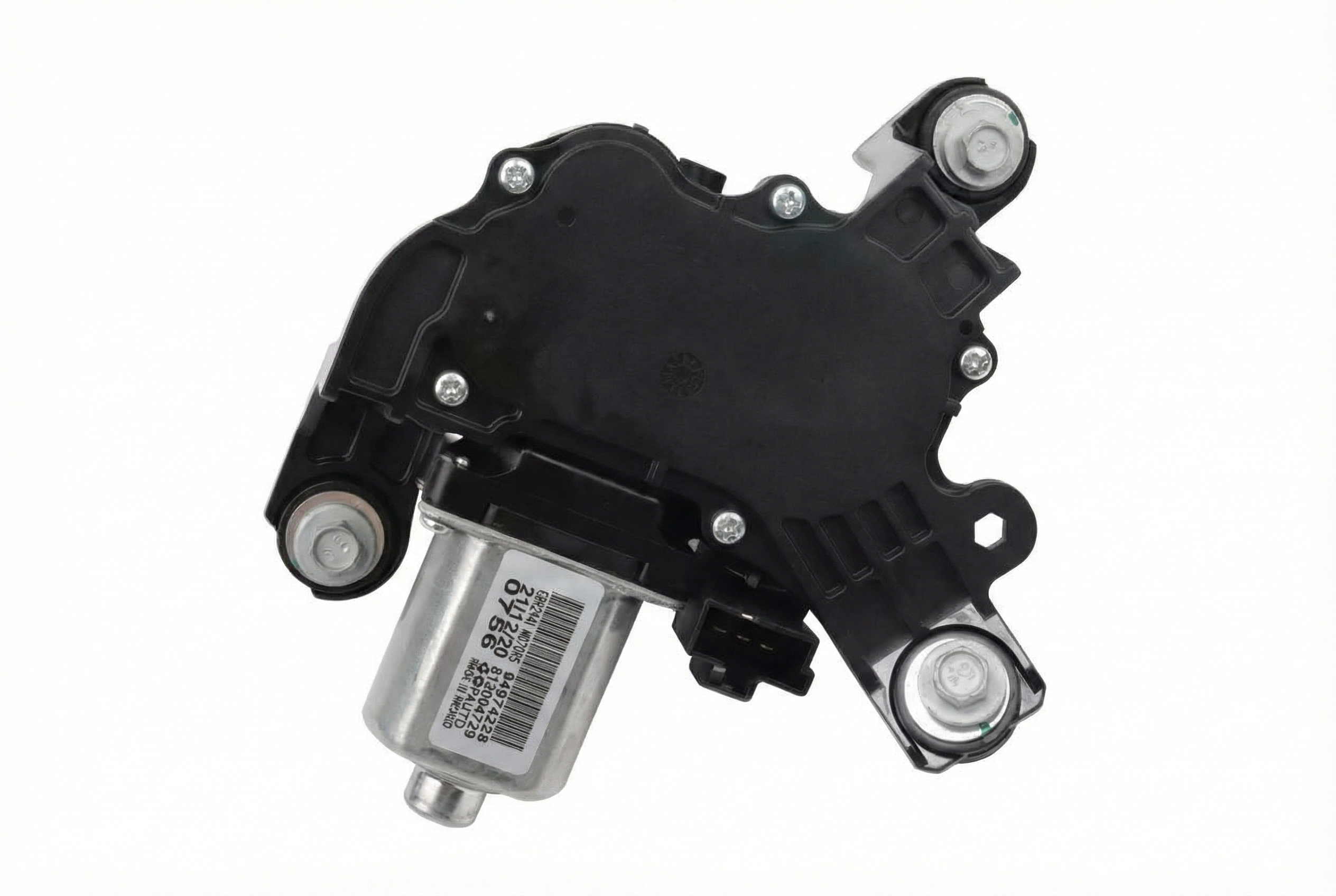

A used OEM rear wiper motor is often an excellent value, providing the same quality and fit as a new part for a fraction of the price. Because this part is located inside the liftgate, it is generally well-protected from the elements. Here’s what to inspect before you buy:

• Check the Part Number: Verify that the part number on the used motor matches one of the known OEM numbers: 23462914, 84269140, 84393314, or the most current number, 84974227.
• Inspect the Electrical Connector: Look closely at the plastic connector and the metal pins inside. The plastic should be free of cracks, and the pins should be clean, straight, and free of any green or white corrosion. A corroded connector is a major red flag.
• Examine the Output Shaft: This is the splined metal shaft that the wiper arm attaches to. Ensure the splines (grooves) are clean and sharp, not stripped or worn down. The shaft should be straight and not bent.
• Ask About the Donor Vehicle: If possible, find out the mileage of the vehicle the motor came from. A motor from a lower-mileage vehicle is always preferable, though these motors are generally durable and can last for many years.
• Why Used OEM is a Good Choice: For a part like this, a recycled OEM motor is often superior to a cheap aftermarket alternative. The fitment is guaranteed, the electrical connector will match perfectly, and the motor's quality meets original factory standards.

Replacement Overview and Difficulty

Replacing the rear wiper motor on these SUVs is a relatively straightforward job that most DIY mechanics can handle.

• Difficulty: 2 out of 5
• Estimated Time: 0.5 - 1.0 hours
• DIY Feasible: Yes

The basic steps involve:

1. Removing the plastic cap and nut that hold the rear wiper arm to the motor's shaft. Carefully remove the wiper arm.
2. Opening the liftgate and removing the large interior plastic trim panel. This is usually held on by clips and may require a plastic trim removal tool to avoid scratching the panel.
3. Locating the wiper motor. Disconnect the electrical harness connector.
4. Unbolting the three bolts that secure the motor to the liftgate frame.
5. Installing the new motor is the reverse of removal.

Cost Comparison

The cost to replace a rear wiper motor can vary, but buying a used OEM part can offer significant savings over a new part from the dealer.
