2012-2022 Honda CR-V Windshield Wiper Motor: Diagnosing Slow, Erratic, or Dead Wipers
This guide covers the distinct front wiper motors used in the 2012-2016 and 2017-2022 Honda CR-V, including common symptoms, part numbers, and replacement costs.
- There are two different front wiper motors for this year range: one for the 2012-2016 models and another for 2017-2022. Verify the OEM part number.
- Symptoms like slow operation, incorrect parking, or only one speed working are strong indicators of motor failure.
- Before replacing the motor, always check the 30-amp wiper fuse in the under-hood fuse box first.
- A used OEM motor assembly is a cost-effective and reliable repair option compared to new aftermarket parts.
Key Differences: 4th Gen (2012-2016) vs. 5th Gen (2017-2022)
The 2012-2022 Honda CR-V spans two different vehicle generations, and they use different front windshield wiper motors. It is critical to get the correct part for your year. The motor is typically sold with the wiper linkage (transmission) as an assembly.
| Generation | Years | Front Wiper Motor OEM Part Number |
|---|---|---|
| 4th Generation | 2012, 2013, 2014, 2015, 2016 | 76505-T0A-A01 |
| 5th Generation | 2017, 2018, 2019, 2020, 2021, 2022 | 76505-TLA-A02 (supersedes 76505-TLA-A01) |

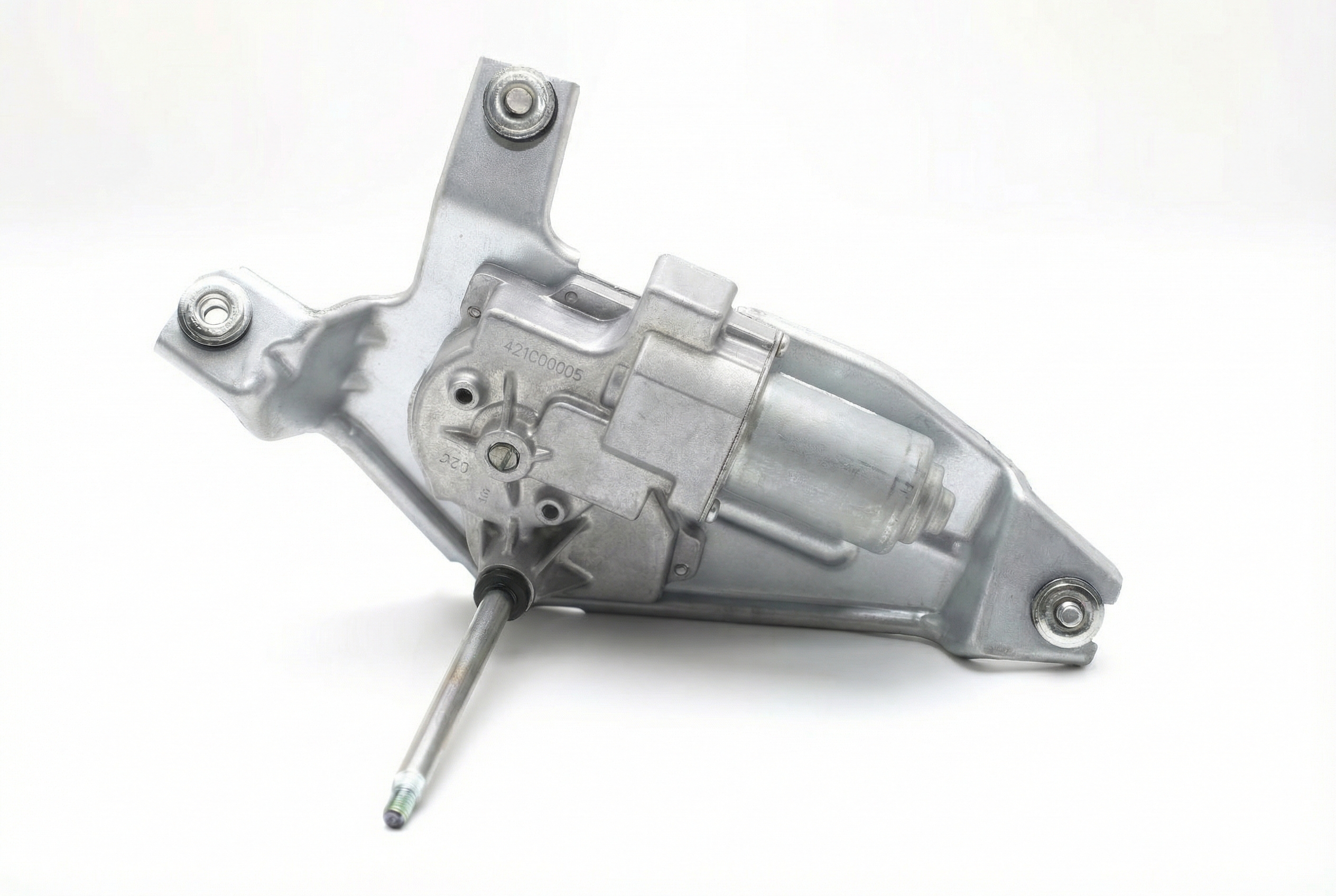

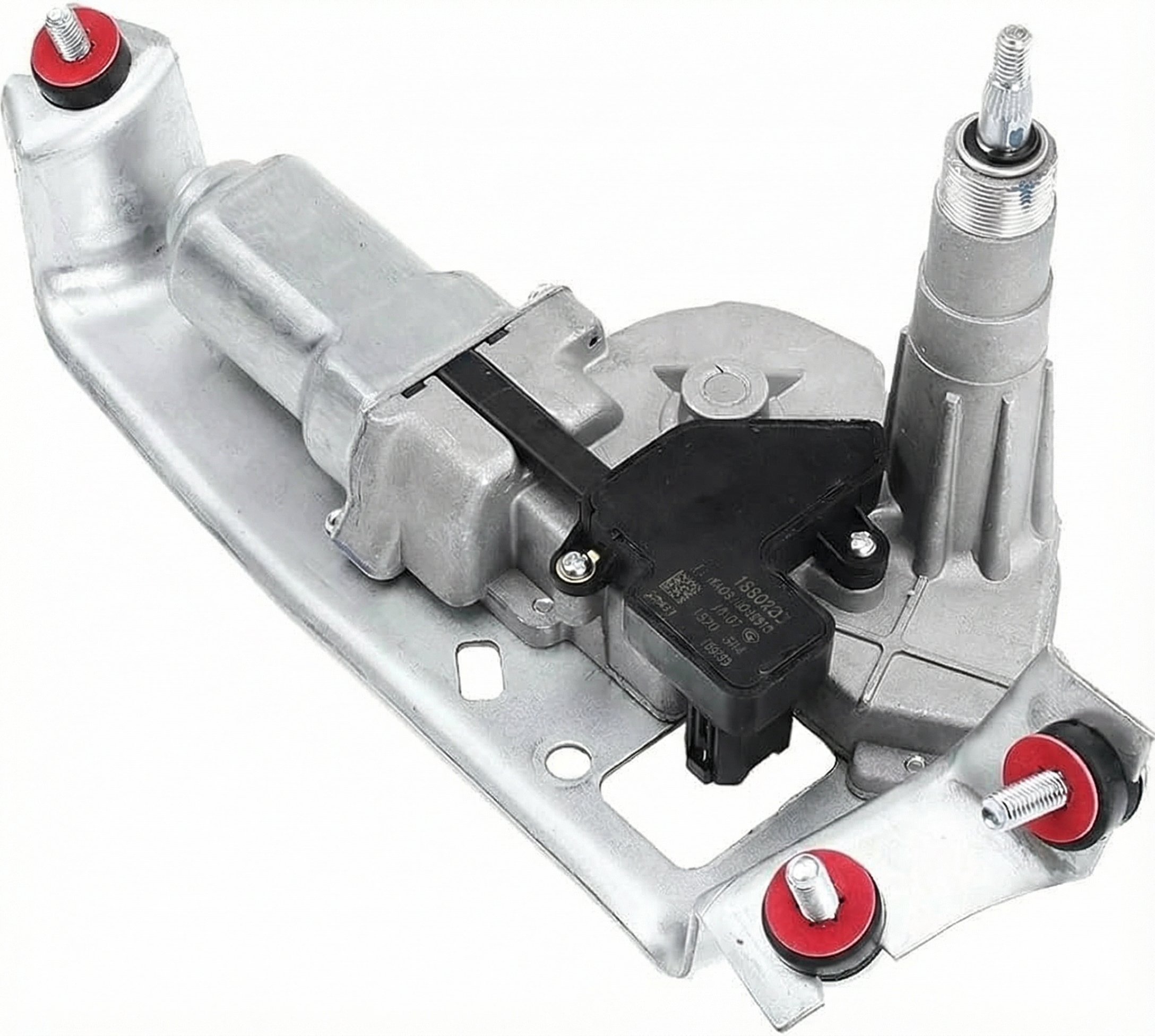

Note: Part numbers 76710-T0A-003 and 76700-TLA-A01 are often confused with the front motor, but they are the OEM part numbers for the REAR wiper motor for the 4th and 5th generations, respectively. This guide focuses on the front windshield wiper motor.
Symptoms of a Failing Windshield Wiper Motor
A bad wiper motor can fail in several ways. Before assuming the motor is bad, always check the wiper fuse first. On the 2012-2016 CR-V, this is a 30-amp fuse located in the under-hood fuse box. If the fuse is good, look for these common symptoms:
- Slow or Sluggish Wipers: The wipers move across the glass much slower than they used to, even on the highest speed setting. This indicates the motor is getting weak.
- Wipers Only Work on One Speed: You might find that only the high-speed setting works, or that all speeds are the same. This often points to a failure in the motor's internal circuitry.
- Wipers Won't Park Correctly: When you turn the wipers off, they stop in the middle of the windshield or in a random position instead of returning to the bottom. This is usually caused by a faulty park switch inside the motor assembly.
- No Movement at All: The wipers don't move when you turn the switch on. You may or may not hear a humming sound from the motor area.
- Humming or Grinding Noises: A distinct electrical humming or mechanical grinding sound coming from the base of the windshield when the wipers are activated is a clear sign the motor is struggling or has a damaged internal gear.
Buying a Used Windshield Wiper Motor
A recycled OEM wiper motor is an excellent alternative to expensive new parts and often more reliable than cheap aftermarket versions. Since these motors are not a high-failure item on the CR-V, a used part from a low-mileage vehicle is a smart buy. Here’s what to inspect:
- Verify the Part Number: Double-check that the motor is from the correct generation CR-V (see the table above).
- Inspect the Electrical Connector: The pins should be straight, clean, and free of any green or white corrosion. A clean connector is a good sign the part was stored properly.
- Check the Output Shaft: This is the splined shaft where the wiper linkage attaches. The splines should be clean and well-defined, not stripped or rusted.
- Examine the Linkage (If Included): Most used motors are sold with the linkage assembly. Check all the pivot points. They should move smoothly but not be loose or sloppy. Seized or excessively worn pivots can put a strain on the new motor.
- Ask About Mileage: Whenever possible, choose a part from a vehicle with the lowest mileage.
Cost Comparison
Prices can vary, but here is a general cost breakdown to help you understand the value of a used OEM part.
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $150 - $250 |
| New Aftermarket | $110 - $200 |
| Used OEM (Recycled) | $75 - $125 |
| Shop Labor for Installation | $100 - $160 |
Replacement Overview
Replacing the wiper motor is a moderately difficult job that a DIYer with basic tools can accomplish in an afternoon.
- Difficulty: 3/5
- Estimated Time: 1.5 - 2 hours
- Tools Required: Ratchet and socket set, trim removal tools, flat-head screwdriver.
- General Steps:
- Mark the 'parked' position of the wiper blades on the windshield with painter's tape.
- Remove the plastic caps at the base of the wiper arms and undo the nuts. Gently pry the wiper arms off their splined posts.
- Open the hood and remove the plastic clips holding the windshield cowl (the plastic trim between the windshield and the hood).
- Carefully remove the cowl to expose the wiper motor and linkage assembly.
- Disconnect the motor's electrical connector.
- Unbolt the entire motor and linkage assembly from the vehicle.
- If your replacement part is just the motor, you will need to unbolt it from the old linkage and transfer it to the new one. In most cases, it's easier to replace the entire assembly.
- Installation is the reverse of removal.
Pro Tip: Before reinstalling the wiper arms, turn the ignition on and cycle the wipers once, then turn them off. This ensures the motor is in the correct 'park' position. Then, align the wiper arms with the tape marks you made and tighten them down.
Frequently Asked Questions (FAQ)
Is there a recall on the 2012-2022 CR-V wiper motor?
No, as of early 2026, there are no specific NHTSA recalls for the front windshield wiper motor on any 2012-2022 Honda CR-V models.
Why do my wipers stop in the middle of the windshield?
This is a classic symptom of a failed 'park' switch within the wiper motor assembly. The motor doesn't know where to stop, so it cuts power as soon as you turn off the switch. The only reliable fix is to replace the motor assembly.
Can I just replace the motor or do I need the linkage too?
You can replace just the motor, but it is often sold as a complete assembly with the linkage (also called the wiper transmission). Buying the complete assembly is often easier and ensures that worn linkage pivots aren't putting extra strain on your new motor. Used OEM parts are almost always sold as a complete assembly.
My wipers don't work, but I hear a humming sound. Is it the motor?
Yes, this is a strong indication that the motor is receiving power but is unable to move. This could be due to a stripped internal gear or a seized wiper linkage. In either case, the motor and/or linkage assembly will need to be replaced.
Why can't I lift my wiper blades off the windshield? They hit the hood.
On some later models, particularly the 5th generation (2017-2022) and newer, the wipers park low under the edge of the hood for aerodynamics. To lift them for cleaning or blade replacement, you must put them into a 'service' or 'maintenance' position by performing a specific sequence with the wiper stalk after turning the car off. Check your owner's manual for the exact procedure to avoid chipping the paint on your hood.
Technical Specifications
OEM Part Numbers: 76505-T0A-A01 (2012-2016 Front) 76505-TLA-A02 (2017-2022 Front) 76505-TLA-A01 (2017-2022 Front, superseded)
12V DC electric motor. Integrated park switch. Designed to work with vehicle's specific wiper linkage.
