Jaguar S-Type, Ford Thunderbird & Lincoln LS Wiper Motor: Symptoms, Costs, and Replacement

Symptoms of a Failing Wiper Motor

A wiper motor on your Jaguar S-Type, Ford Thunderbird, or Lincoln LS will typically show several signs of failure before it stops working completely. Recognizing these symptoms can help you diagnose the problem accurately.

• Slow or Erratic Wiper Speed: The wipers move much slower than usual, even on the highest speed setting. They may also seem to struggle, moving in a jerky or hesitant motion.
• Wipers Only Work on One Speed: Often, a failing motor will only operate on the high-speed setting. This usually points to a problem with the motor's internal resistor or speed control module.
• Wipers Won't Park Correctly: After you turn the wipers off, they stop in the middle of the windshield instead of returning to their resting position at the bottom. This indicates a failure of the internal park switch mechanism.
• No Movement at All: The most obvious symptom is when the wipers don't move at all when you turn them on. Before condemning the motor, it's important to check the fuse first.
• Humming or Grinding Noises: You may hear a distinct humming or grinding sound coming from the base of the windshield when the wipers are activated, but the arms don't move. This often means the motor is receiving power, but its internal gears are stripped or the wiper linkage is seized.

Known Issues, Recalls, and Compatibility Warnings

While these vehicles share a common platform and this wiper motor, there are crucial compatibility differences and known issues to be aware of before purchasing a replacement.

Vehicle-Specific Recalls and TSBs

As of early 2026, there are no specific NHTSA recalls for the windshield wiper motor on the 2000-2008 Jaguar S-Type, 2002-2005 Ford Thunderbird, or 2000-2002 Lincoln LS. Recalls for wiper motors on other Ford, Lincoln, and Jaguar models do not apply to these vehicles.

Compatibility Warnings

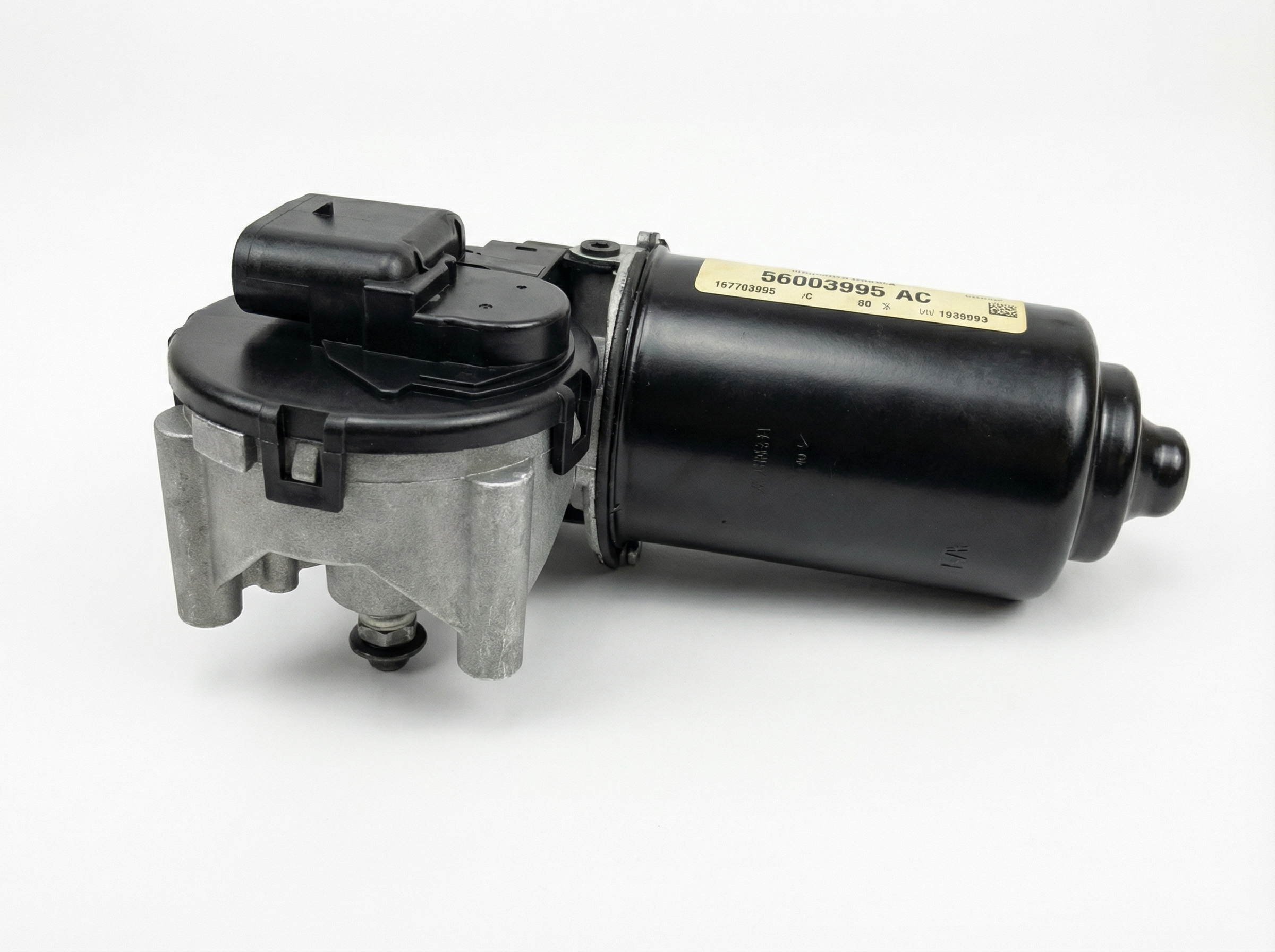

Buying a Used Windshield Wiper Motor: What to Check

A used OEM wiper motor is an excellent, cost-effective alternative to expensive new parts or potentially unreliable aftermarket units. A forum member with a 2002 Thunderbird reported that a new aftermarket motor was defective and failed under load, forcing them to buy a genuine Motorcraft part instead. Here’s what to inspect on a used motor:

• Electrical Connector: Carefully inspect the plastic connector housing and the metal pins inside. Look for any signs of green or white corrosion, melted plastic, or bent/broken pins. A clean connector is crucial for proper function.
• Output Shaft and Splines: Check the splined metal shaft where the wiper linkage attaches. The splines should be clean and well-defined, not stripped or rusted away. This is where the motor's torque is transferred to the wiper arms.
• Casing and Seals: Look for any major cracks in the motor's housing. While some surface rust is normal for a part of this age, deep, flaking rust could indicate that water has gotten inside and damaged the internal components.
• Ask for Mileage: When possible, choose a motor from a vehicle with lower mileage. This increases the chances of a longer service life.

Cost of Replacement: New vs. Used

The cost to replace this wiper motor varies significantly between the Jaguar and its Ford/Lincoln counterparts, primarily due to differences in labor time and OEM part pricing.

Diagnosing a Faulty Wiper Motor

If your wipers don't work at all, don't assume the motor is dead. Follow these steps to confirm the diagnosis:

1. Check the Fuse: The first step is always to check the fuse for the wiper circuit. Consult your owner's manual for the location of the fuse box and the correct fuse to inspect.
2. Listen for the Motor: Turn the ignition on and activate the wipers. If you hear a humming or clicking sound from the cowl area, the motor is getting power. The problem is likely a stripped internal gear or a seized/broken wiper linkage.
3. Test for Power at the Connector: If you hear nothing, the problem could be the motor, the wiper switch, or the wiring. Access the motor's electrical connector under the cowl. Using a test light or multimeter, check for power at the appropriate pins when the wiper switch is turned on. You should also test the ground wire to ensure it has a good connection. If power and ground are present at the connector but the motor doesn't run, the motor itself has failed.

Replacement Guide (Overview)

Replacing the wiper motor is a moderately difficult job that a DIY mechanic can typically accomplish in 1-3 hours. The basic steps are similar for all three vehicles, but there are important vehicle-specific differences.

1. Disconnect the Battery: Always disconnect the negative battery terminal for safety.
2. Remove Wiper Arms: Pry off the plastic caps at the base of the wiper arms and remove the nuts (typically 13mm or 14mm). The arms can be stuck on the splined posts; gently rocking them or using a dedicated wiper arm puller tool is recommended to avoid damage.
3. Remove the Cowl Panel: Remove the plastic cowl panel at the base of the windshield. This is usually held on by several clips and screws.
4. Access the Motor and Linkage: You will now see the wiper motor and the attached linkage assembly.
5. Vehicle-Specific Steps:
   • Ford Thunderbird: Owners report that the entire wiper assembly can be difficult to remove because it is blocked by the power brake booster. A successful method is to first unbolt the motor from the linkage assembly while it's still in the car. This provides enough clearance to remove the linkage first, and then the motor.

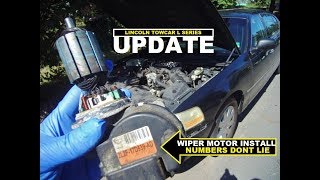

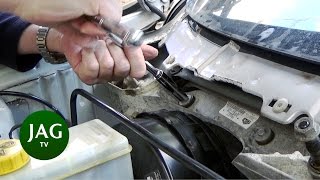

   • Jaguar S-Type / Lincoln LS: 🎬 Watch this step-by-step Jaguar S-Type wiper motor replacement guide. The process is generally more straightforward. Disconnect the 🎬 See a mechanic install a new motor on a Lincoln. electrical plug, unbolt the linkage arm from the motor's output shaft, and then remove the three bolts holding the motor to the firewall.
6. Installation: Install the new motor in the reverse order of removal. Before reinstalling the cowl and wiper arms, it's a good idea to temporarily reconnect the battery and cycle the wipers on and off once. This ensures the motor is in its 'park' position, allowing you to align the wiper arms correctly.

Frequently Asked Questions (FAQ)

Part Number and Compatibility Guide

This part was shared across Ford's DEW98 platform. The following OEM part numbers are known to be interchangeable. Always verify the part number and your vehicle's options before ordering.
