2002-2012 Jeep Liberty & 2007-2011 Dodge Nitro Wiper Motor Failure: Recalls and Repair

Symptoms of a Failing Wiper Motor

A failing windshield wiper motor on a 2002-2012 Jeep Liberty or 2007-2011 Dodge Nitro will typically show clear signs of a problem. Recognizing these symptoms early can prevent you from being caught in a storm with no visibility.

• Slow or Erratic Wiper Speed: The wipers may move much slower than usual, even on the highest setting. They might also stutter, hesitate, or move erratically across the windshield. This can indicate a weak motor or internal wear.
🎬 Watch: 6 symptoms of a bad wiper motor and testing tips
• Wipers Only Work on One Speed: You may find that only the high-speed setting works, or that all speeds are the same. This often points to a problem with the motor's internal resistors or the control module.
• Wipers Won't Park Correctly: When you turn the wipers off, they should return to the bottom of the windshield. If they stop in the middle of the glass or in a random position, the internal park switch has likely failed.
• Humming or Grinding Noises: An audible humming, buzzing, or grinding sound from the base of the windshield when the wipers are activated suggests the motor is receiving power but is struggling to move the linkage. This could be a sign of a failing motor or seized linkage pivots.
• Wipers Don't Move at All: The most obvious symptom is a complete failure to operate. Before condemning the motor, it's important to check the fuse first. If the fuse is good, the motor itself is the likely culprit.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Both the Dodge Nitro and Jeep Liberty have been subject to safety recalls for issues related to the front windshield wiper system. These are the most significant known problems for these specific vehicles.

2007 Dodge Nitro Wiper System Recall

NHTSA Campaign ID: 09V438000
Chrysler Recall Number: J28

Chrysler issued a recall for certain 2007 Dodge Nitro vehicles because the windshield wiper system could fail. The issue was that high usage of the intermittent or "delay" mode could eventually cause the primary wiper function to become inoperable, leading to a sudden loss of visibility in bad weather. The remedy involved dealers inspecting the Totally Integrated Power Module (TIPM) and, if necessary, adding external relays and updating the TIPM software to properly control the wiper functions.

2008 Jeep Liberty Wiper Motor Recall

Chrysler Recall Number: K24

A recall was issued for approximately 12,000 Jeep Liberty vehicles built between May 19, 2008, and June 28, 2008. The wiper motors on these vehicles may have been manufactured with excess adhesive that could allow water to get inside. This water intrusion could lead to intermittent operation and eventual failure of the wiper motor. The solution was for dealers to replace the entire windshield wiper motor assembly free of charge.

Step-by-Step Diagnosis

If your wipers are not working, follow these steps before replacing parts:

1. Check the Fuse: This is the first and easiest check. Locate the fuse box and find the fuse for the windshield wipers. If it's blown, replace it with a new fuse of the same amperage. If the new fuse blows immediately, there is a short circuit in the system.
2. Listen for the Motor: Turn the ignition on (without starting the engine) and activate the wipers. Listen carefully at the base of the windshield. If you hear a humming sound, the motor is getting power but is likely seized or the linkage is jammed. If you hear nothing, the problem is likely electrical.
3. Test for Voltage: If the fuse is good and the motor makes no noise, the next step is to test for power at the motor itself. This requires a multimeter. 🎬 See how to diagnose a non-functioning wiper motor with a multimeter Disconnect the electrical connector at the wiper motor. Set your multimeter to DC volts. With the wiper switch turned on, connect the multimeter probes to the power and ground pins on the connector (not the motor). If you read approximately 12 volts, the motor is receiving power and has failed internally. If you do not read any voltage, the problem is upstream in the wiring, the wiper switch, or the vehicle's main computer (TIPM).

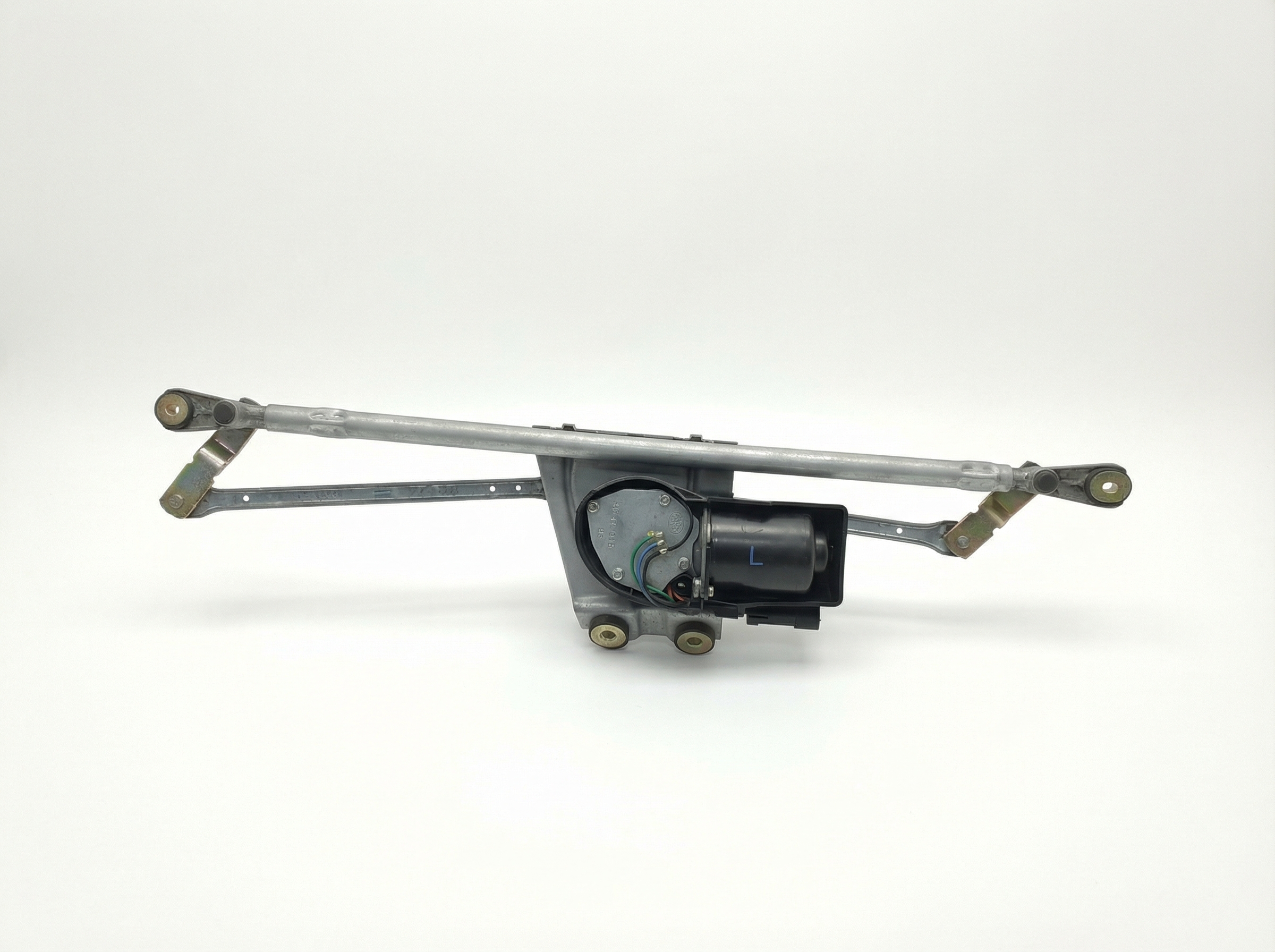

Buying a Used Windshield Wiper Motor

A used OEM wiper motor assembly can be a cost-effective and reliable alternative to expensive new parts or lower-quality aftermarket units. Here’s what to look for:

• Why Used OEM is a Good Choice: Original Equipment Manufacturer (OEM) parts are designed specifically for the vehicle, ensuring perfect fitment of the mounting points and electrical connectors. Aftermarket parts can sometimes have universal designs that require adapters or may be made from lower-quality materials that don't last as long. A low-mileage used OEM part is often a higher quality component than a brand new, cheap aftermarket alternative.
• Physical Inspection: Before buying, inspect the entire assembly. Look for any signs of rust or corrosion on the motor housing and linkage arms. Check the plastic bushings at the linkage pivot points; they should be intact and not cracked or crumbling. Ensure the electrical connector is clean, with no bent or corroded pins.
• Check the Linkage: Manually move the linkage arms back and forth. They should move smoothly with some resistance but without any binding or excessive looseness. Any grinding or significant play in the pivots could indicate wear that will lead to noisy or sloppy wiper operation.
• Verify Compatibility: Ensure the part comes from a compatible vehicle (2002-2012 Jeep Liberty or 2007-2011 Dodge Nitro). While the parts are shared, it's always best to match OEM part numbers if possible. Remember that this assembly is for Left-Hand-Drive (LHD) models common in North America and will not fit Right-Hand-Drive (RHD) vehicles.

Cost Comparison

Prices can vary based on location and supplier, but this table provides a general estimate for replacing the wiper motor assembly.

Installation Guide and Difficulty

Replacing the front wiper motor and linkage assembly is a moderately difficult job that a patient DIYer can accomplish in about 1 to 2 hours.

Difficulty Rating: 3 out of 5

General Steps:

1. Disconnect the Battery: Always disconnect the negative battery terminal before working on electrical components.
2. Mark and Remove Wiper Arms: Use masking tape to mark the "parked" position of the wiper blades on the windshield. This will help with reinstallation. Pry off the plastic caps at the base of the wiper arms and remove the retaining nuts (typically 13mm or 15mm). The arms may be stuck on the splined pivots; a special wiper arm puller tool may be needed to remove them without damage.
3. Remove the Cowl Panel: The plastic panel at the base of the windshield, known as the cowl, must be removed to access the wiper assembly. 🎬 Watch this complete teardown of the cowl and wiper motor removal This usually involves removing several plastic clips and screws.
4. Disconnect and Unbolt the Assembly: With the cowl removed, the entire wiper motor and linkage assembly is visible. First, disconnect the electrical harness from the motor. Then, remove the bolts (typically three) that secure the assembly to the vehicle's firewall.
5. Install the New Assembly: Carefully maneuver the old assembly out and the new one in. Bolt the new assembly in place, reconnect the electrical connector, and then reinstall the cowl panel and wiper arms. Before tightening the wiper arm nuts, ensure the arms are aligned with your tape marks.
