2007-2012 Mazda CX-7 Windshield Wiper Motor: Symptoms, Diagnosis, and Replacement Guide

Symptoms of a Failing Windshield Wiper Motor

When the wiper motor on your Mazda CX-7 begins to fail, it will usually provide several warning signs. Recognizing these symptoms early can help you diagnose the problem before you're caught in a storm with no visibility.

Most Common Symptoms:

• Wipers are slow or erratic: The wipers may move much slower than usual, or their speed might change unpredictably. This often points to a weakening motor or an internal electrical issue.
• Wipers only work on one speed: You might find that only the high-speed setting works, while the slower, intermittent settings have failed. This can indicate a problem with the motor's internal speed control module.
• Wipers won't park in the correct position: When you turn the wipers off, they should return to their resting position at the bottom of the windshield. A faulty motor may cause them to stop randomly in the middle of the glass.
• Wipers don't move at all: The most obvious symptom is a complete failure to operate. When you turn the switch on, nothing happens. This could be the motor, but it's important to check the fuse first.
• Humming or buzzing noise: You may hear a humming sound from the base of the windshield when the wipers are activated, but the arms don't move. This suggests the motor is receiving power but is unable to move, possibly due to an internal mechanical failure or a seized wiper linkage.

Known Issues, TSBs, and Recalls

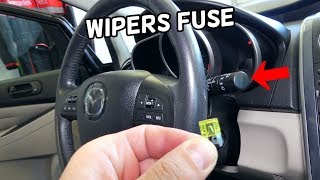

As of this writing, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from Mazda directly addressing the windshield wiper motor for the 2007-2012 CX-7. However, general problems with wiper systems often start with simple electrical issues. Always check the fuse first before assuming the motor has failed. 🎬 See a professional demonstration on how to test the motor. A blown fuse is the easiest and cheapest fix. The fuse for the wipers is typically a 20-amp fuse located in the interior fuse box 🎬 Watch this video to find the exact wiper fuse location. by the steering wheel.

While not wiper-related, it's worth noting that this generation of CX-7 was subject to recalls for lower control arm corrosion and Takata airbag inflators. It is always wise to check if your specific vehicle has had these recall services performed.

Diagnosing the Problem

Before replacing the motor, follow these steps to confirm it's the source of the problem:

1. Check the Fuse: Locate the interior fuse panel and inspect the 20A fuse for the wipers. If it's blown, replace it and test the wipers. If it blows again, there's likely an electrical short in the motor or wiring.
2. Listen for the Motor: Turn the ignition on and activate the wipers. Stand outside the vehicle near the cowl (the plastic panel at the base of the windshield) and listen for a humming sound. If you hear a hum but the wipers don't move, the motor is getting power but is likely seized or the linkage is broken. If you hear nothing, the problem could be the switch, relay, or the motor itself.
3. Test for Voltage: For more advanced DIYers, you can disconnect the motor's electrical connector and use a multimeter to check for 12-volt power when the wiper switch is activated. If you have power and ground at the connector but the motor doesn't run, the motor has failed.

Buying a Used Windshield Wiper Motor

A used OEM wiper motor is an excellent, cost-effective alternative to expensive new parts. Because these motors are generally reliable, a good-condition used unit from a lower-mileage vehicle can provide many years of service. Here’s what to inspect:

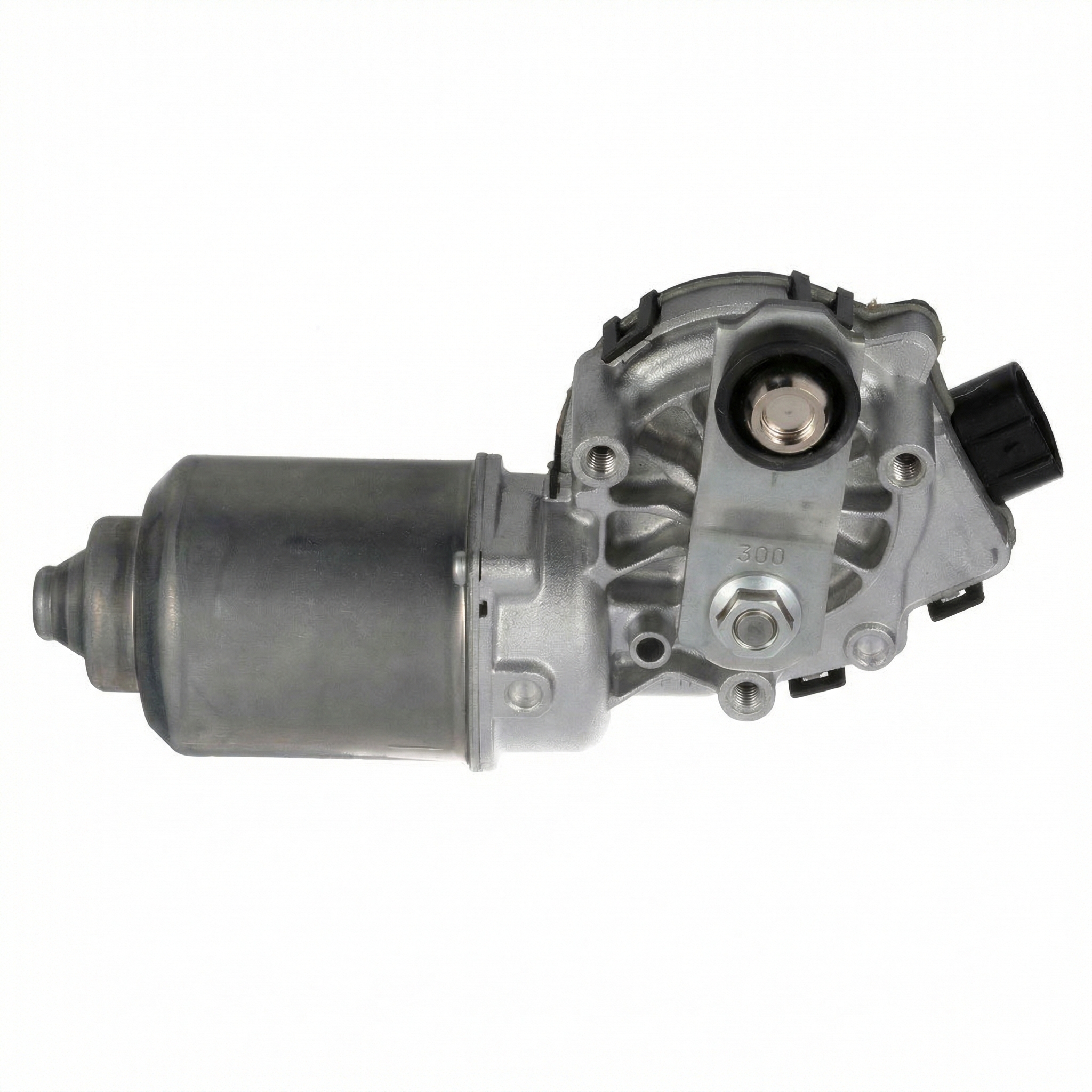

• Verify Part Number: The most reliable way to ensure compatibility is to match the OEM part number. The primary part number for the 2007-2012 Mazda CX-7 front wiper motor is EG21-67-340.
• Inspect the Electrical Connector: Look closely at the electrical pins in the connector. They should be clean, straight, and free of any corrosion or signs of overheating (discolored or melted plastic).
• Check the Output Shaft: The splined shaft where the wiper linkage attaches should be in good condition, not stripped or rusted. Ensure there are no cracks in the motor housing around the shaft.
• Ask About the Donor Vehicle: If possible, get the mileage of the vehicle the part came from. Lower mileage is always better. Also, ask if the part was tested before being removed.
• Look for Physical Damage: Inspect the motor's casing for any cracks, heavy corrosion, or signs that it has been tampered with. Avoid parts that look like they've been sitting in water.

Choosing a used OEM motor over a cheap aftermarket alternative often means better build quality, a perfect fit, and the durability the vehicle was designed with.

Replacement Overview

Replacing the wiper motor on a Mazda CX-7 is a moderately difficult job that a confident DIYer can handle in about 1-2 hours.

Difficulty: 3 out of 5

Estimated Time: 1.5 hours

General Steps:

1. Mark Wiper Position: Use masking tape on the windshield to mark the parked position of the wiper blades. This is crucial for correct reinstallation.
2. Remove Wiper Arms: Pop the plastic caps at the base of the wiper arms and remove the nuts. The arms are on a splined shaft and may be tight. Gently rocking them or using a specialized wiper arm puller tool can help free them.
3. Remove the Cowl Panel: Remove the plastic clips and seals holding the cowl panel (the plastic trim at the base of the windshield) in place. Carefully lift the cowl off to expose the wiper motor and linkage assembly.
4. Disconnect and Remove the Motor: Unplug the electrical connector. Unbolt the wiper linkage from the motor's output shaft. Then, remove the bolts holding the motor to the vehicle's firewall and lift it out.
5. Installation: Installation is the reverse of removal. 🎬 Follow this step-by-step video guide for the full replacement process. Before installing the new motor, it's a good idea to plug it in and cycle the power once to ensure it stops in its own "park" position. Transfer the linkage to the new motor, bolt it in place, and reassemble everything. Lubricating the linkage pivot points is recommended.

Cost Comparison

Prices can vary based on location and supplier, but here is a general cost breakdown for a 2007-2012 Mazda CX-7 front wiper motor:
